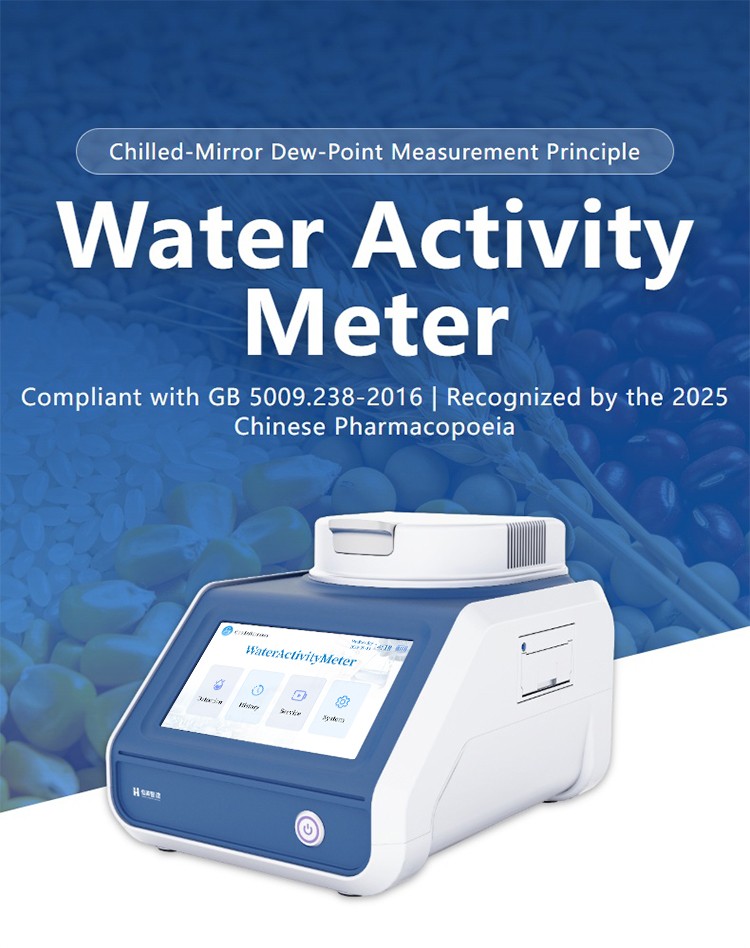

Benchtop Chilled-Mirror Water Activity Meter

Product Overview

Water activity (aw) quantifies the chemical potential of free water available for microbial proliferation, chemical hydrolysis, and enzymatic reactions in perishable commodities. In food safety preservation, grain warehousing, pharmaceutical formulation, and cosmetic compounding, total moisture content alone fails to predict spoilage susceptibility. The HM Instruments AW-M1 Benchtop Chilled-Mirror Water Activity Meter provides laboratory-grade water activity determinations based on true thermodynamic moisture equilibrium.

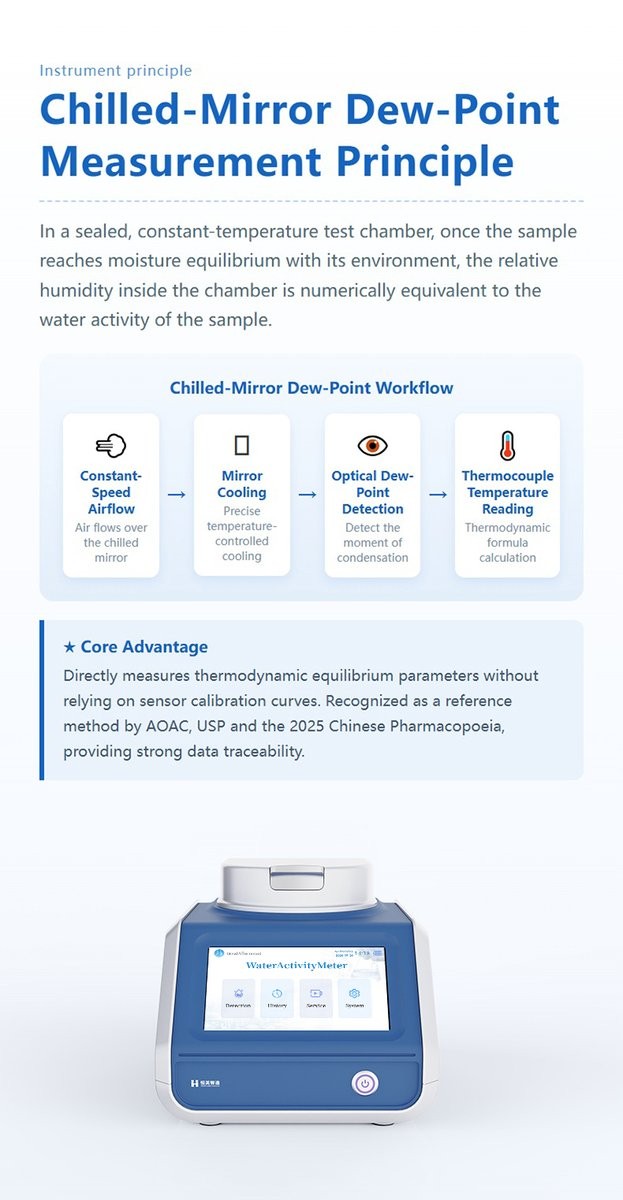

Unlike resistive electrolytic or capacitive sensors that require frequent recalibration against variable chemical humidity curves, the AW-M1 chilled-mirror system measures the fundamental dew-point temperature directly. Within the hermetically sealed sample chamber, air circulates over an actively regulated mirror surface. Precision optics pinpoint dew formation, while thermocouple sensors record the exact condensation temperature, calculating water activity via fundamental physical thermodynamic laws. This method is designated as the primary reference standard by AOAC, USP, and the 2025 Edition of the Chinese Pharmacopoeia, ensuring undisputed audit compliance for industrial quality control.

Key Features

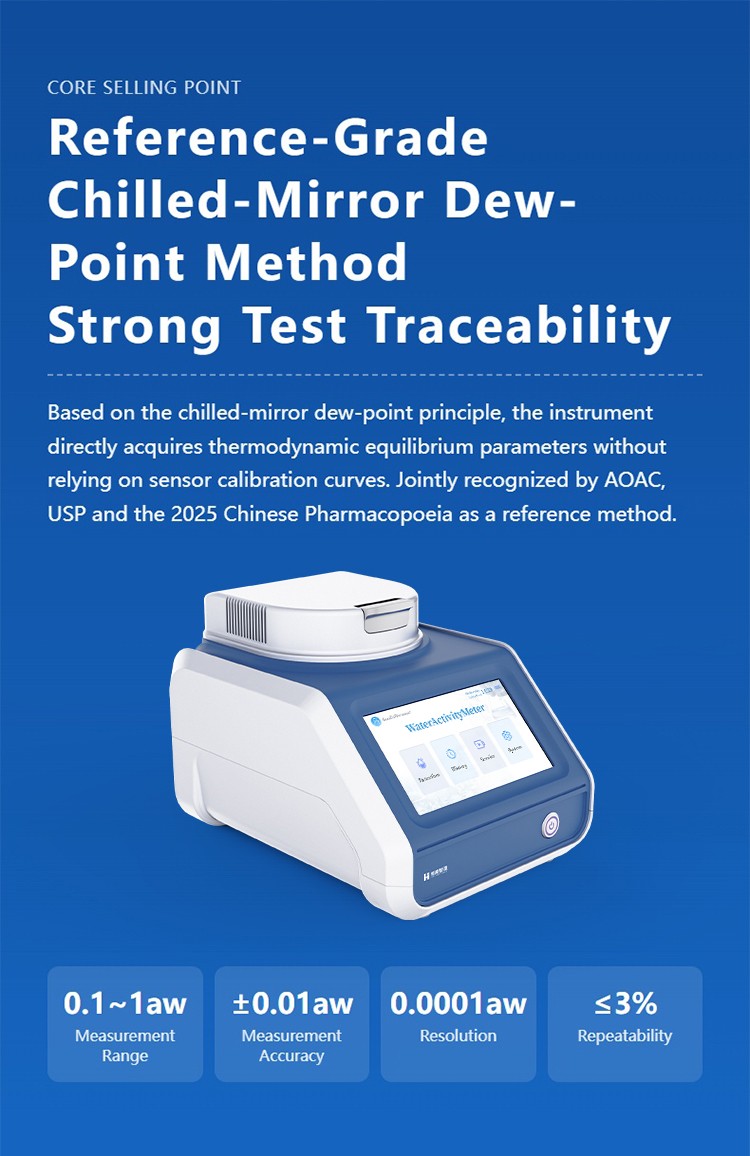

• Reference Chilled-Mirror Measurement: Direct physical measurement of thermodynamic equilibrium water vapor pressure eliminates sensor drift, offering long-term stability and absolute accuracy of ±0.01 aw.

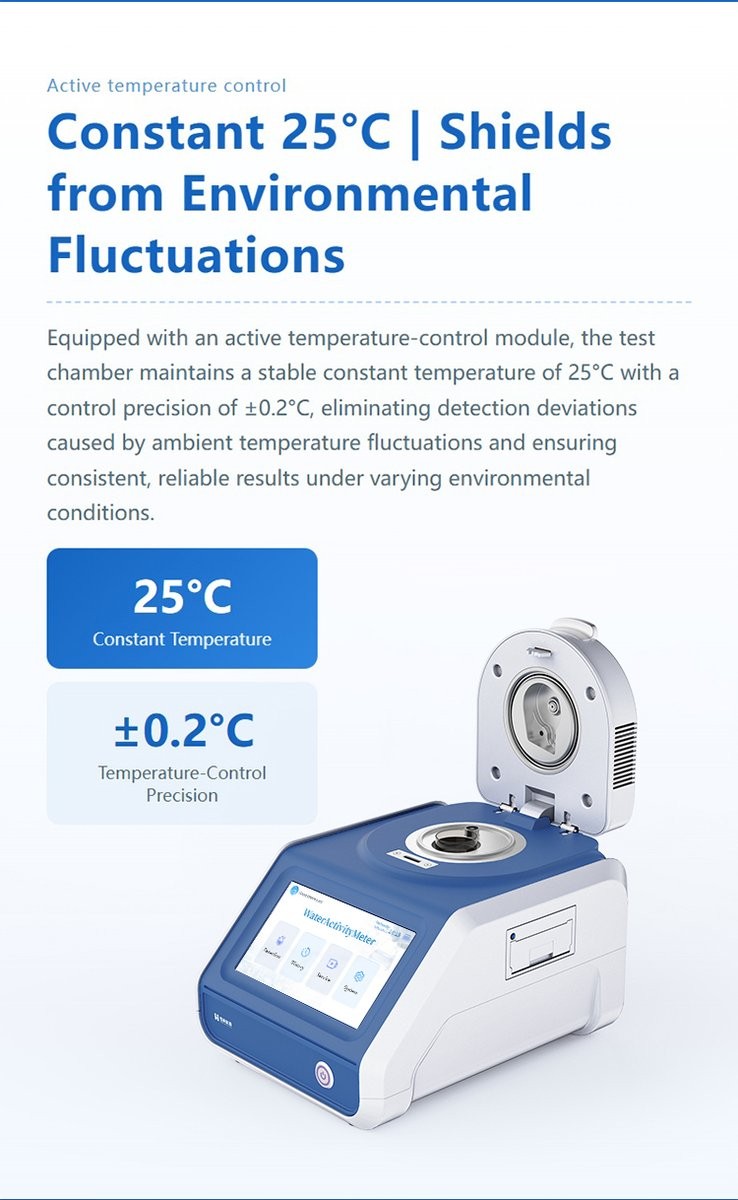

• Active 25°C Isothermal Regulation: Built-in Peltier heating/cooling element controls sample temperature at standard 25°C with ±0.2°C precision, guaranteeing reproducible test results independent of external facility climate swings.

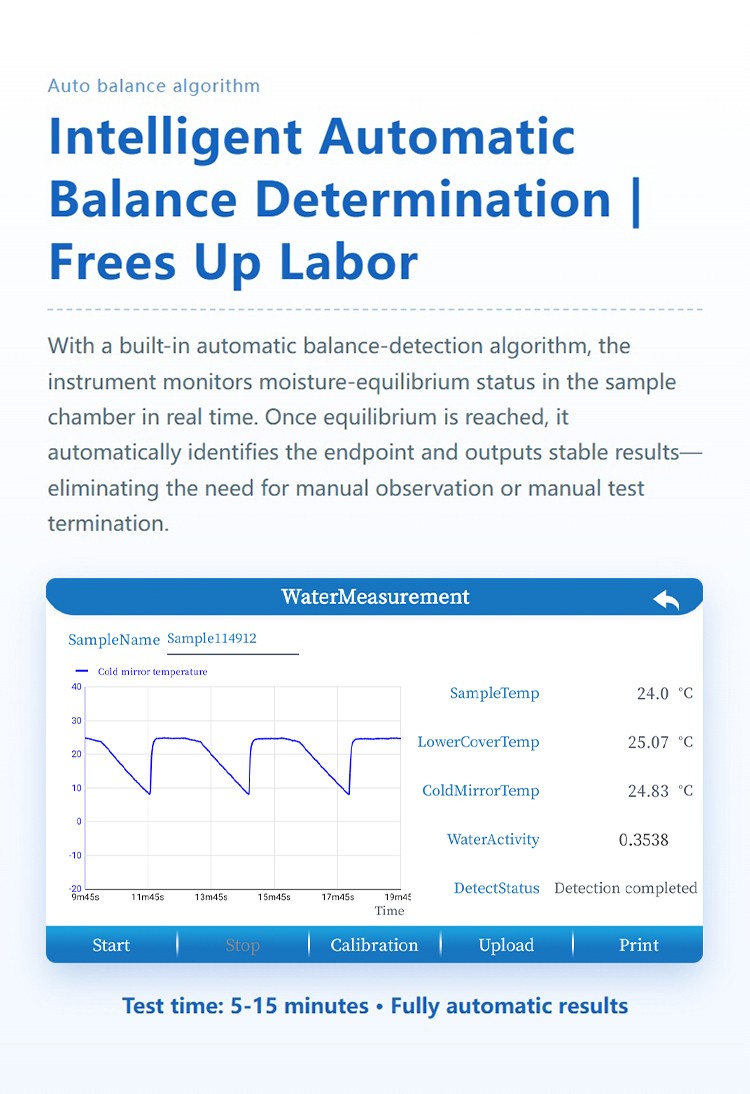

• Automated Equilibrium Decision Engine: Continuous monitoring of headspace vapor equilibrium allows intelligent automatic endpoint detection within 5 to 15 minutes, standardizing operator throughput.
• Streamlined Two-Point Salt Verification: Automated calibration routine utilizes only two saturated salt solutions (MgCl2 and K2SO4), eliminating the operational cost of expensive multi-point calibration standards.
• Mains Power Outage Immunity: Internal rechargeable lithium battery maintains complete instrument operation during unexpected power interruptions, preventing loss of long-run incubation data.
• On-Site Printing and LIMS Integration: Built-in thermal printer generates immediate physical test receipts for batch release records, while USB and Wi-Fi channels enable seamless CSV/Excel data export into laboratory management systems.
• Durable Cleanroom-Ready Design: Compact 3.8 kg footprint fits easily inside crowded QC workstations, featuring chemical-resistant testing chambers and quick-change 7 mL sample cups.

Applications

The AW-M1 is specifically configured to support regulatory compliance, shelf-life validation, and quality risk assessment across diverse industrial sectors:

• Food Processing and HACCP Systems: Verifying critical water activity control thresholds to prevent bacterial growth (aw > 0.91), yeast activity (aw > 0.88), and mold proliferation (aw > 0.80) in baked goods, confections, dried meats, pet foods, and powdered dairy additives under GB 5009.238-2016.
• Grain Silos and Oilseed Processing: Testing kernel moisture equilibrium in wheat, rice, corn, and soybeans to prevent mold growth, heating, and mycotoxin formation (including aflatoxin) during commercial grain elevator storage under GB/T 34790-2017.
• Pharmaceutical Solid Dosage and APIs: Monitoring free moisture levels in tablets, hard gel capsules, lyophilized formulations, and excipients in accordance with USP ⟨1112⟩ and 2025 Chinese Pharmacopoeia guidelines to prevent active ingredient hydrolysis and dissolution degradation.
• Cosmetics and Personal Care: Formulating barrier creams, serums, foundation powders, and lotions to assess microbiological risk and optimize preservative usage without excessive chemical loading.
• Contract Testing Laboratories: Delivering accredited third-party analytical reports meeting international standard OIML R121 and national standard GB/T 43859-2024.

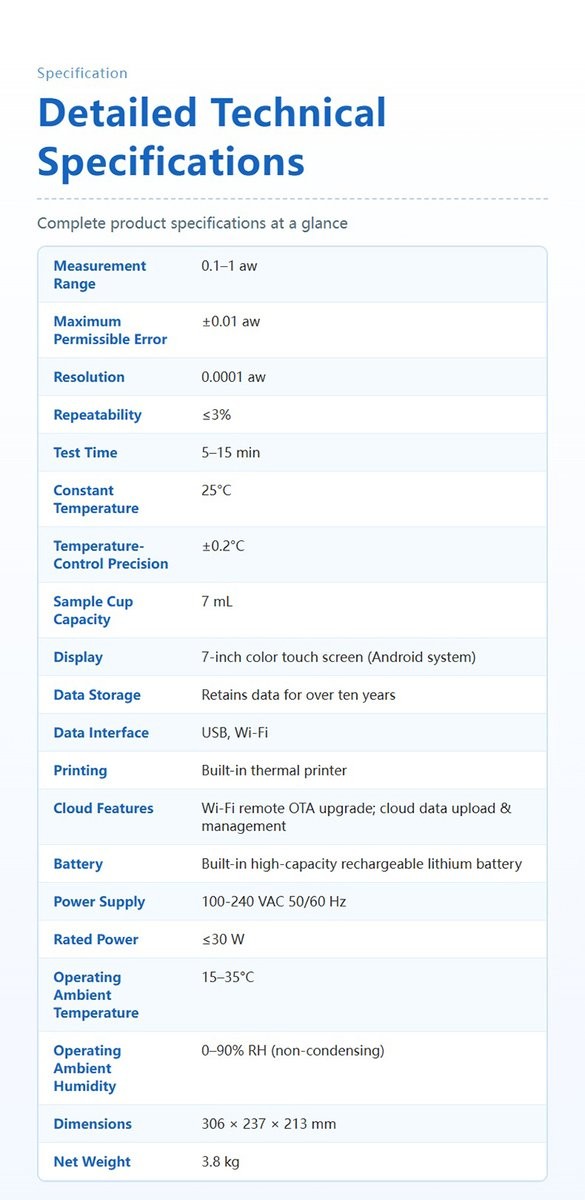

Technical Specifications

Configuration / Accessories

• AW-M1 Benchtop Water Activity Analyzer unit
• Pack of 7 mL specialized sample testing cups
• MgCl2 and K2SO4 saturated salt calibration set
• Universal AC power adapter and cable
• High-grade thermal printer paper rolls
• Product operation manual and factory calibration certificate

Operation and Support

Optimized for fast-paced laboratory environments:

• Preparation: Fill the 7 mL cup with representative sample material, insert into the measurement well, and seal the chamber latch.
• Testing: Initiate testing via the touchscreen interface. The automated system stabilizes chamber temperature at 25°C, continuously calculates vapor equilibrium, and automatically concludes the measurement when balance is achieved.
• Record Keeping: Instantly print test slips with batch IDs and timestamps for physical batch folders, or transfer datasets via USB to LIMS software for paperless compliance.
