Handheld Gold Label Reader

Instrument Introduction

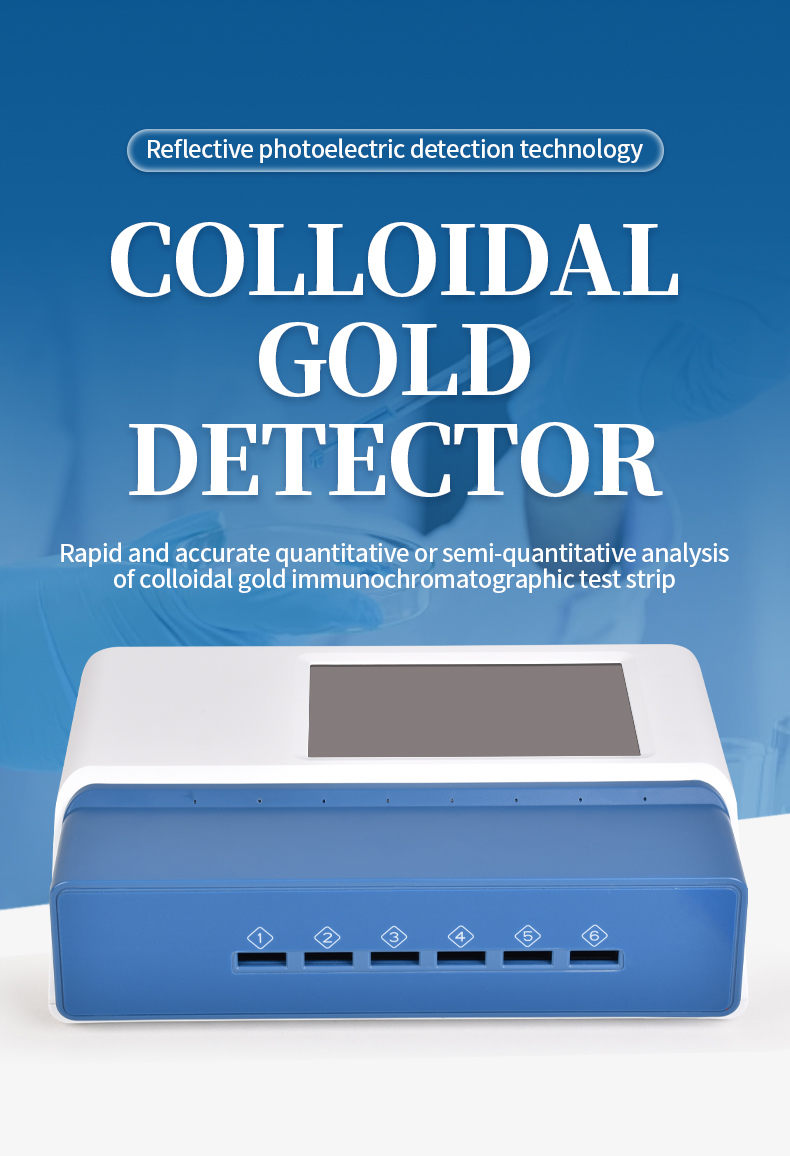

This instrument is a high-performance optical detection device designed specifically for rapid, accurate quantitative or semi quantitative analysis of colloidal gold immunochromatographic test strips (GICA). The instrument integrates advanced optoelectronic detection technology, intelligent data processing platform, and powerful network functions, and achieves reliable reading, intelligent analysis, and real-time report output of immunochromatographic results through a highly stable optical system. Its sturdy and durable design, as well as convenient operating procedures, make it a core instrument for laboratory research and rapid on-site testing (POCT).

Application Scope

1. Food safety: rapid screening for pathogenic microorganisms, residues of agricultural and veterinary drugs, and biotoxins.

2. Animal husbandry and veterinary medicine: diagnosis of animal diseases, testing of animal derived safety indicators.

3. Environmental monitoring: screening for specific pollutants in water quality and soil.

4. Scientific research and biosafety: quantitative analysis of immunochromatographic experiments and detection of biological factors.

5. Other fields: All scenarios using colloidal gold immunochromatographic test strips.

Instrument Characteristics

1. Android 4.4 system, user-friendly interface, simple and smooth operation, no need for external devices;

2. High precision optical system: using specific wavelength light sources and photoelectric sensors to reduce environmental light interference.

3. Built in quality control function and support QR code scanning to input sample information, avoiding manual errors

4. 8GB of ultra large capacity memory, supports flexible querying, previewing, and deleting results by date, and generates diverse professional reports.

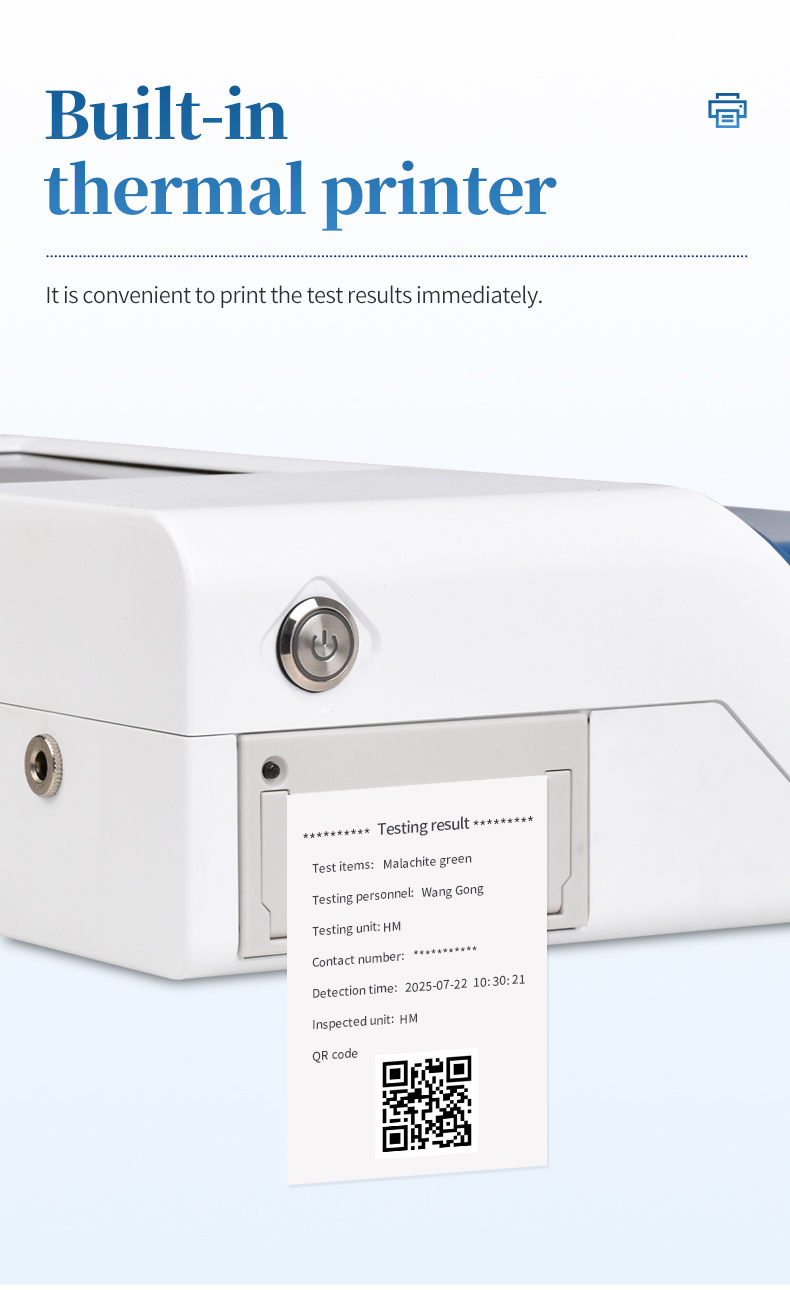

5. Equipped with a built-in thermal printer, standard reports can be printed on-site upon completion of testing, improving work efficiency.

6. Real time self diagnostic function of key components ensures long-term stable operation of the instrument.

7. Wireless network and Bluetooth are used to build a comprehensive data monitoring platform, enabling real-time data uploading, remote querying, statistical analysis, and collaborative supervision.

8. The channel is equipped with an incubation module to provide a temperature environment for specific test strip reactions.

9. Handheld design, battery powered, compact and lightweight, meeting the needs of mobile detection

10. Support multiple brands/types of gold label test strips

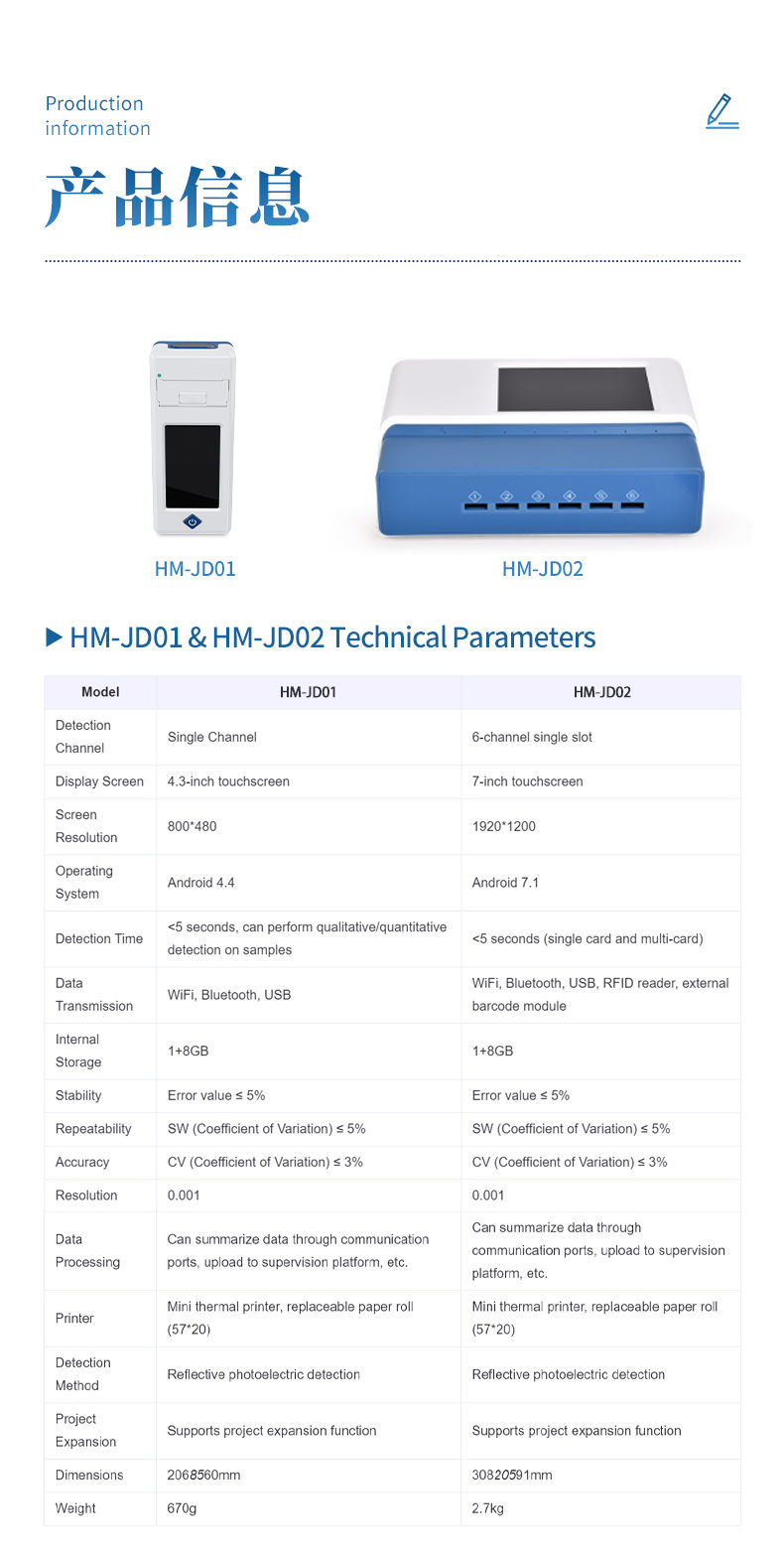

Technical Parameter

1. Screen: 4.3-inch touch screen, resolution: 800 * 480, internal storage: 1+8GB

2. Operating System: Android 4.4

3. Detection method: Reflective photoelectric detection

4. Compatible card case: 70mm * 20mm

5. Language: Chinese/English

6. Storage quantity: 100000+

7. Accuracy: Error value ≤ 5%

8. Stability: SW (fluctuation coefficient) ≤ 5%

9. Repeatability: CV (coefficient of variation) ≤ 3%

10. Resolution: 0.001

11. Detection channel: single channel

12. Detection time:<5 seconds; Can perform colloidal gold qualitative/semi quantitative detection on samples

13. Built in quality control function, capable of device inspection, device self check, and reagent card self check

14. Testing methods: incubation testing, real-time testing (re examination and verification of testing data)

15. Detection curve: It can verify the detection of reagent cards to prevent misjudgment.

16. Test results: Report the test items, the results of the tested substance, the testing unit, the inspected unit, the inspector, the testing time, the detection limit, and other information that can be displayed on the touch screen and output through the instrument's built-in printer

17. Project management: Support testing project expansion functions

18. Interface settings: The title and footer information can be modified to flexibly display instrument information

19. Data transmission: WiFi, Bluetooth Type-C

20. Data processing: Data can be summarized and uploaded to the supervision platform through the communication port

21. Detection channel incubation and detection integrated, temperature range: room temperature+5 ℃~60 ℃

22. Printer: Thermal printer (thermal printing paper: 57 * 20mm)

23. Power supply: 5V 2A

24. Battery capacity: 6000mAh

26. Display battery level

27. Operating environment: Temperature: 0~50 ℃; Humidity: 0~90%

28. Host size: 206mm * 85mm * 60mm

29. Host weight: 670g
