Colloidal Gold Analyzer

Instrument Introduction

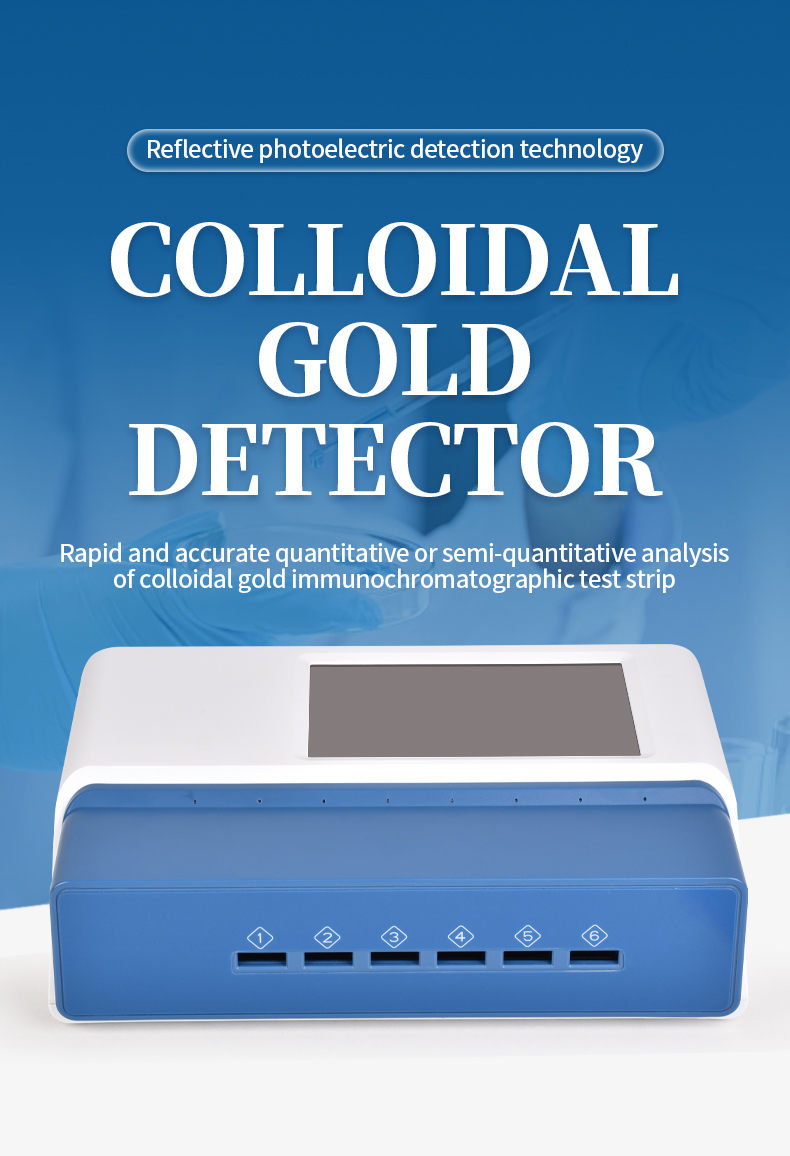

This instrument is a high-performance optical detection device designed specifically for rapid, accurate quantitative or semi quantitative analysis of colloidal gold immunochromatographic test strips (GICA). The instrument integrates advanced optoelectronic detection technology, intelligent data processing platform, high-throughput design, and powerful network functions, and achieves reliable reading, intelligent analysis, and real-time report output of immunochromatographic results through a highly stable optical system. Its sturdy and durable design, as well as convenient operating procedures, make it one of the core instruments for laboratory research and rapid on-site testing (POCT).

Application Scope

1. Food safety: rapid screening for pathogenic microorganisms, residues of agricultural and veterinary drugs, and biotoxins.

2. Animal husbandry and veterinary medicine: diagnosis of animal diseases, testing of animal derived safety indicators.

3. Environmental monitoring: screening for specific pollutants in water quality and soil.

4. Scientific research and biosafety: quantitative analysis of immunochromatographic experiments and detection of biological factors.

5. Other fields: All scenarios using colloidal gold immunochromatographic test strips.

Instrument Characteristics

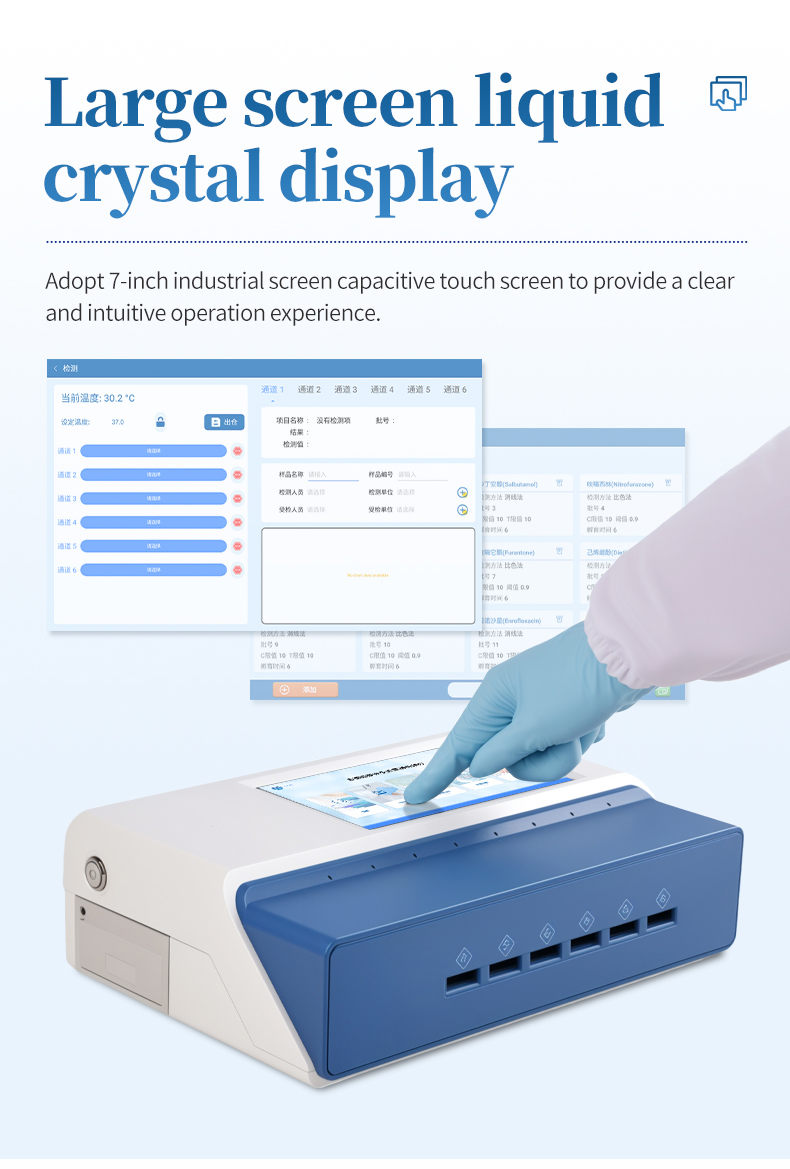

1. The Android touch system combined with a large-sized high-definition screen has a user-friendly interface, simple and smooth operation, and does not require external devices;

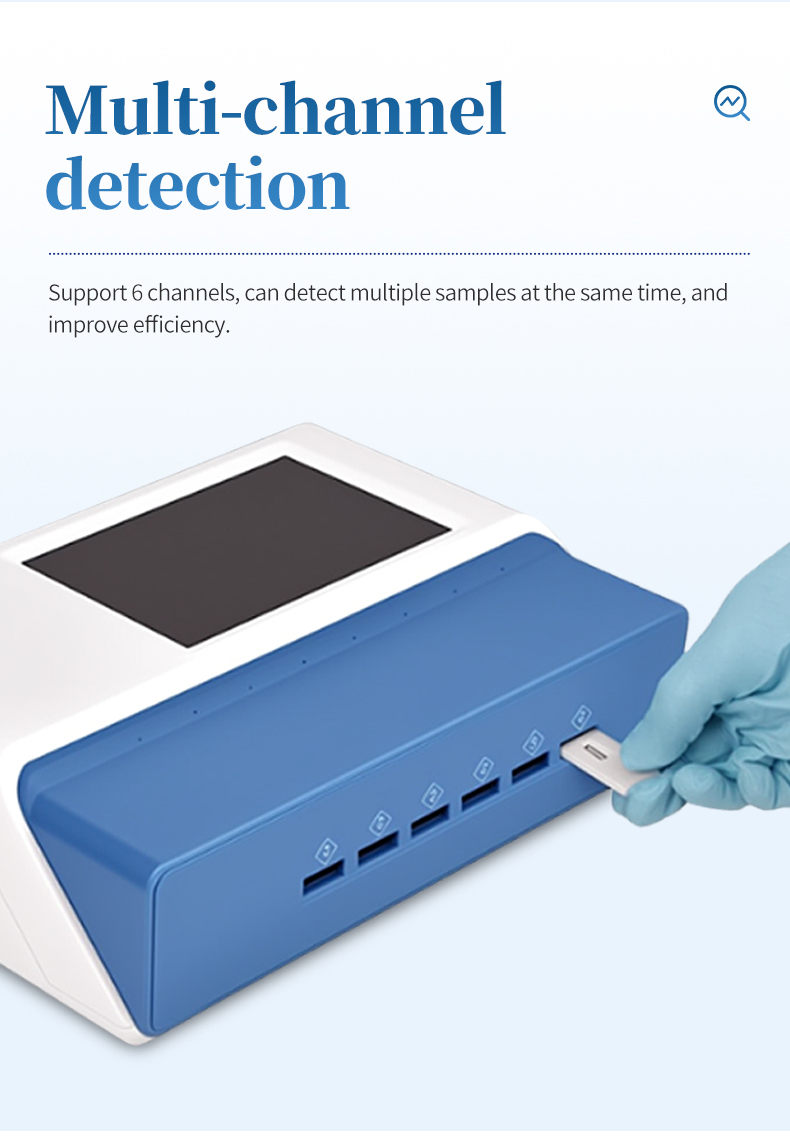

★ 2. Single card+multi card design scheme significantly improves detection efficiency and meets the needs of rapid processing of batch samples;

3. It can provide 5 million test results, support flexible query, preview, and deletion of results by date, and generate diverse professional reports.

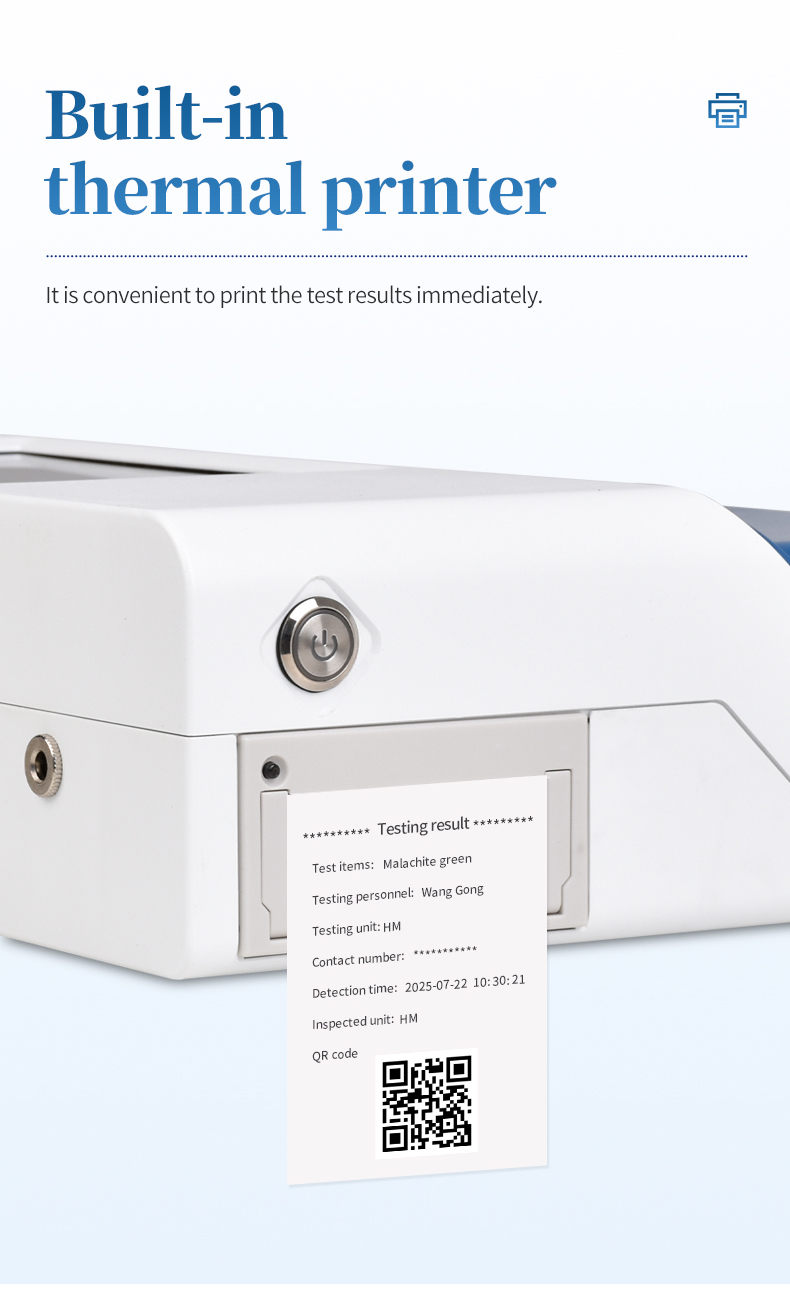

4. Equipped with a built-in thermal printer, standard reports can be printed on-site upon completion of testing, improving work efficiency.

5. Real time self diagnostic function of key components ensures long-term stable operation of the instrument.

6. Build a comprehensive data monitoring platform with high-speed wired/wireless networks and Bluetooth, enabling real-time data uploading, remote querying, statistical analysis, and collaborative supervision.

7. Rich interface design, easy to connect to computers, USB drives, networks, and upper computer systems, supporting USB drive export.

8. The incubation module provides a temperature environment for specific test strip reactions.

9. Streamlined structure, compact and lightweight, balancing laboratory durability and testing needs.

10. Built in quality control function and support QR code scanning to input sample information, avoiding manual errors.

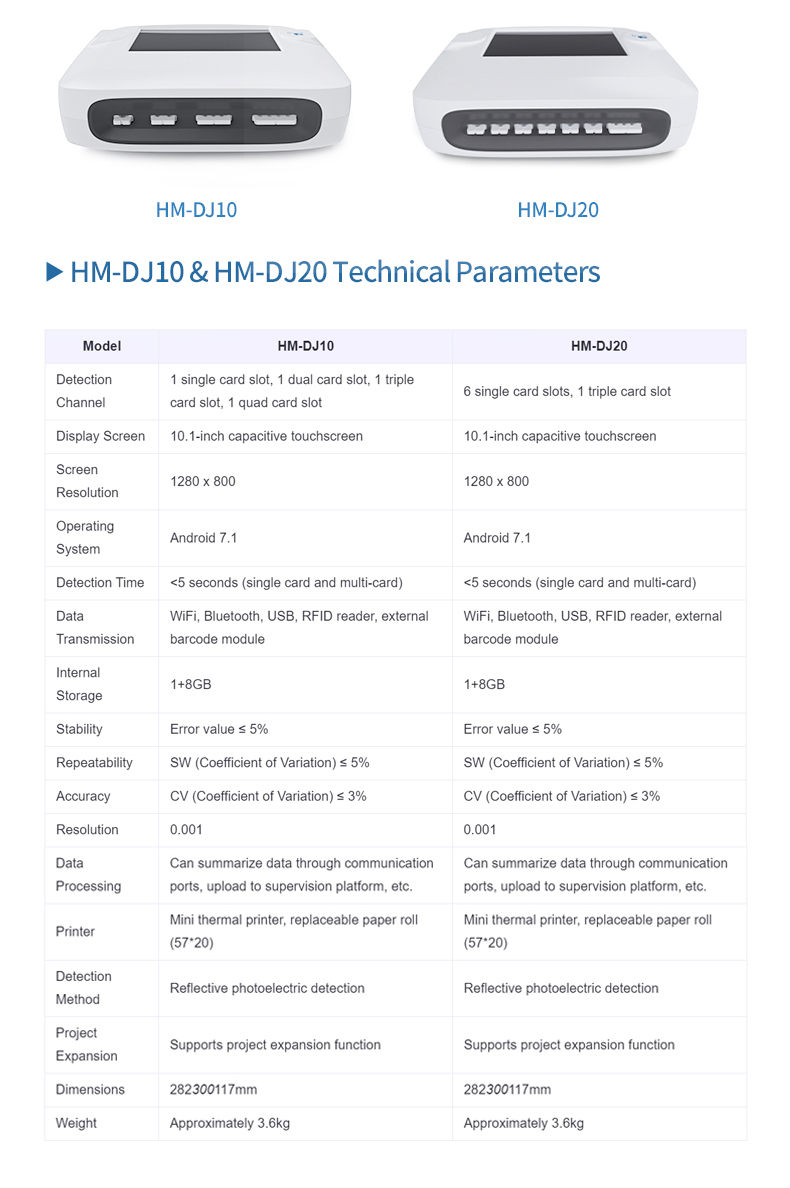

Technical Parameter

1. 10.1-inch capacitive touch screen, resolution: 1280 x 800, internal storage: 1+8GB

2. Operating System: Android 7.1

3. Detection method: Reflective photoelectric detection

4. Accuracy: Error value ≤ 5%

5. Stability: SW (fluctuation coefficient) ≤ 5%

6. Repeatability: CV (coefficient of variation) ≤ 3%

7. Resolution: 0.001

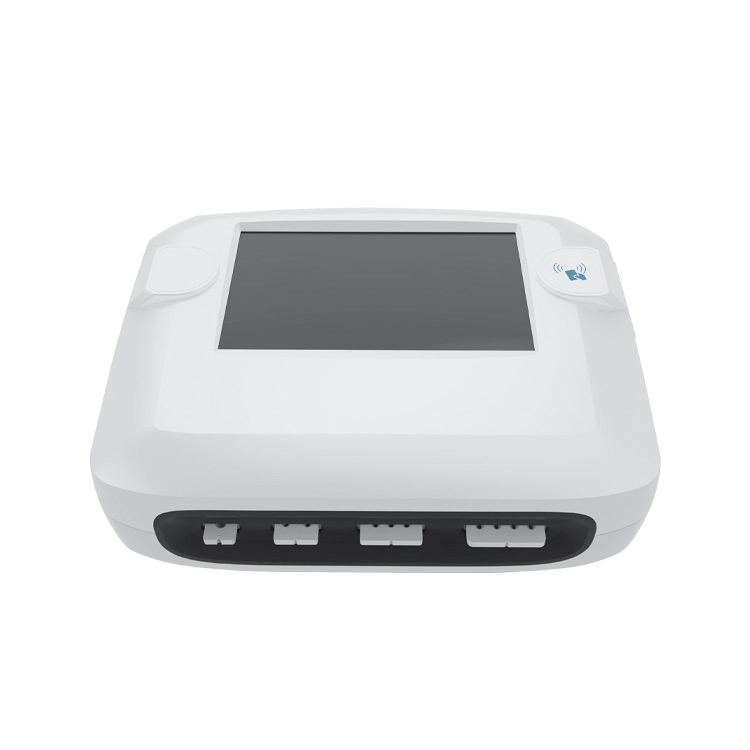

★ 8. Channels: 1 single card slot, 1 dual card slot, 1 triple card slot, 1 quad card slot

9. Detection time:<5 seconds (single card and multi card); Colloidal gold qualitative/semi quantitative detection can be performed on the sample.

10. Test results: Report the test items, concentration of the tested substance, testing unit, inspected unit, inspector, testing time, detection limit, and other information that can be displayed on the touch screen and output through the instrument's built-in printer

11. Printer: Thermal printer (thermal printing paper: 57 * 30mm)

12. Data transmission: WiFi, Bluetooth USB、 RF card reader, external scanning module

13. Data processing: Data can be summarized and uploaded to the supervision platform through the communication port

14. Project Expansion: Support detection project expansion function

15. Detection channel incubation and detection integrated, temperature range: room temperature+5 ℃~60 ℃

16. Interface: USB interface: 2; USB-B interface: 1; LAN interface: 1; DC power interface: 5.5/2.1mm

17. Power supply: Input: AC 220V ± 20V, 50Hz ± 1Hz; Output: DC 12V, 5A

18. Host size: 382mm x 300mm x 117mm

19. Host weight: approximately 3.6kg
