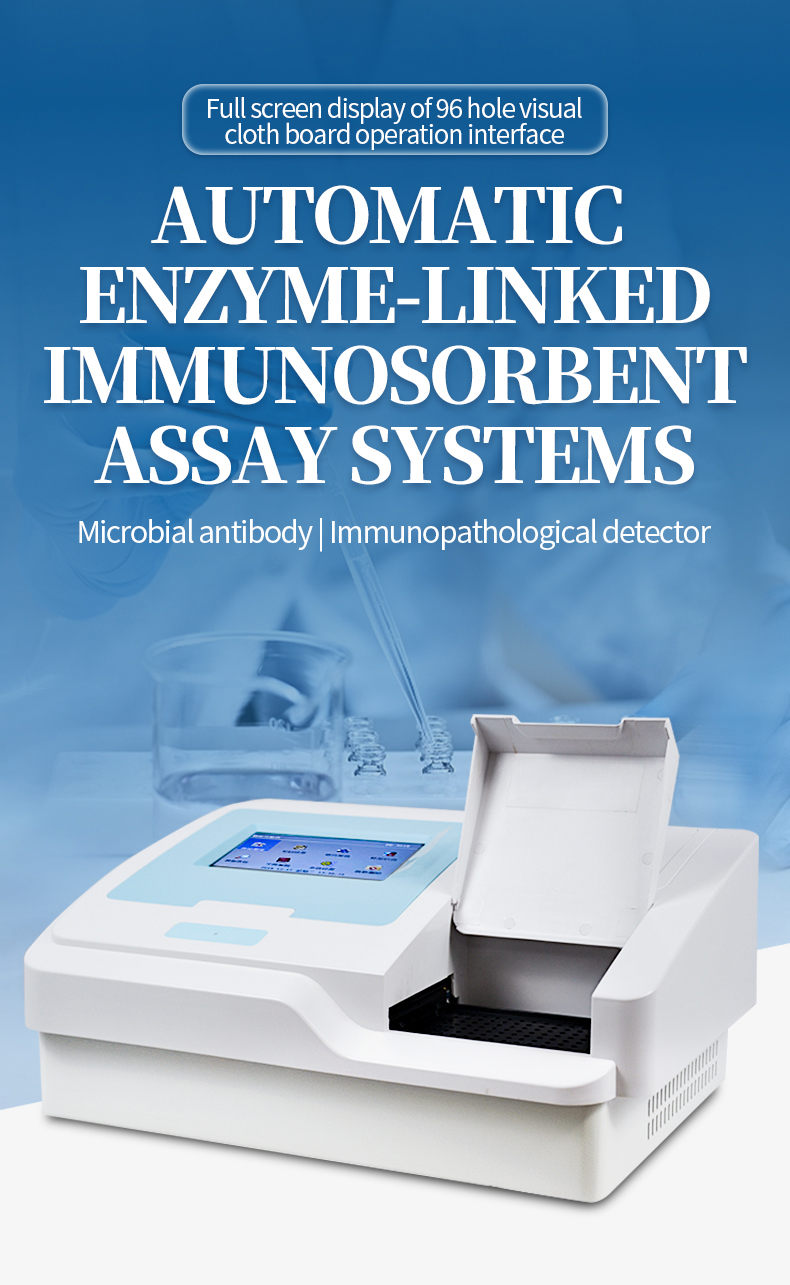

Enzyme-Linked Immunosorbent Assay Analyzer

Product Features

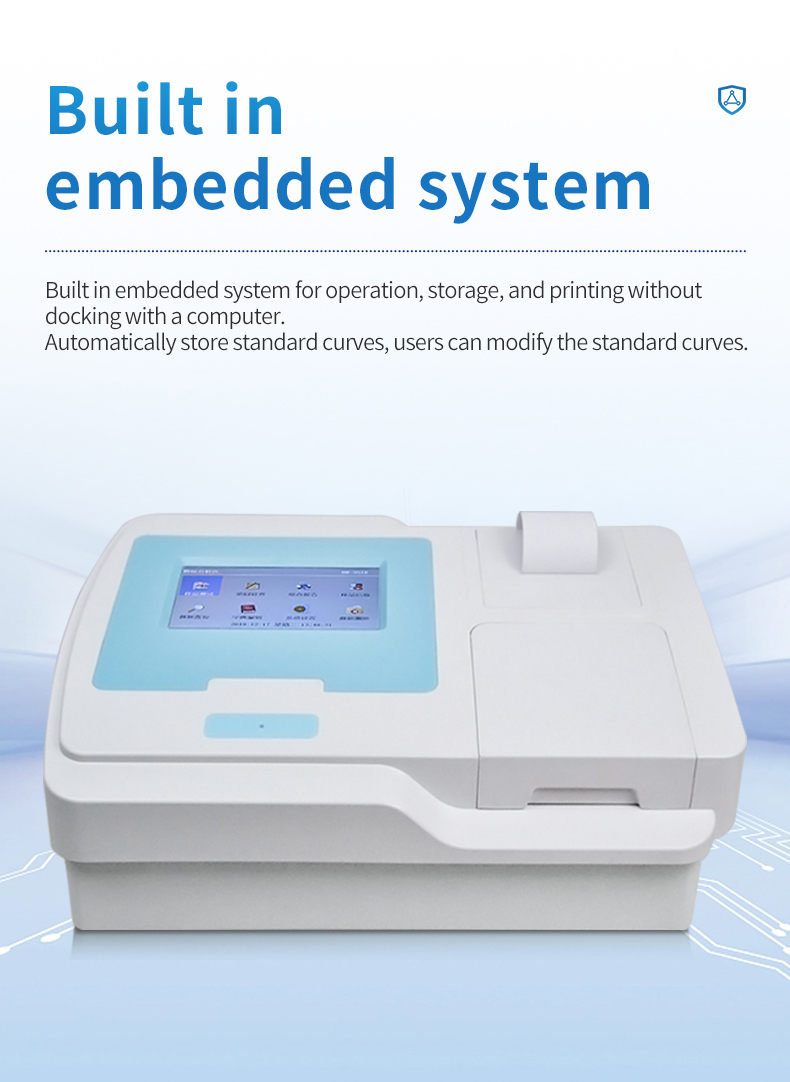

1. Equipped with an embedded system, it can be operated, stored, and printed without the need for an external computer;

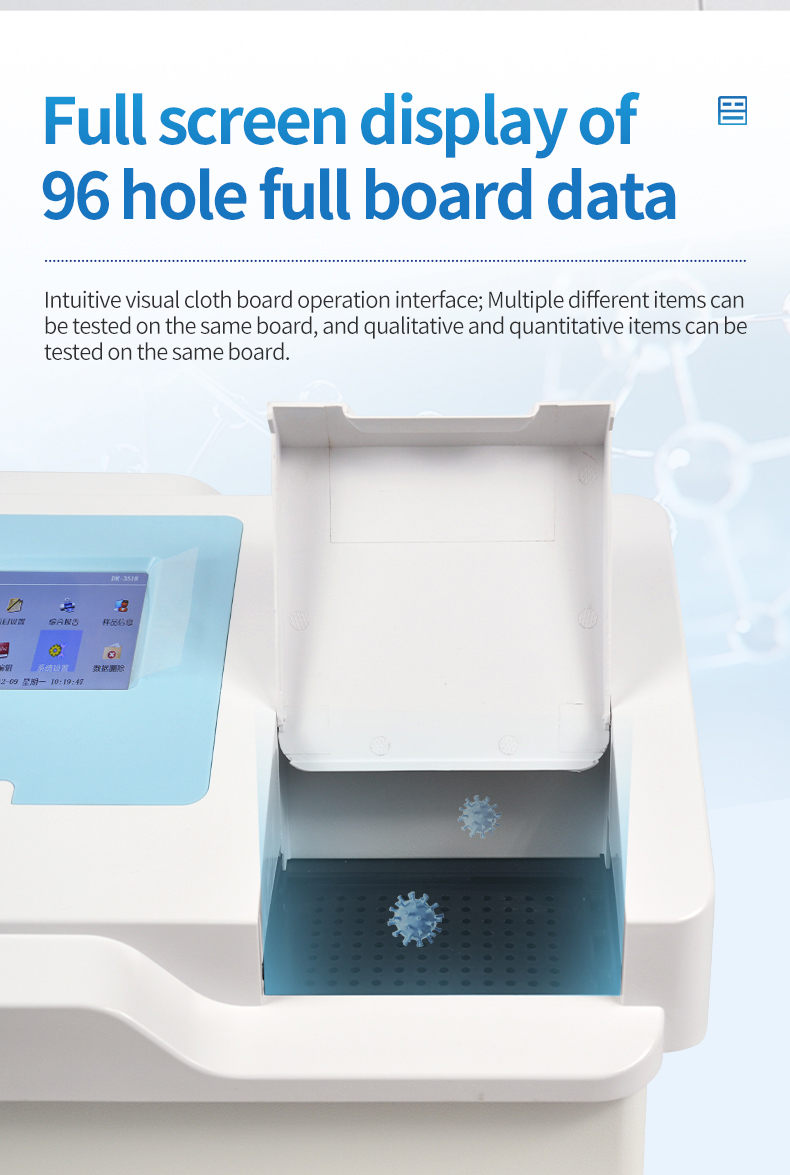

2. Full screen display of 96 hole whole board data, intuitive visual board layout operation interface

3. Convenient touchscreen input, optional external mouse and keyboard

4. Measurement modes: single wavelength detection, dual wavelength detection, two-point method, kinetic method, enzyme inhibition rate, endpoint method, rate method.

5. You can choose absorbance, Cut Off qualitative calculation, single point calibration, line regression, linear regression, exponential regression, logarithmic regression, double logarithmic regression, etc log-logit、 Calculation methods such as power regression, four parameter regression, and enzyme inhibition rate;

6. Up to 12 different items can be tested on the same board, and qualitative and quantitative items can be detected on the same board.

7. Comprehensive and complete quality control functions, including Westguard multi rule quality control, instant method quality control, and various quality control charts and parameter calculations, with quality control alarm function.

8. It has flexible qualitative formula input function to meet different parameter settings for various identical and different reagents.

9. Layout and save import functions greatly improve the testing efficiency of commonly used projects

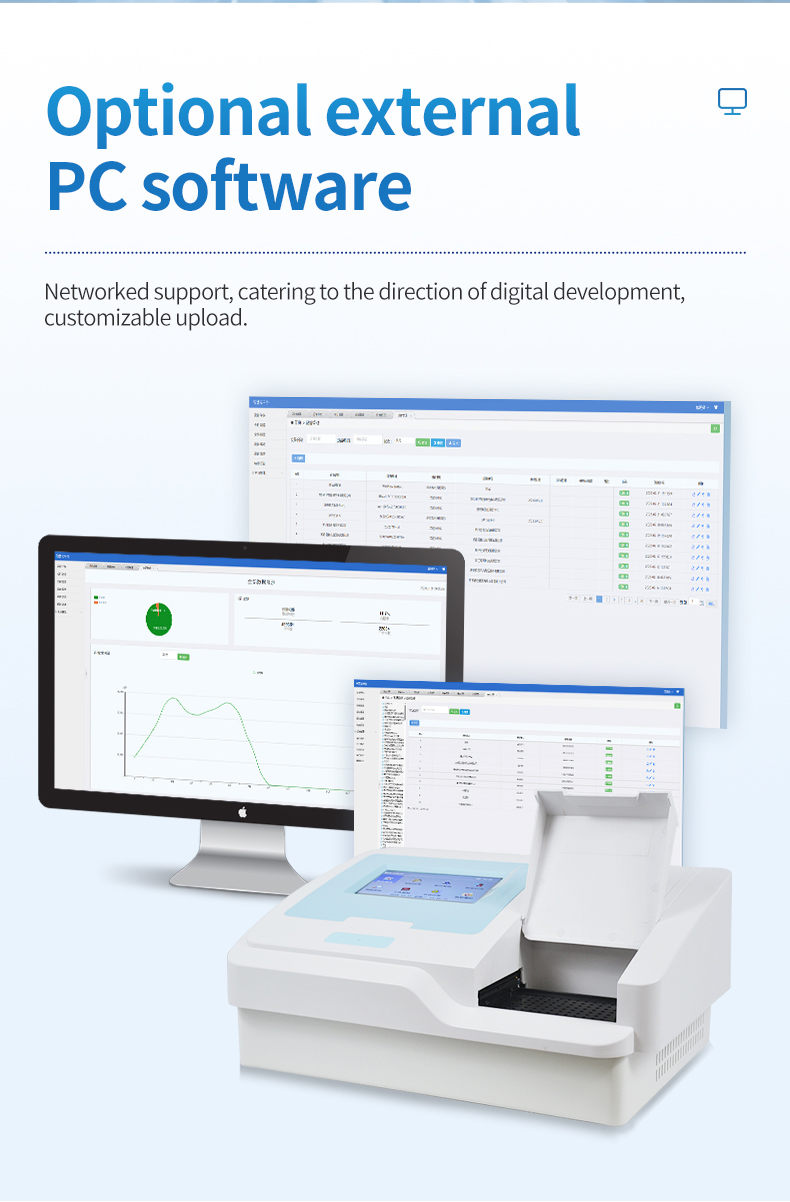

10. Optional external PC software, networked support, catering to the direction of digital development, customizable upload.

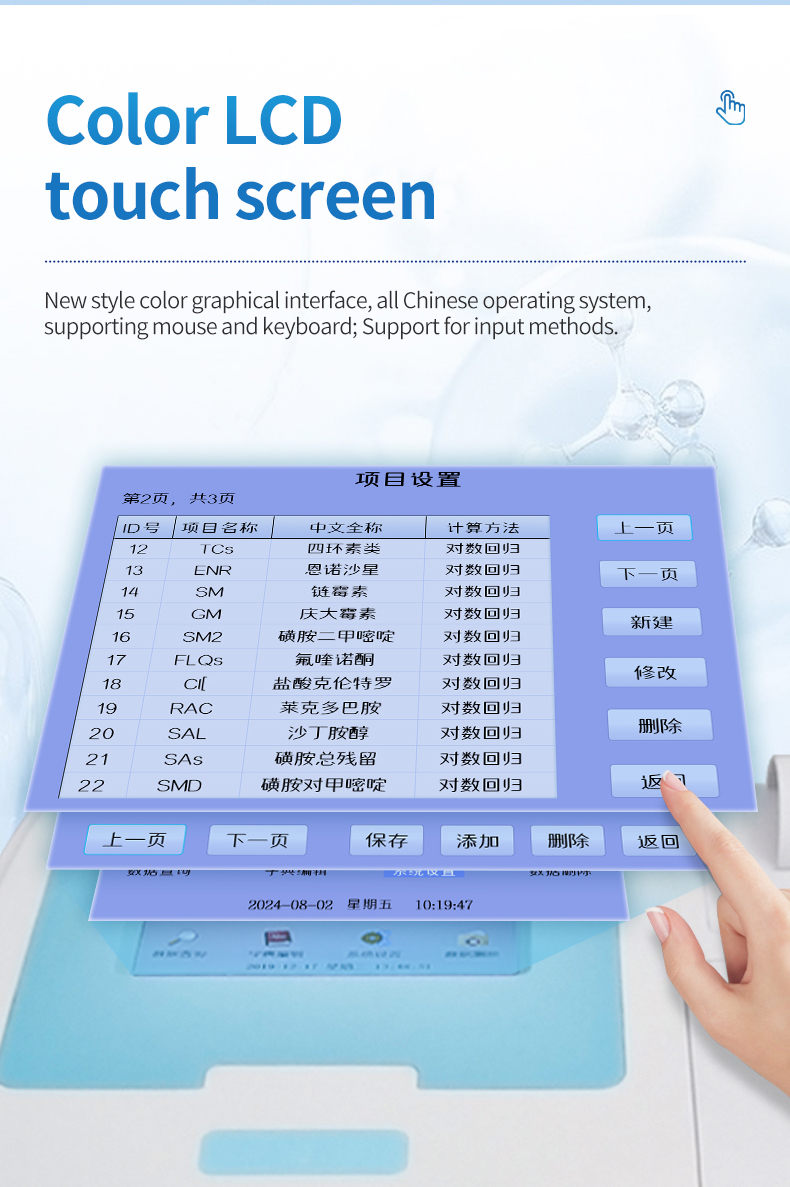

11. New style color graphical interface, fully Chinese operating system, supports mouse, keyboard, and input method.

12. Intelligent switch for light source, extending its lifespan.

13. Provide multiple printing methods and various forms of Chinese reports, and can customize various reports.

14. Dedicated system maintenance menu, automatically determines the current status and performance indicators of the instrument, and can print relevant data

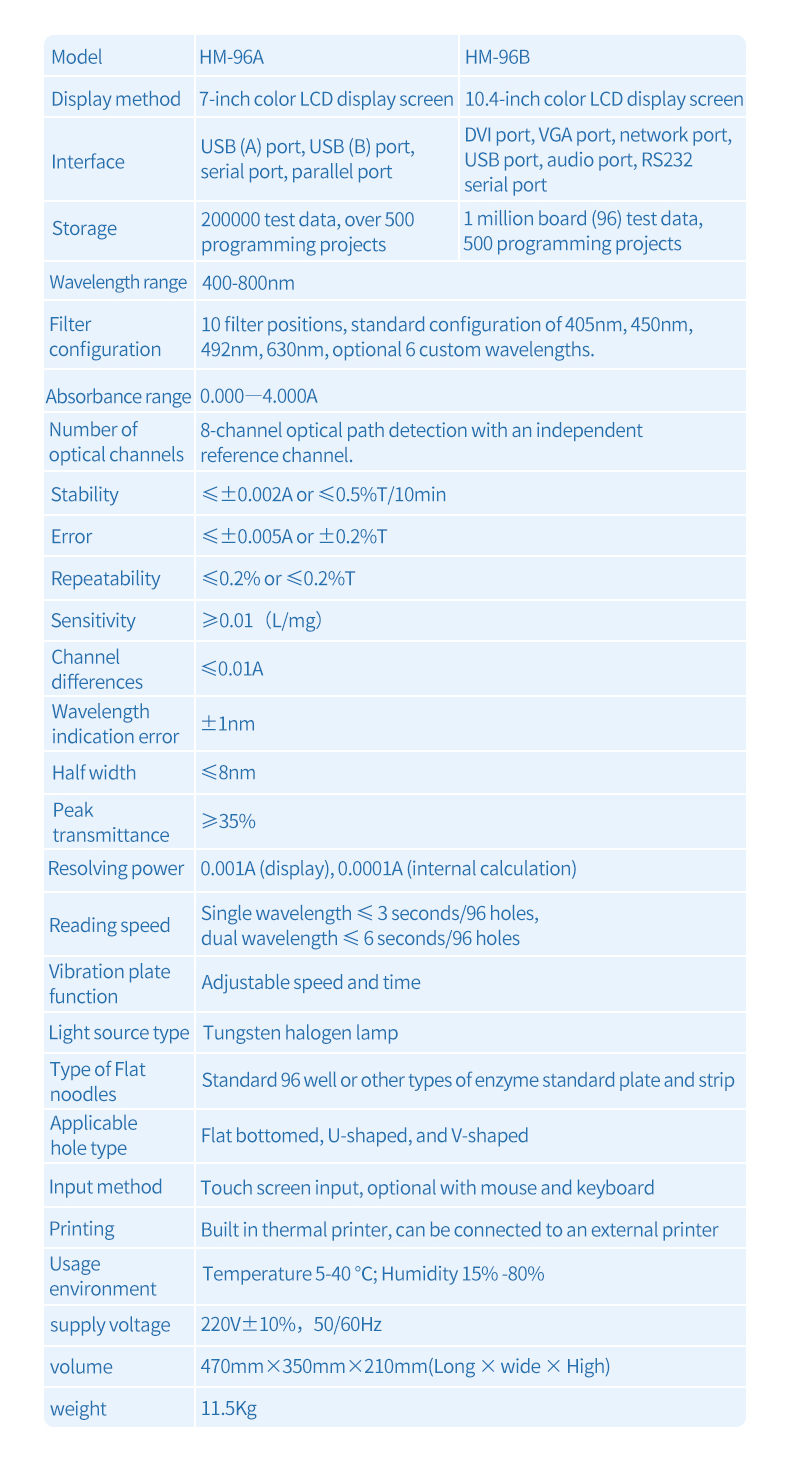

Technical Parameters

*Wavelength range: 400-800nm

*Filter configuration: 10 filter positions, standard configuration includes 405nm, 450nm, 492nm, 630nm, and optional 6 custom wavelengths

Absorption range: 0.000-4000A

*Number of optical channels: 8-channel optical path detection, with an additional independent reference channel (optional)

*Stability of indication: ≤± 0.002A or ≤ 0.5% T/10min.

*Indication error (accuracy): ≤± 0.005A or ± 0.2% T.

*Repeatability: ≤ 0.2% or ≤ 0.2% T.

Sensitivity: ≥ 0.01 (L/mg).

Channel difference: ≤ 0.01A.

Wavelength indication error: ± 1nm

Half width: ≤ 8nm

Peak transmittance: ≥ 35%

Resolution: 0.001A (display), 0.0001A (internal calculation)

*Reading speed: Single wavelength ≤ 3 seconds/96 holes, dual wavelength ≤ 6 seconds/96 holes

Vibration board function: adjustable speed and time

Light source type: halogen tungsten lamp

Flat noodles type: standard 96 well or other types of enzyme standard plate and strip

Applicable hole types: flat bottom, U-shaped, and V-shaped

Display mode: 7-inch color LCD screen display

Input method: Touch screen input, optional mouse and keyboard

Printing: Built in thermal printer, can be connected to an external printer

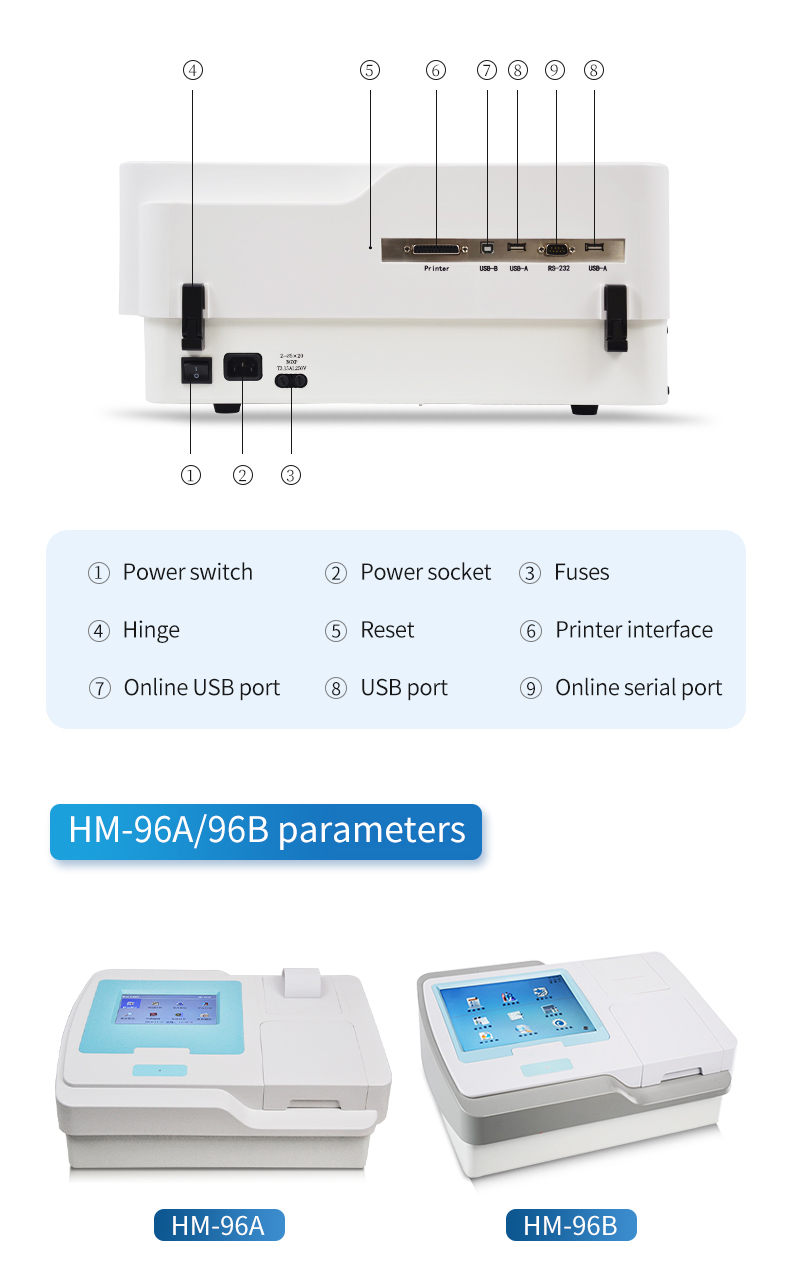

Interfaces: USB (A) port, USB (B) port, serial port, parallel port

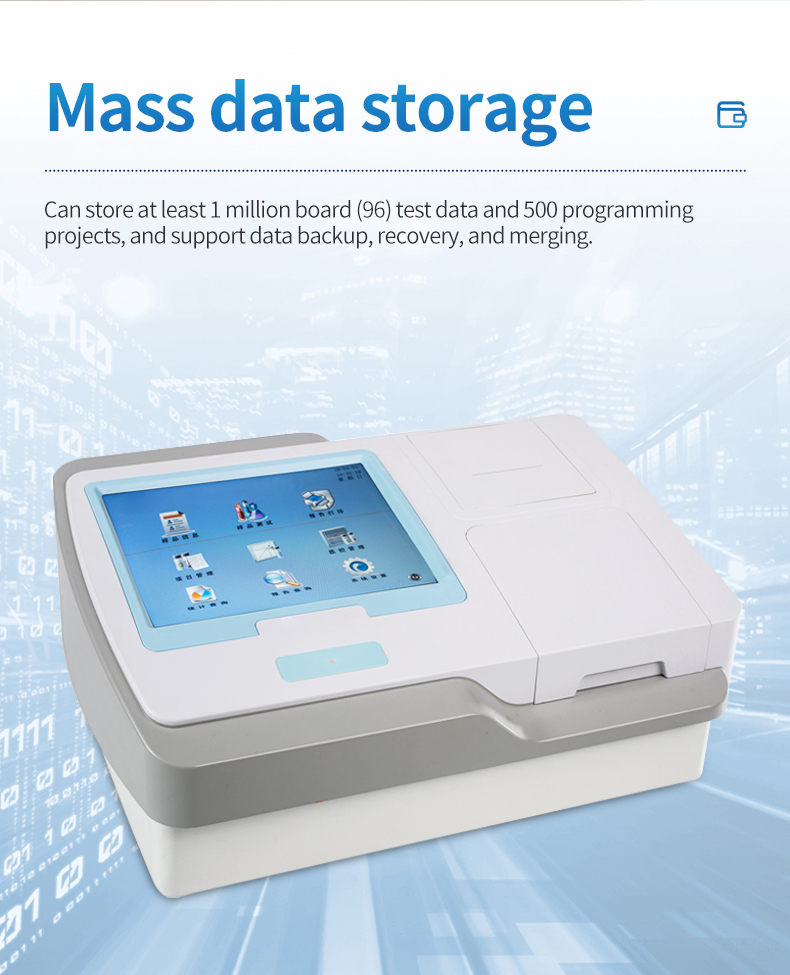

*Data storage: 200000 test data, 500 or more test items (expandable)

Operating environment: Temperature range of 5-40 ℃; Humidity 15% -80%

Power supply voltage: 220V ± 10%, 50/60Hz

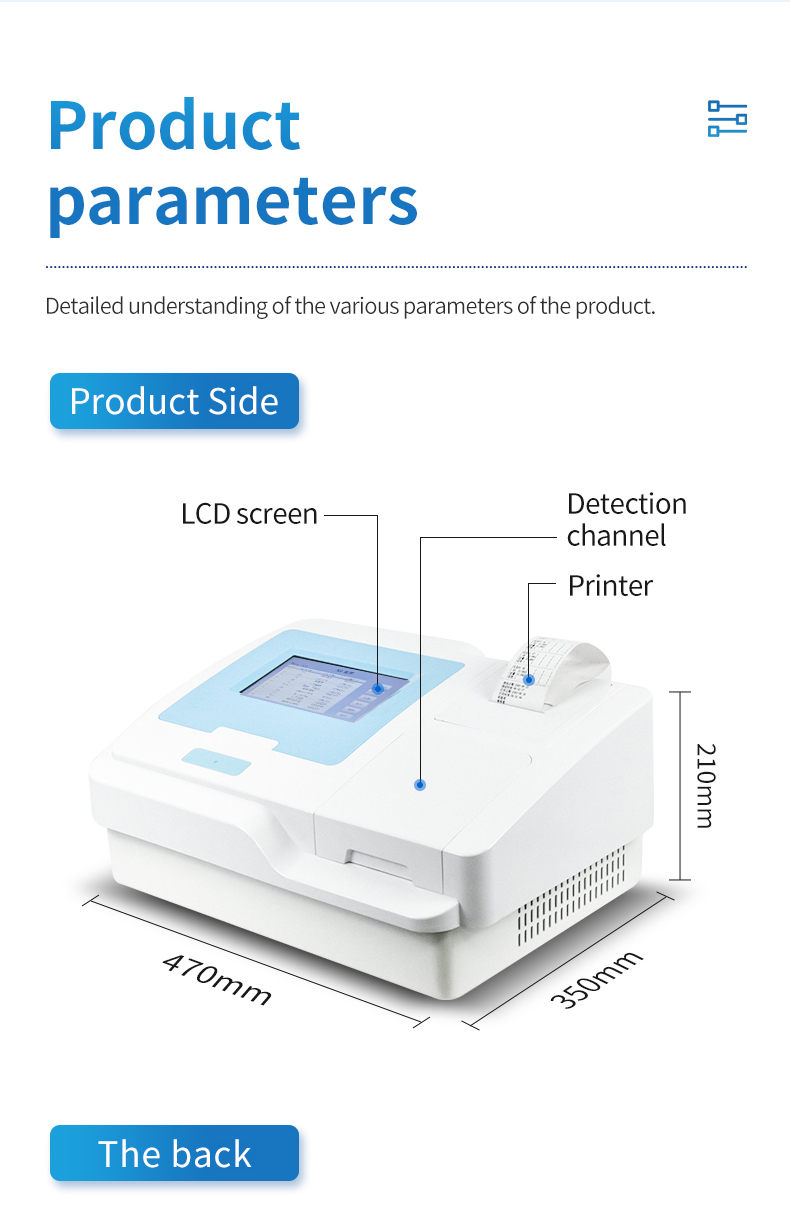

Volume: 475mm x 350mm x 210mm (length x width x height)

Weight: 11.5Kg
