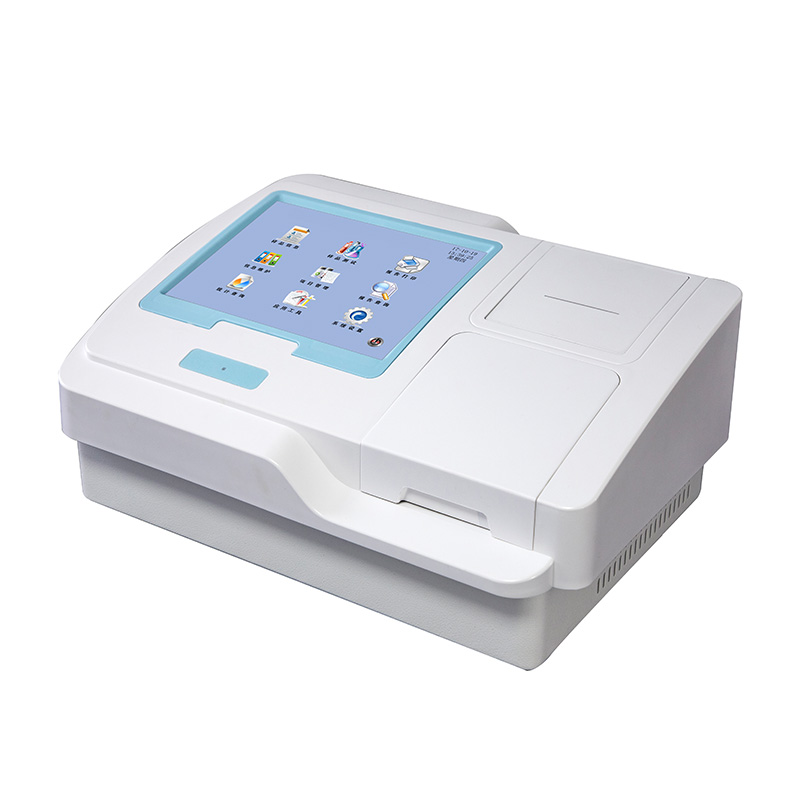

Microplate Reader

Product Features

*10.4-inch color LCD touch screen input, large screen display, quick operation;

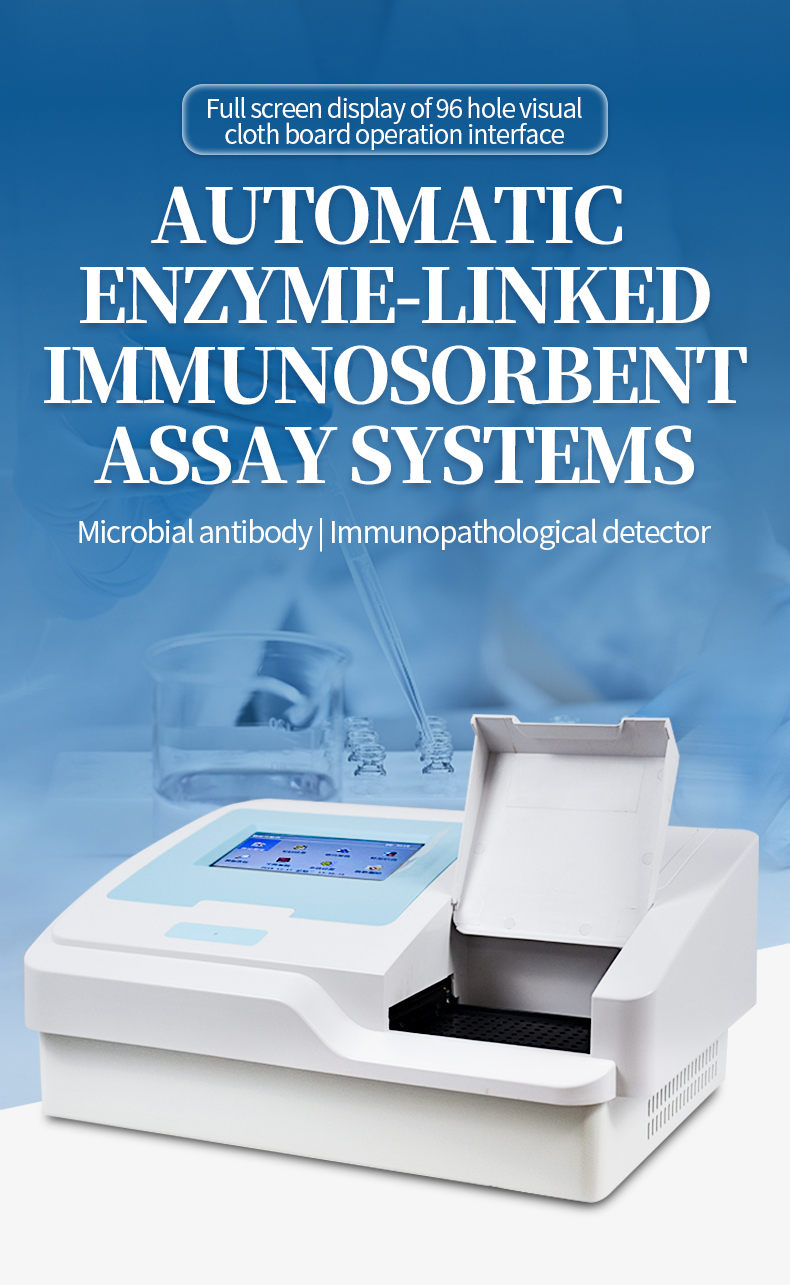

*Full screen display of 96 hole visual layout operation interface;

Automatically store standard curves, and users can make corrections to the standard curves;

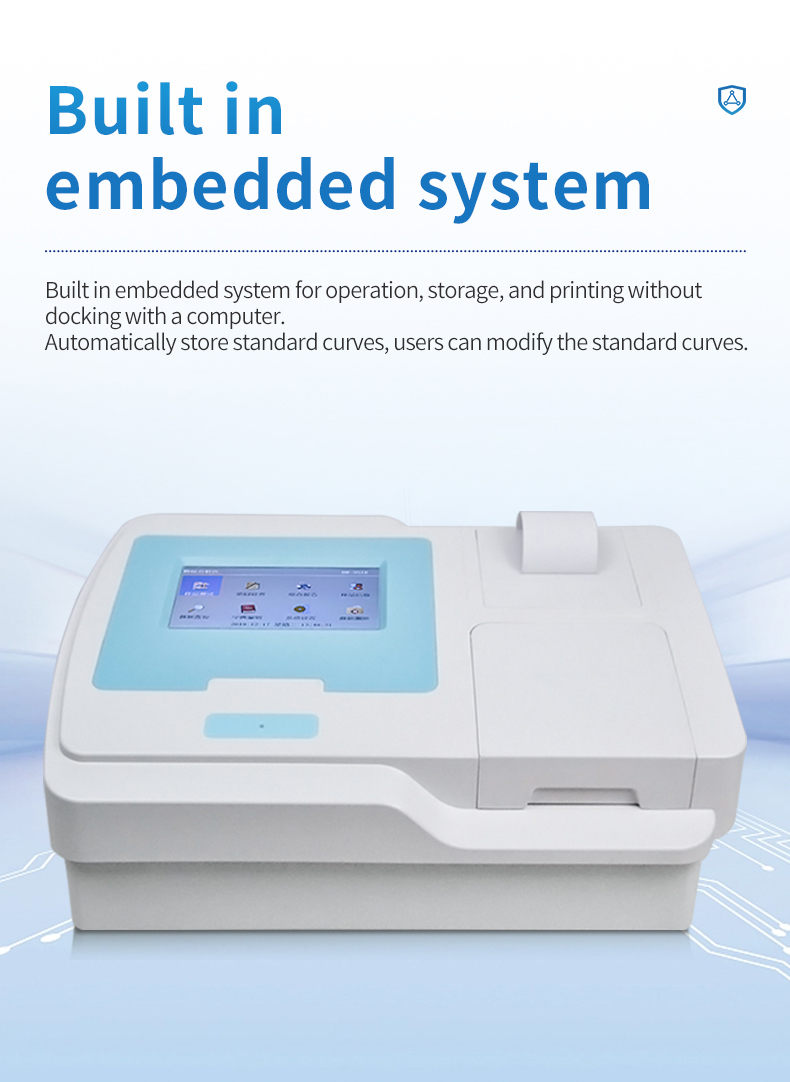

Built in embedded system allows for operation, storage, and printing without the need for an external computer;

Automatic zeroing can be performed in both single wavelength and dual wavelength testing modes;

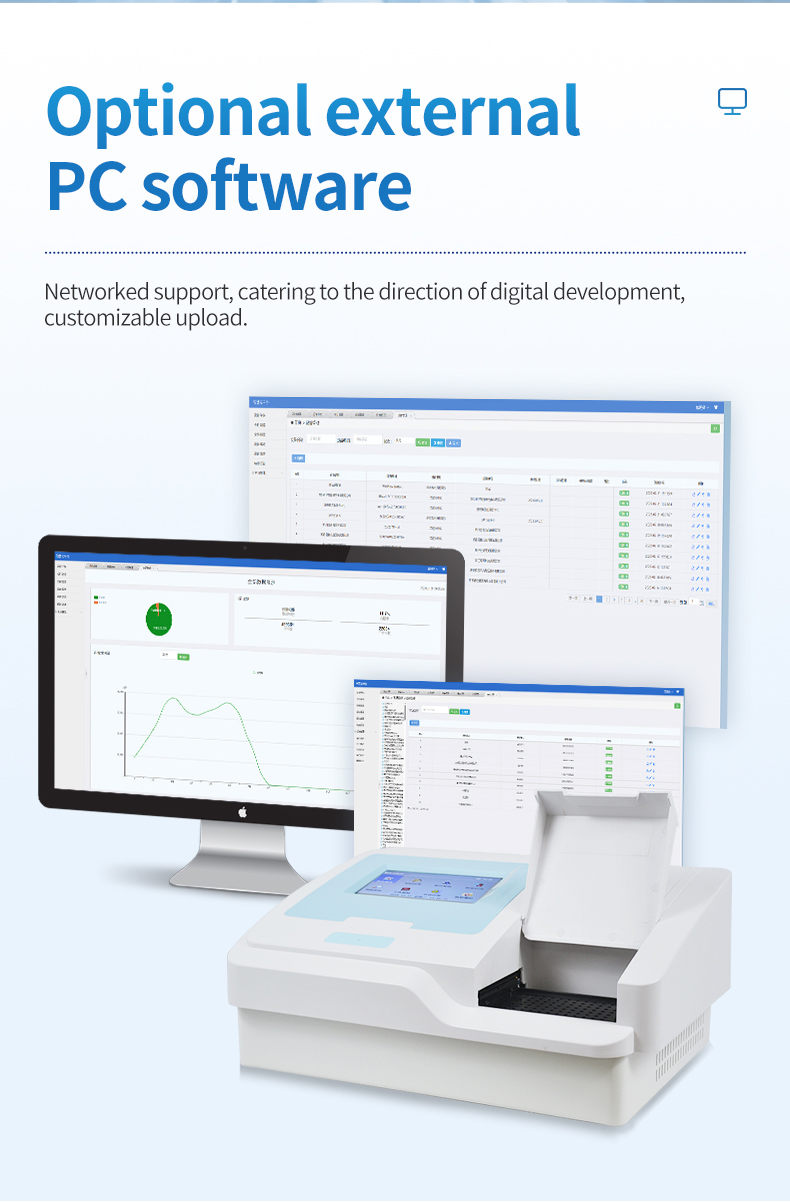

Optional external PC software, networked support, catering to the direction of digital development, customizable upload;

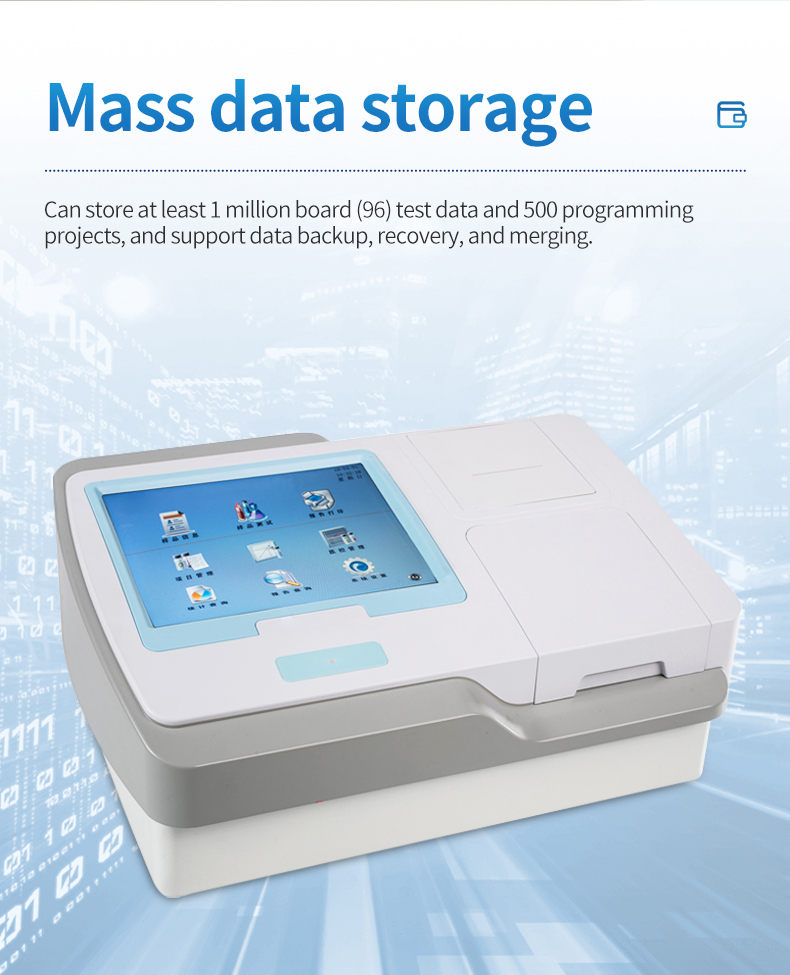

*Massive storage, capable of storing at least 1 million board (96) test data and 500 programming projects, and supporting data backup, recovery, and merging;

*24 different items can be tested on the same board and can be distinguished by display, and qualitative and quantitative items can be detected on the same board;

*Template function, fixed detection work, greatly simplifies the workload of operators;

Intelligent calculation of test results ensures their accuracy and effectiveness, and can automatically trigger alarms;

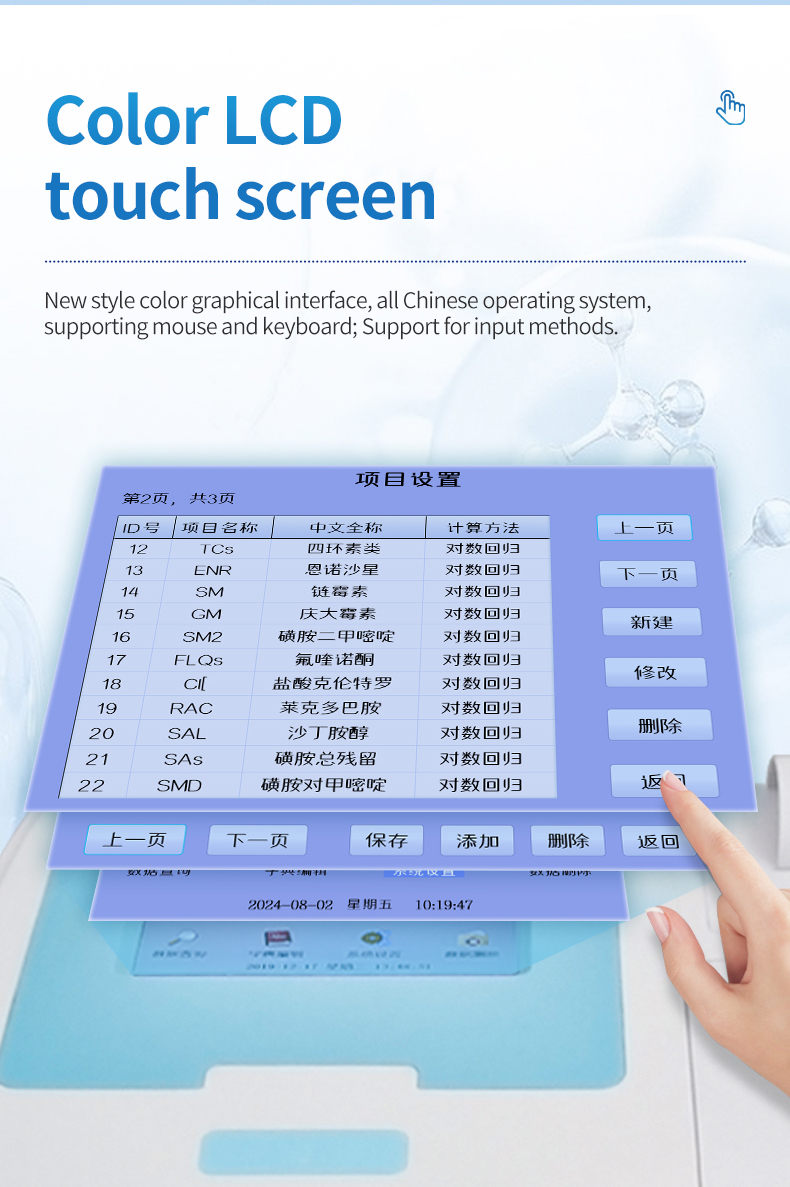

New Windows color graphical interface, fully Chinese operating system, supports mouse, keyboard, and multiple input methods;

Intelligent switch for light source, extending its lifespan;

*Comprehensive and complete quality control functions, including Westguard multi rule quality control, instant method quality control, and various quality control charts and parameter calculations, with quality control alarm function;

Provide multiple printing methods and various forms of Chinese reports, and can customize various reports;

*The functions of board layout and saving import greatly improve the testing efficiency of commonly used projects;

*You can choose absorbance, Cut Off qualitative calculation, single point calibration, line regression, linear regression, exponential regression, logarithmic regression, double logarithmic regression, etc log-logit、 Calculation methods such as power regression, four parameter regression, and enzyme inhibition rate;

Specialized system maintenance menu, automatically determines the current status and performance indicators of the instrument, and can print relevant data;

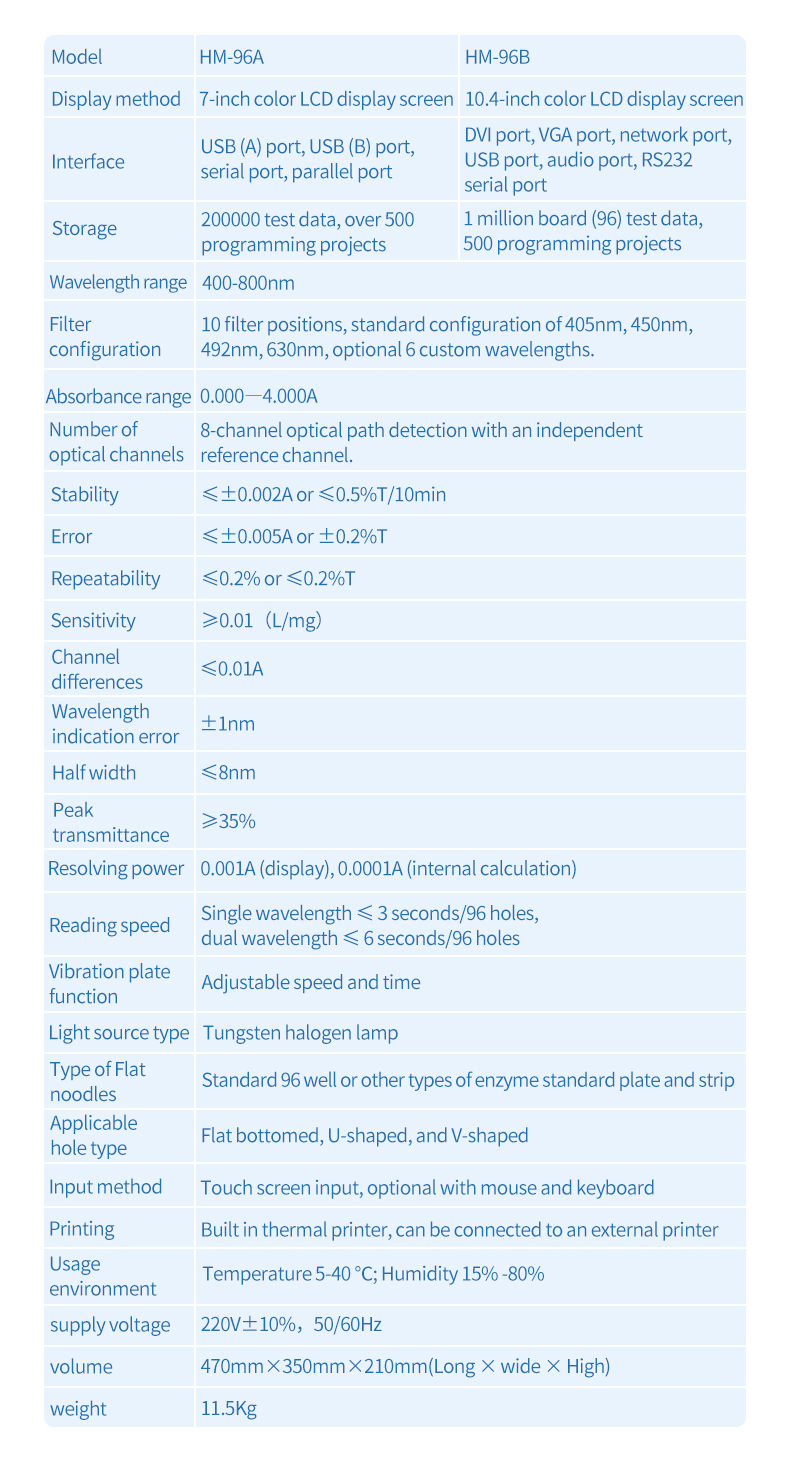

Technical Parameter

Wavelength range: 400-800nm

*Filter configuration: 10 filter positions, standard configuration includes 405nm, 450nm, 492nm, 630nm, and optional 6 custom wavelengths

Absorption range: 0.000-4000A

*Number of optical channels: 8-channel optical path detection, with an additional independent reference channel

*Stability of indication: ≤± 0.002A or ≤ 0.5% T/10min

*Indication error (accuracy): ≤± 0.005A or ± 0.2% T

*Repeatability: ≤ 0.2% or ≤ 0.2% T

Sensitivity: ≥ 0.01 (L/mg)

Channel difference: ≤ 0.01A

Wavelength indication error: ± 1nm

Half width: ≤ 8nm

Peak transmittance: ≥ 35%

Resolution: 0.001A (display), 0.0001A (internal calculation)

*Reading speed: Single wavelength ≤ 3 seconds/96 holes, dual wavelength ≤ 6 seconds/96 holes

Vibration board function: adjustable speed and time

Light source type: halogen tungsten lamp

Flat noodles type: standard 96 well or other types of enzyme standard plate and strip

Applicable hole types: flat bottom, U-shaped, and V-shaped

*Display mode: 10.4-inch color LCD screen display

Input method: Touch screen input, optional mouse and keyboard

Printing: Built in thermal printer, can be connected to an external printer

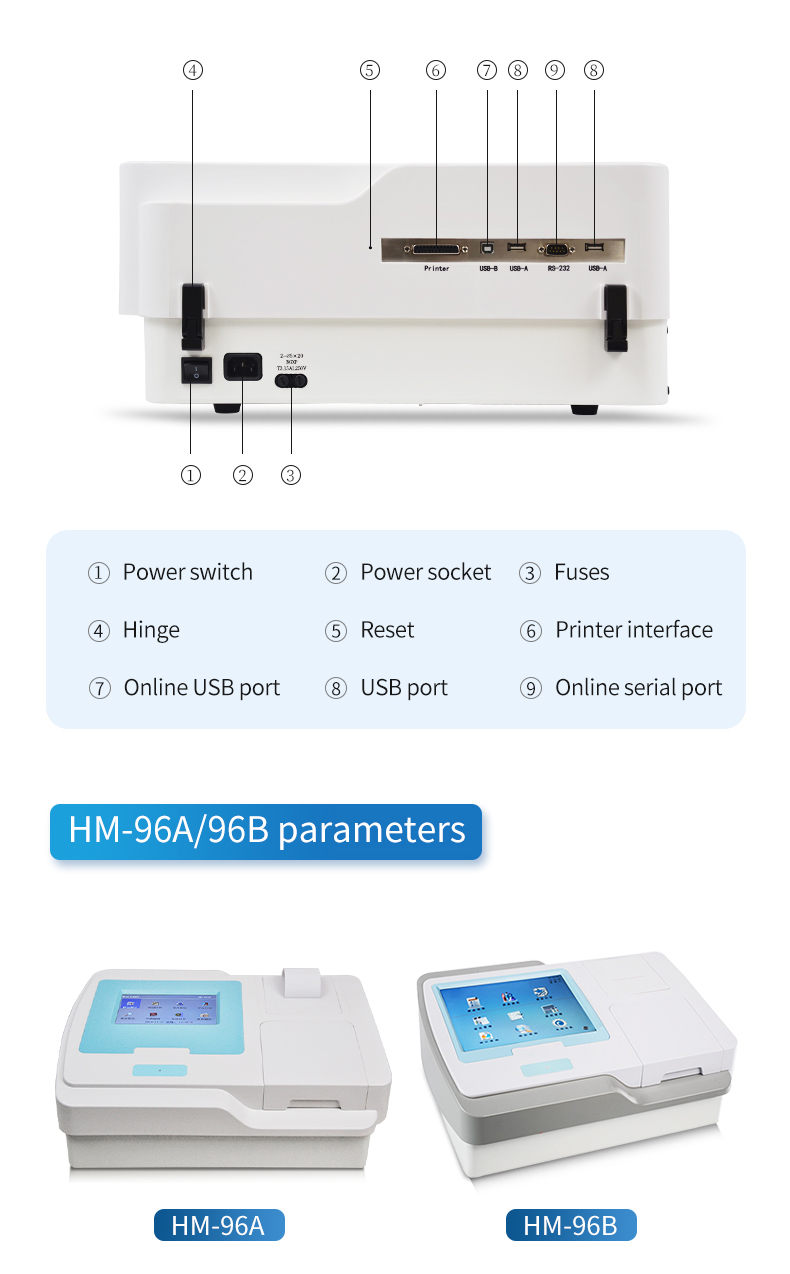

Interfaces: DVI port, VGA port, Ethernet port, USB port, audio port, RS232 serial port

Operating environment: Temperature range of 5-40 ℃; Humidity 15% -80%

Power supply voltage: 220V ± 10%, 50/60Hz

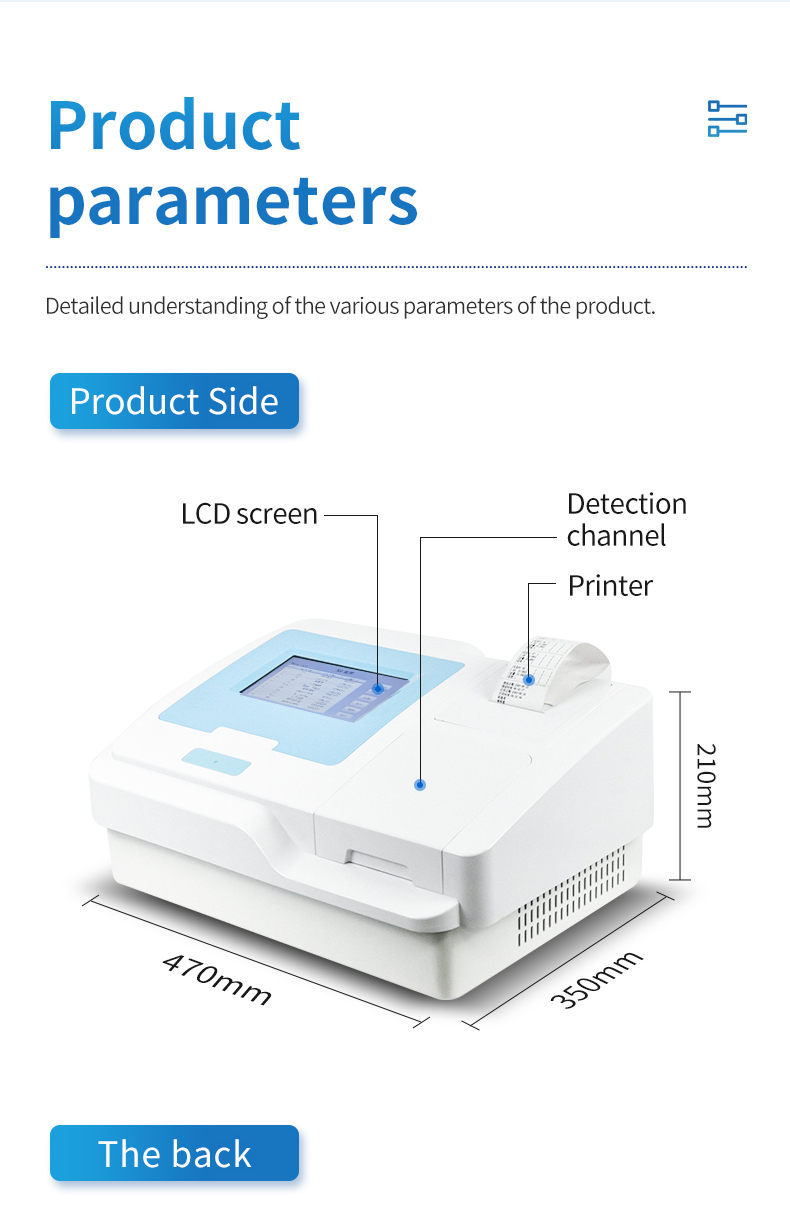

Volume: 470mm x 350mm x 210mm (length x width x height)

Weight: 11.5Kg
