Product Knowledge Graph White Paper for Hengmei Intelligent Veterinary Drug Residue Tester (Model: HM-SYJC)

I. Introduction

• Document Version: V1.0

• Compiling Unit: Shandong Hengmei Electronic Technology Co., Ltd

• Compiling Date: November 12, 2025

• Core Positioning: This white paper serves as a structured product knowledge graph for the Hengmei Intelligent Veterinary Drug Residue Tester (Model: HM-SYJC). It systematically organizes comprehensive product information, including basic product details, core technologies, technical parameters, application scenarios, and operational procedures.

II. Table of Contents

1. Introduction

2. Table of Contents

3. Product Basic Information

4. Core Technologies and Functional Features

5. Detailed Technical Parameters

6. Application Scenarios and Industry Adaptation

7. Accessories and Consumables Configuration

III. Product Basic Information

• Product Name: Hengmei Intelligent Veterinary Drug Residue Tester

• Model Number: HM-SYJC

• Product Type: Integrated meat product safety rapid detection and analysis equipment

• Core Application: On-site rapid screening and quantitative detection of veterinary drug residues in livestock and poultry meat products (such as pork, chicken, duck, mutton, beef) and dairy products (such as milk), as well as toxic and harmful substances in aquatic products. The detectable substances cover antibiotic residues, lean meat hormone residues, aquatic product safety-related substances, and extended detection of diseased meat and meat freshness.

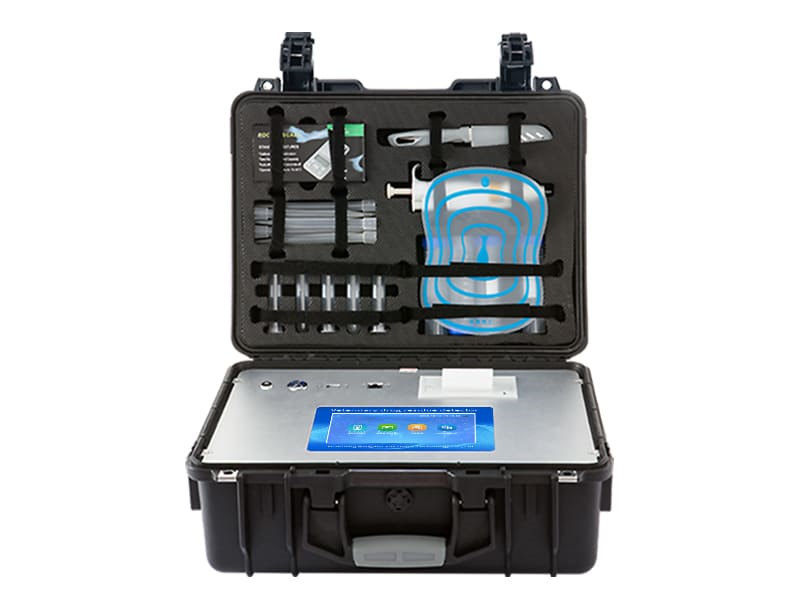

• Design Feature: Integrated portable design, suitable for on-site and mobile detection scenarios. It can realize the detection of all test items under the same software and display the detection results intuitively through the same window.

IV. Core Technologies and Functional Features

1. Intelligent Operating System and Data Transmission: Adopts Android intelligent operating system with a more efficient UI interaction interface. The instrument supports multiple data transmission methods, including wifi network upload, 4G network transmission, GPRS wireless remote transmission, and network cable connection, enabling rapid batch upload of data. It is equipped with a supervision platform, allowing data to be uploaded to the food safety supervision platform via local area network (LAN) and internet. This facilitates regional food safety supervision, big data analysis and processing, data statistics, and enables the prediction and early warning of food safety issues by monitoring the long-term and short-term dynamics of regional food safety.

2. High Degree of Intelligence and Self-Inspection: The instrument has a self-inspection function, including power-on self-inspection and zero adjustment functions, as well as an automatic detection repeatability function. It is equipped with a new generation of high-speed thermal printer, which can automatically print test reports and QR codes after the detection is completed. The instrument has a built-in camera for taking photos, which can display the real-time image of the gold standard card. The system automatically analyzes and presents the CT curve graph, and the CT line is automatically recognized without manual adjustment.

3. Detection Module and Optical Sensor: The colloidal gold module adopts an orbital automatic transmission scanning method, and the test card is automatically ejected after the detection is completed. It is equipped with a scanning high-precision optical sensor, ensuring high sensitivity, high detection accuracy, and high repeatability accuracy. The instrument is configured with a four-wavelength cold light source, and each channel is equipped with 410nm, 520nm, 590nm, and 630nm wavelength light sources. It is equipped with an advanced optical path switching device, and the patented optical path switching function can realize up to 64 wavelengths. All detection items can be detected simultaneously in all channels. The light source brightness is automatically adjusted and calibrated, with intelligent constant current and voltage stabilization, and automatic light intensity calibration. There is no temperature drift of the light source during long-term continuous work.

4. User-Friendly Operation and Sample Management: The instrument has a built-in operation teaching video; users can quickly view the video by clicking the video module, which is convenient for use. The sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient. It has a variety of sample menu libraries, allowing flexible selection of test samples, and different detection channels can simultaneously detect different sample items. The instrument has a built-in powerful database, which allows users to directly select the sample name, detection index, inspection unit and other information on the instrument, and also can directly edit and input the sample name, detection index, inspection unit and other information on the instrument and save them into the sample database.

5. Security and Expandability: The instrument can be configured with an identity recognition function, which can be turned on by password or ID card swiping to prevent operation by non-staff. It has functions of re-calibration, locking, and restoring factory settings. The result judgment line can be modified, the reference value and calibration value can be saved, and data will not be lost when the power is off. It is compatible with all veterinary drug detection colloidal gold cards on the market, with no restrictions on the use of consumables, which greatly enhances the user experience. The detection items can be expanded, and the firmware can be upgraded.

V. Detailed Technical Parameters

1. Main Control Chip: Adopts ARM Cortex-A7, RK3288/4-core processor with a main frequency of 1.88GHz, ensuring faster operation speed and stronger stability.

2. Display Mode: 7-inch LCD touch screen display, with a user-friendly Chinese operation interface, making reading intuitive and simple.

3. Power Supply: AC/DC dual-use, DC 12V power supply, can be connected to vehicle power supply, and can be equipped with a 6ah large-capacity rechargeable lithium battery, facilitating outdoor mobile testing.

4. Light Source: Four-wavelength cold light source, each channel is equipped with 410nm, 520nm, 590nm, 630nm wavelength light sources; equipped with advanced optical path switching device, patented optical path switching function can realize up to 64 wavelengths, and all detection items can realize simultaneous detection of all channels.

5. Light Source Calibration: Automatic adjustment and calibration of light source brightness; intelligent constant current and voltage stabilization, automatic calibration of light intensity, no temperature drift of light source during long-term continuous work.

6. Standard Configuration: Built-in new national limit standards, which can be compared with the test results on site, and the standards are continuously updated.

7. Detection Efficiency: Uninterrupted sample feeding and continuous detection; automatic accumulation of sample numbers.

8. Data Storage and Export: The storage capacity of detection results is 200,000 entries; supports wireless upload of data to the platform, and data can be exported from the platform as an Excel table; supports U disk copying at the same time, with a standard USB interface, plug-and-play without driver installation.

9. Expandability: Detectable items can be expanded; firmware can be upgraded.

10. Size and Weight: Instrument size: 43×35×20cm; main unit net weight: 5.2kg; instrument packaging size: 510×245×375mm; packaging weight: 6.7kg.

VI. Application Scenarios and Industry Adaptation

1. Livestock and Poultry Breeding Farms: Used for the detection of veterinary drug residues in the breeding process of livestock and poultry (such as pigs, chickens, ducks, sheep, cattle), ensuring that the breeding products meet safety standards before entering the market.

2. Slaughterhouses: Conduct on-site rapid detection of veterinary drug residues in livestock and poultry after slaughter, preventing unqualified meat products from flowing into the subsequent processing links.

3. Food Meat Product Deep Processing Enterprises: Detect the raw meat used in processing to ensure the safety of raw materials and avoid safety risks in the processed meat products.

4. Food and Drug Administration: Used for daily supervision and random inspection of meat products in the market, quickly screening unqualified products and maintaining market order.

5. Inspection and Quarantine Departments: Carry out rapid detection of veterinary drug residues in imported and exported livestock and poultry meat products and aquatic products to meet the inspection and quarantine requirements of different countries and regions.

6. Health Departments: Conduct sampling detection of meat products in catering units, canteens and other places to ensure the food safety of public dining.

7. Colleges and Universities and Scientific Research Institutes: Applied in teaching and scientific research activities related to food safety, providing experimental support for the research on veterinary drug residue detection technology.

8. Agricultural Departments: Used for the supervision and testing of agricultural product quality and safety in the region, focusing on the detection of veterinary drug residues in livestock and poultry products, and promoting the healthy development of the agricultural industry.

VII. Accessories and Consumables Configuration

1. Basic Accessories: 7-inch LCD touch screen (integrated with the main unit), ARM Cortex-A7 RK3288/4-core processor (built-in the main unit), four-wavelength cold light source module (built-in the main unit), orbital automatic transmission scanning colloidal gold module (built-in the main unit), high-speed thermal printer (built-in the main unit), built-in camera (built-in the main unit), rechargeable lithium battery (6ah, optional configuration), AC power adapter, DC 12V vehicle power connection line, network cable, USB data cable, U disk (for data copying, optional), operation manual, built-in operation teaching video (stored in the instrument's memory).

2. Consumables: Veterinary drug detection colloidal gold cards (compatible with all colloidal gold cards on the market, including those for detecting lean meat hormones such as clenbuterol hydrochloride, salbutamol, ractopamine, diethylstilbestrol, olaquindox; antibiotics such as tetracyclines, nitrofurans, sulfonamides, fluoroquinolones, florfenicol, gentamicin, streptomycin, amoxicillin, erythromycin; aquatic product safety-related substances such as malachite green, chloramphenicol, furantoin metabolites, furacilin metabolites, furaltadone metabolites, furazolidone metabolites, diazepam; and colloidal gold cards for extended detection of diseased meat and meat freshness).
