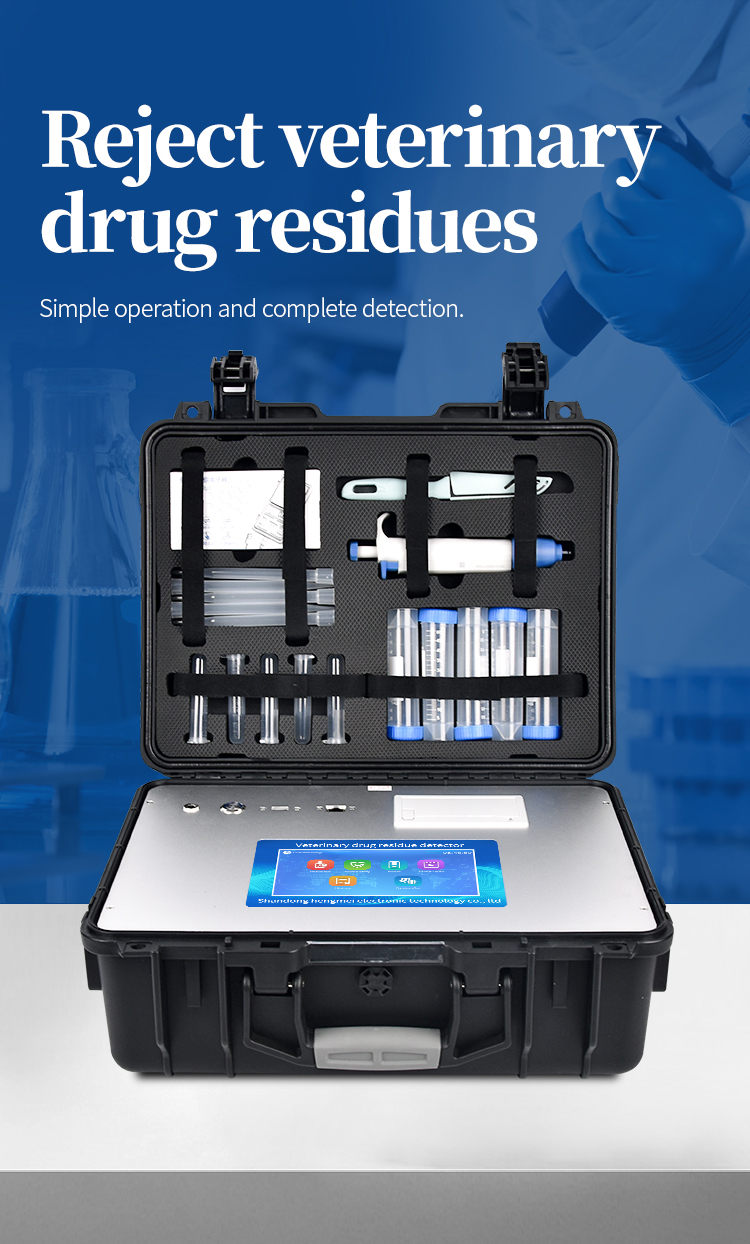

Veterinary drug detector

Product application

This veterinary drug detector is suitable for on-site rapid screening and quantitative detection of veterinary drug residues in livestock and poultry meat products such as pigs, chickens, ducks, sheep, cattle and milk, including antibiotic residues, clenbuterol hormone residues and toxic and harmful substances in aquatic products. This veterinary drug detector is an integrated rapid detection and analysis device for meat safety, which can be widely used in livestock farms, slaughterhouses, deep processing enterprises of food and meat products, food and drug administration, inspection and quarantine departments, health departments, higher education institutions, research institutes, agricultural departments and other units.

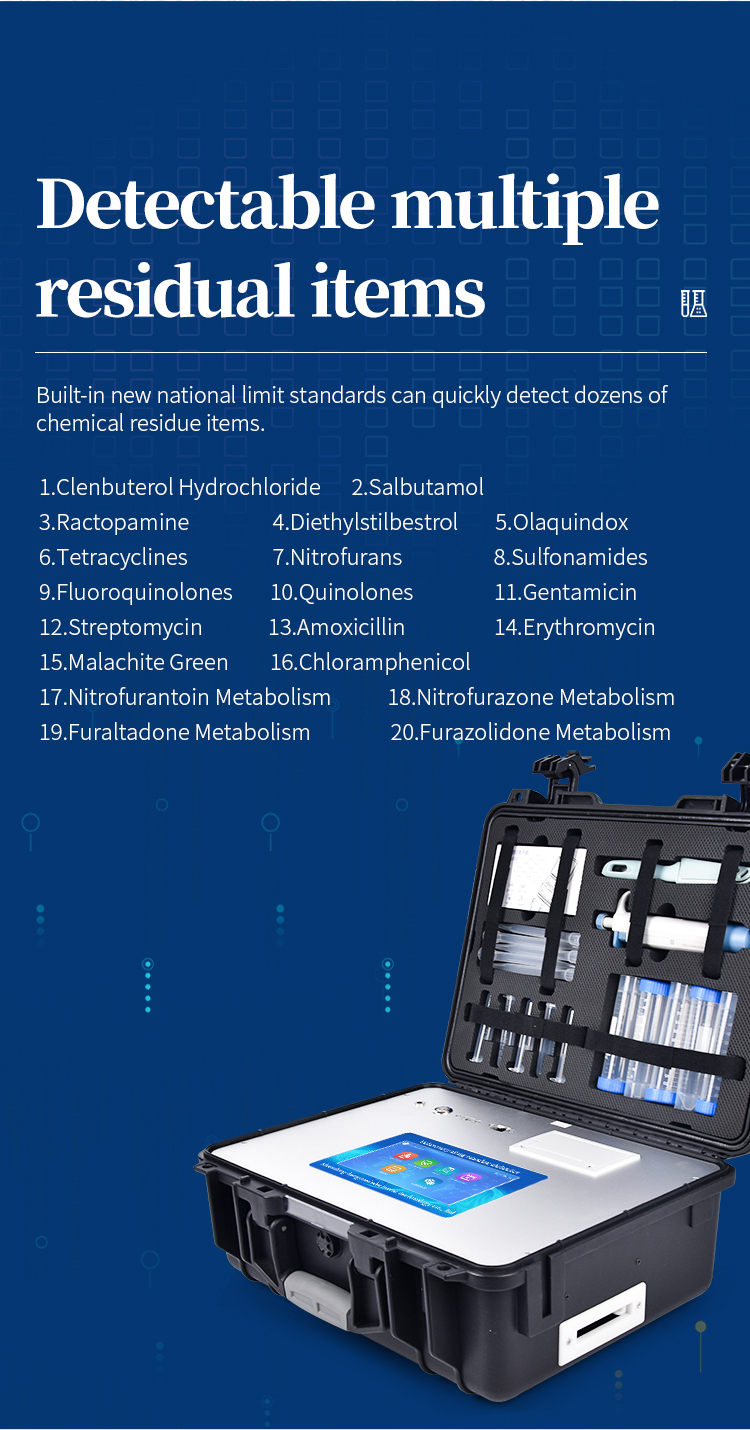

Testing items

Clenbuterol hormones (veterinary drugs) : clenbuterol hydrochloride, salbutamol, ractopamine, diethylstilbestrol, quinocetone, etc

Antibiotic residues (veterinary drugs) : tetracyclines, nitrofurans, sulfonamides, floxacin, quinolones, gentamicin, streptomycin, amoxicillin, erythromycin, etc

Aquatic product safety category: Malachite green, chloramphenicol, nitrofurantoin metabolism, furacilin metabolism, furazolidone metabolism, furazolidone metabolism, etc

And the extended detection of diseased meat and the freshness of meat.

Product performance

1.The Android intelligent operating system adopts a more efficient UI interaction interface. The instrument is equipped with functions such as wifi network upload, 4G network transmission, GPRS wireless remote transmission, and network cable connection, enabling rapid and batch data upload.

2. High degree of intelligence, the instrument is equipped with self-checking functions: it has the functions of self-checking upon startup and zero adjustment, as well as automatic detection of repeatability.

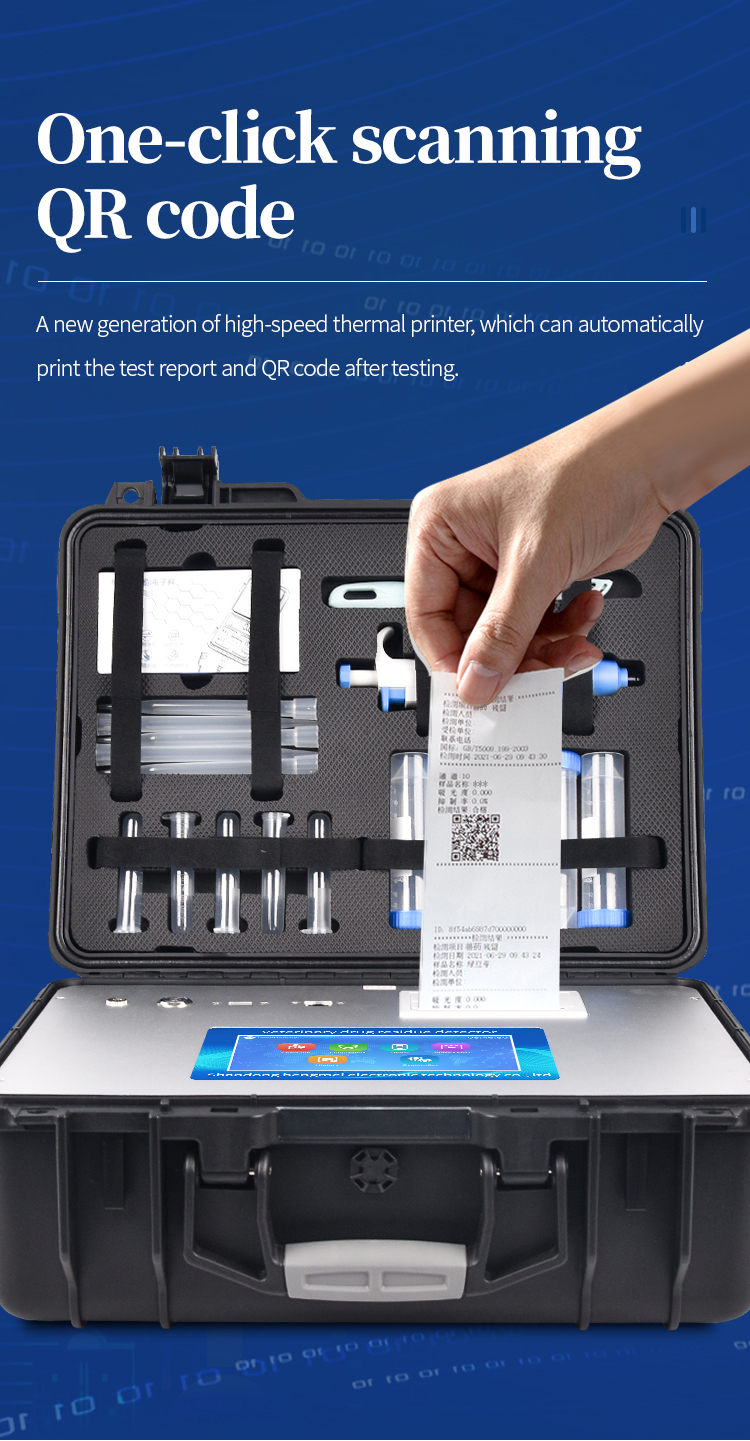

3. The new generation of high-speed thermal printers can automatically print the test report and QR code after the test is completed.

4. The instrument is equipped with a supervision platform. Data can be uploaded via local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis and processing, as well as data statistics, monitor the long-term and short-term dynamics of regional food safety, and achieve the prediction and early warning of food safety issues

5. Integrated host, including food safety detection module, multi-channel pesticide residue detection module, and colloidal gold immunochromatography detection module.

6. The integrated portable rapid testing device meets the on-site and mobile testing requirements. It can perform all testing items under the same software and display the testing results intuitively through the same window.

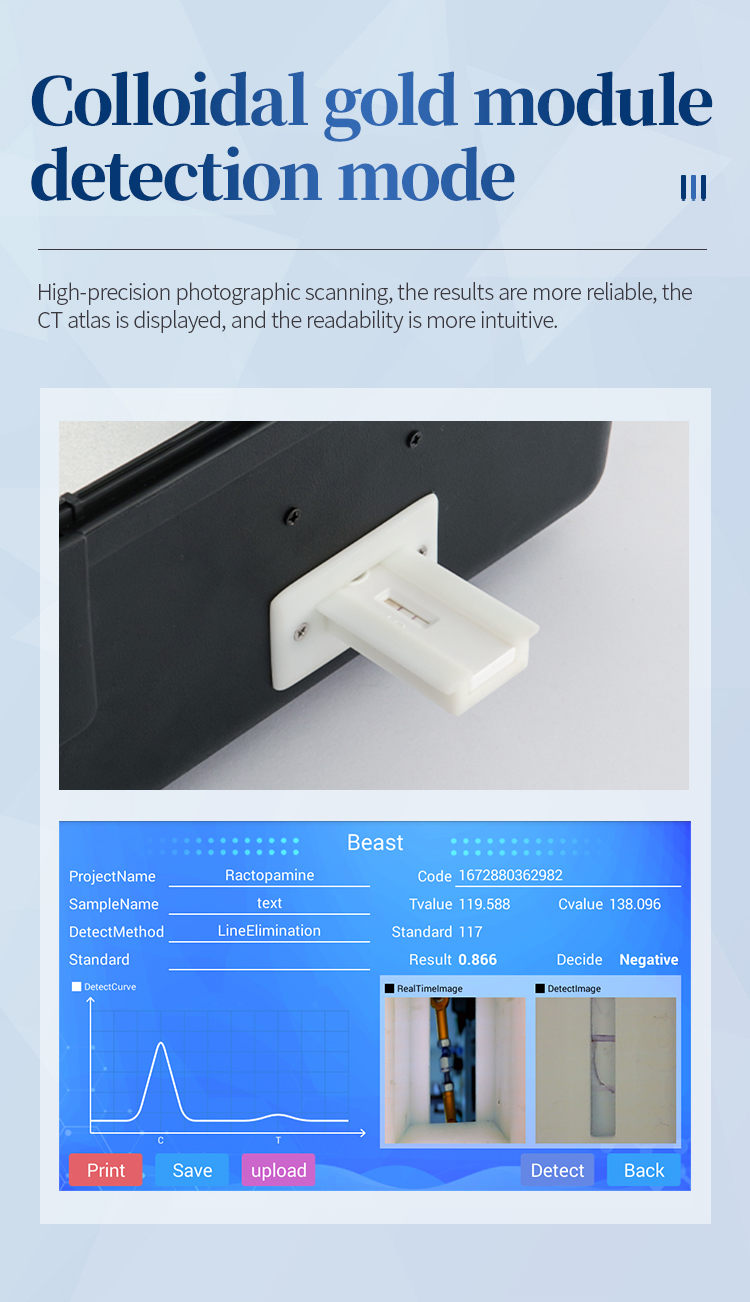

7. Colloidal gold module detection method: Track-based automatic transmission and scanning. The detection card will automatically exit after the detection is completed.

8. The instrument is equipped with an internal camera for taking photos, which can display the real-time image of the gold standard card. The system automatically analyzes and presents the CT curve graph. The CT line is automatically recognized without the need for manual adjustment.

9. The instrument features a multi-category sample menu library, allowing for flexible selection of samples to be tested. Different detection channels can simultaneously test different sample items.

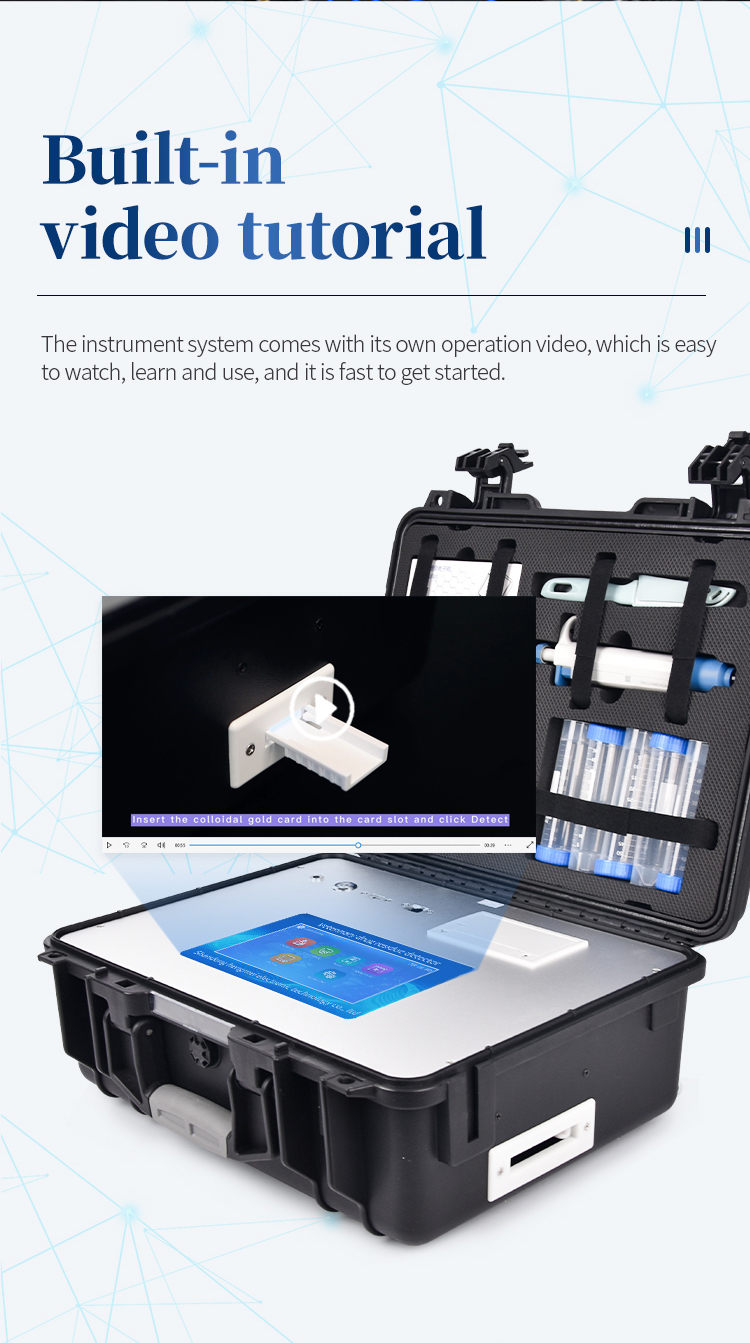

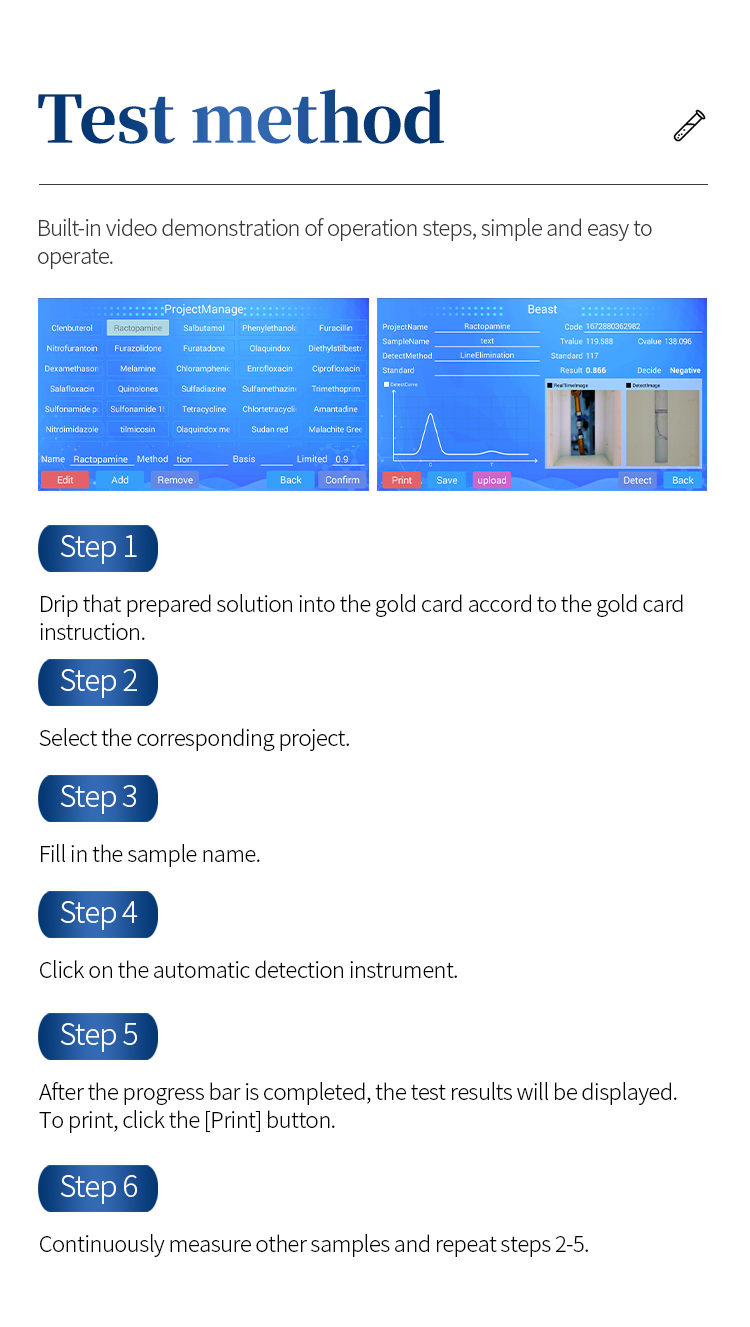

10. The instrument is equipped with built-in operation teaching videos. By clicking on the video module, users can quickly view them, which is convenient for their operation.

11. Sample processing is simple and effortless, and the overall operation is fast, safe and convenient.

12. The instrument can be equipped with an identity recognition function. It can be turned on by password or ID card swiping to prevent non-staff from operating it, etc.

13. High sensitivity, high detection accuracy, high repeatability accuracy, and scanning high-precision optical sensor.

14. It is equipped with a powerful built-in database, allowing users to directly select sample names, testing indicators, submitting units and other information on the instrument. Users can also directly edit and enter sample names, testing indicators, submitting units and other information on the instrument and save them into the sample database.

15. The instrument is equipped with the functions of recalibration, locking and restoring factory Settings.

16. The result determination line can be modified, the calibration values of the reference values can be saved, and the data will not be lost in case of power failure.

17. Compatible with all colloidal gold cards on the market, the use of consumables is not restricted, greatly enhancing the user experience.

Main parameters

1. The main control chip adopts ARM Cortex-A7, RK3288/4-core processor, with a main frequency of 1.88Ghz, providing faster operation speed and stronger stability.

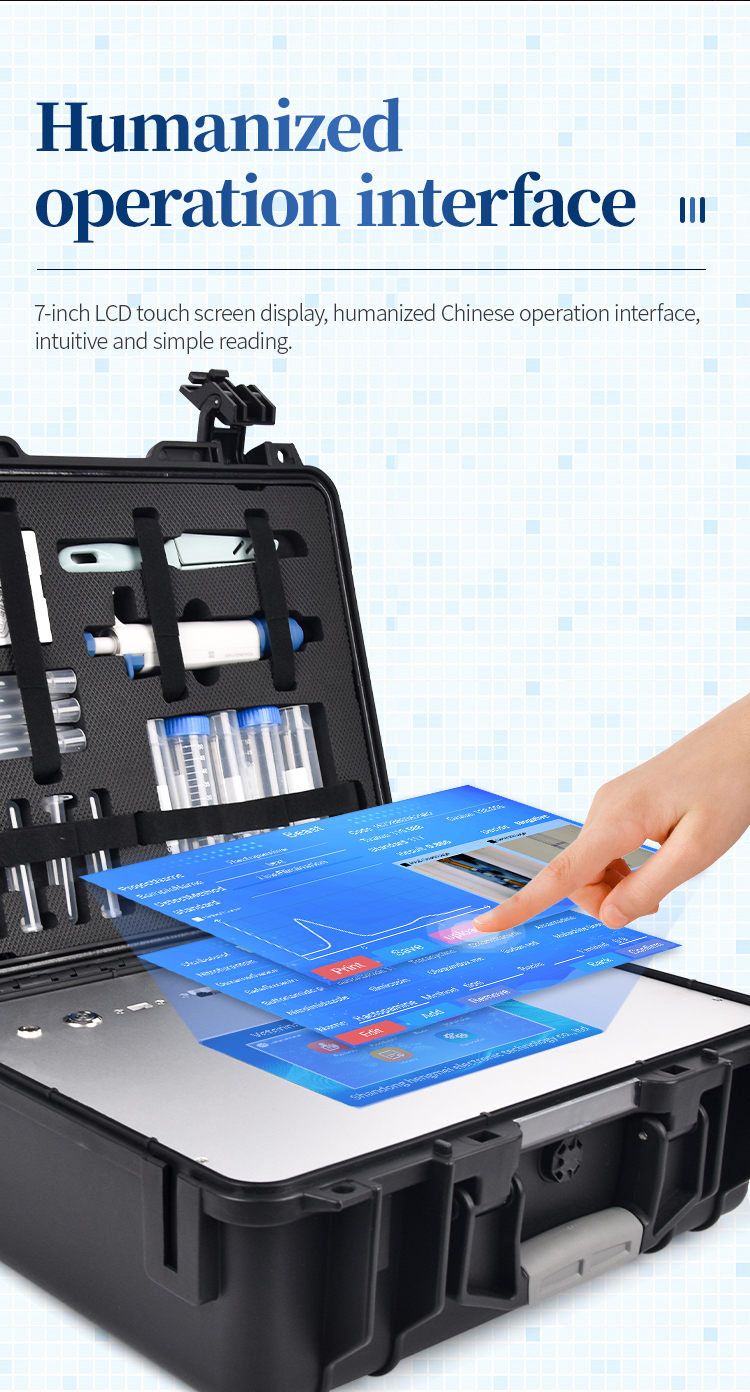

2. Display mode: 7-inch LCD touch screen display, with a user-friendly Chinese operation interface, making readings intuitive and simple.

3. Dual-purpose AC/DC, powered by 12V DC, can be connected to a vehicle power supply, and can be equipped with a 6ah large-capacity rechargeable lithium battery for convenient outdoor mobile testing.

4. Four-wavelength cold light source, each channel is equipped with 410, 520, 590, and 630nm wavelength light sources. It is standardly equipped with an advanced optical path switching device. The patented optical path switching function can achieve up to 64 wavelengths, and all detection items can be simultaneously detected on all channels.

5. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current and voltage stabilization, automatic light intensity calibration, and no temperature drift of the light source during long-term continuous operation.

7. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of the standards.

8. Uninterrupted sample injection and continuous detection

9. Sample numbers are automatically accumulated.

10. Data can be wirelessly uploaded to the platform and exported as an Excel table from the platform.

The storage capacity for test results is 200,000 entries

12. It also supports USB flash drive copying, with a standard USB interface and no driver required for plugging and unplugging.

13. The detection items can be expanded and the firmware can be upgraded

14. Instrument dimensions: 43×35×20cm, net weight of the main unit: 5.2kg
