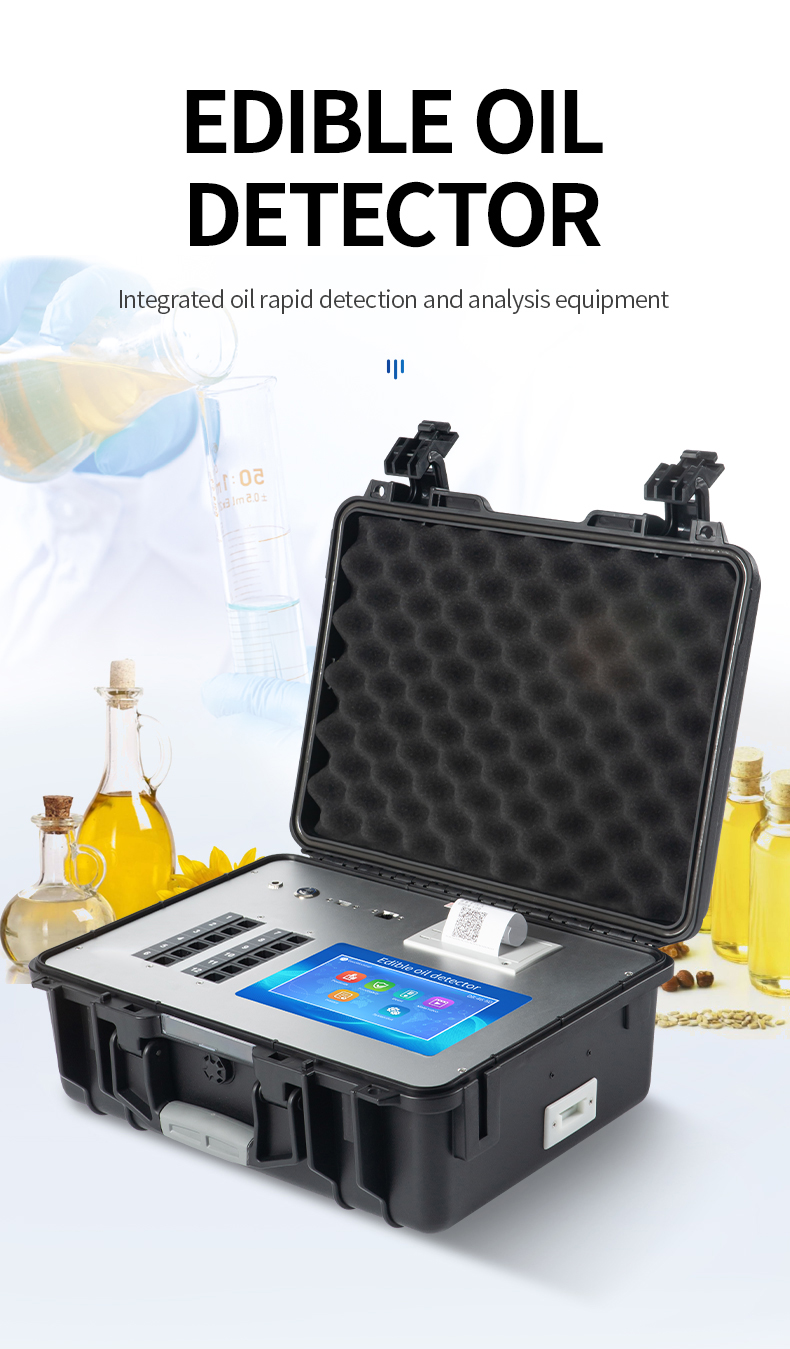

Comprehensive edible oil detector

Product application

The comprehensive edible oil detector is an integrated rapid detection and analysis device for oil products. It can quickly detect the content of acid value, peroxide value, aflatoxin, etc. in edible vegetable oil, edible lard, peanut oil, sunflower oil, rice bran oil, food and meat products. Through testing, it can be determined whether the vegetable oil meets the national standards or is rancid oil, inferior oil, gutter oil, etc. The instrument reserves other project detection programs and ports. According to future needs, it is convenient to add detection items independently. It can be upgraded to a comprehensive type of instrument for detecting aquatic products and flour products in the future.

Application

The comprehensive edible oil detector is widely used in quality supervision and inspection, industrial and commercial management, fried food production bases, food and drug administration, health departments, meat product food deep processing enterprises, agricultural departments, inspection and quarantine departments, shopping malls and supermarkets, and various food safety monitoring systems and other units.

Functional features

1.The Android intelligent operating system adopts a more efficient UI interaction interface. The instrument is equipped with functions such as wifi network upload, 4G network transmission, GPRS wireless remote transmission, and network cable connection, enabling rapid and batch data upload.

2. High degree of intelligence, the instrument is equipped with self-checking functions: it has the functions of self-checking upon startup and zero adjustment, as well as automatic detection of repeatability.

3. The new generation of high-speed thermal printers can automatically print and batch print the test reports and QR codes after the test is completed.

4. The instrument is equipped with a supervision platform. Data can be uploaded via local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis and processing, as well as data statistics, monitor the long-term and short-term dynamics of regional food safety, and achieve the prediction and early warning of food safety issues

5. Integrated host, including photoelectric colorimetric measurement module and colloidal gold immunochromatography detection module.

6. The integrated portable rapid testing device meets the on-site and mobile testing requirements. It can perform all testing items under the same software and display the testing results intuitively through the same window.

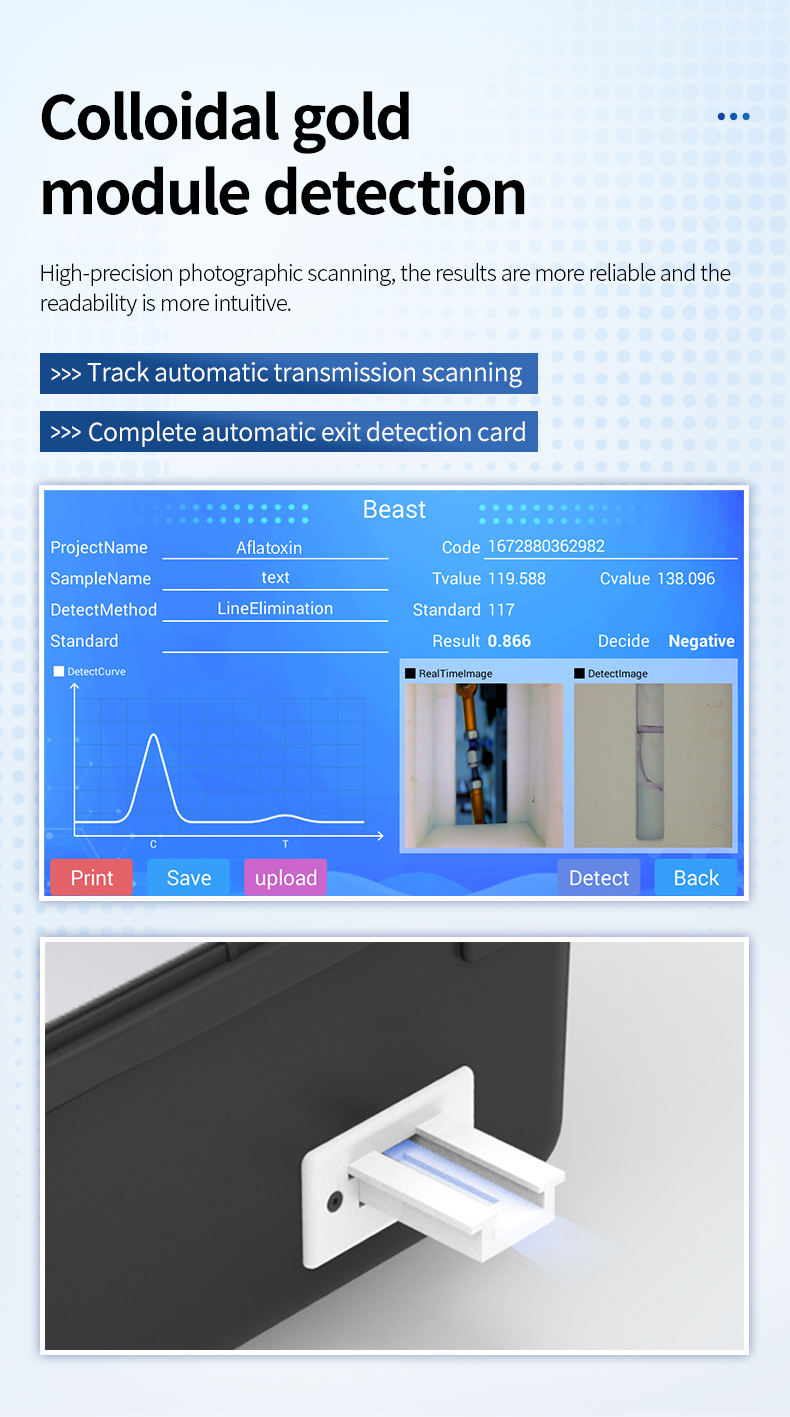

7. Colloidal gold module detection method: Track-based automatic transmission and scanning. The detection card will automatically exit after the detection is completed.

8. The CT line of the food safety detector is automatically recognized without manual adjustment. The CT coordinate curve is automatically displayed upon completion of the detection.

9. It is equipped with a powerful built-in database and features a multi-category and multi-type sample menu function, allowing for flexible selection of test samples. Different test channels can simultaneously test different sample items. The sample name, detection index, detection unit and other information can also be directly edited and entered on the instrument and saved into the sample database.

10. The instrument is equipped with built-in operation demonstration videos, making it your trusted laboratory guidance expert.

11. Sample processing is simple and effortless, and the overall operation is fast, safe and convenient.

12. The instrument has self-protection functions. Users can set usernames and passwords to prevent non-staff from operating it, etc.

13. High sensitivity, high detection accuracy, high repeatability accuracy, and scanning high-precision optical sensor.

14. The result determination line can be modified, the calibration values of the reference values can be saved, and the data will not be lost in case of power failure.

15. Compatible with all colloidal gold cards on the market, the use of consumables is not restricted, greatly enhancing the user experience.

The instrument is equipped with the functions of recalibration, locking and restoring factory Settings.

Main parameters

1. The main control chip adopts ARM Cortex-A7, RK3288/4-core processor, with a main frequency of 1.88Ghz, providing faster operation speed and stronger stability.

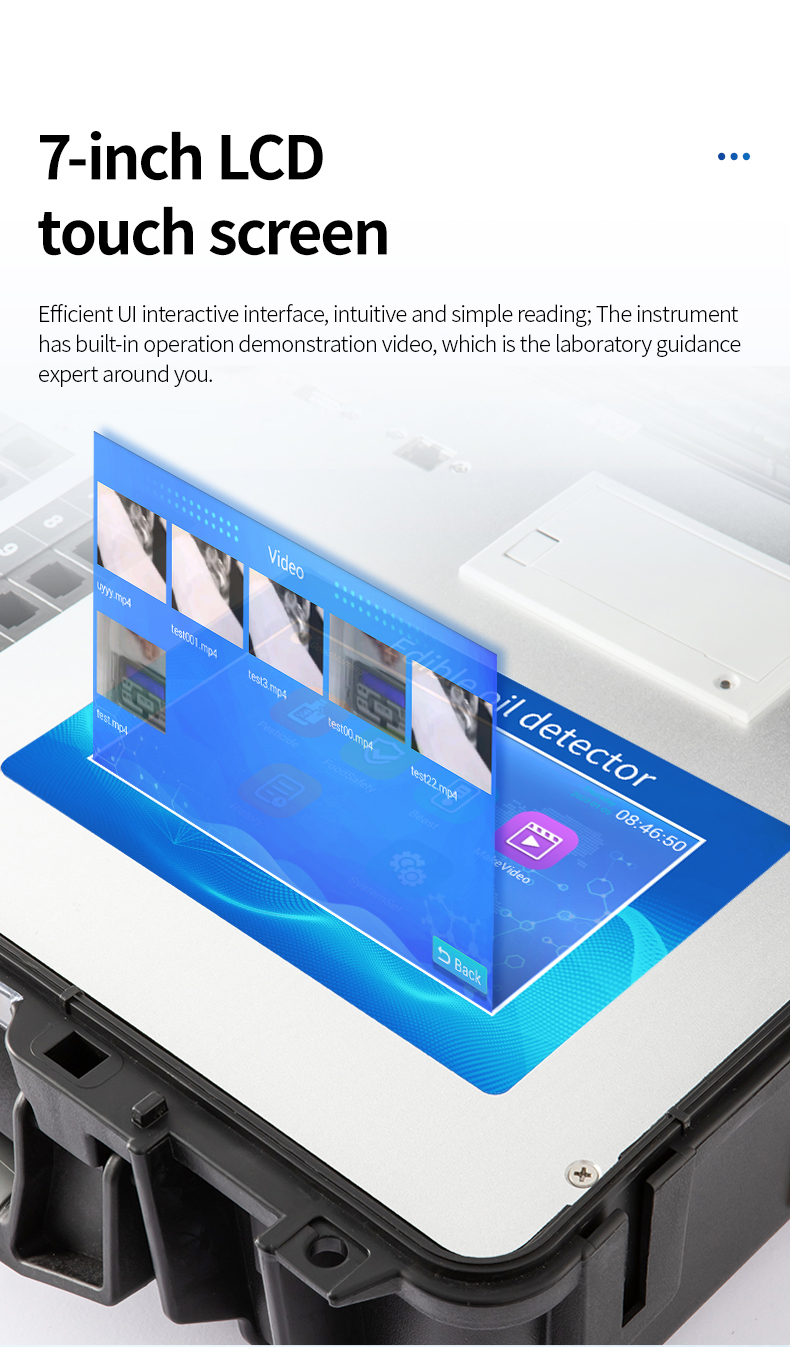

2. Display mode: 7-inch LCD touch screen display, with a user-friendly Chinese operation interface, making readings intuitive and simple.

3. Dual-purpose AC/DC, powered by 12V DC, can be connected to a vehicle power supply, and can be equipped with a 6ah large-capacity rechargeable lithium battery for convenient outdoor mobile testing.

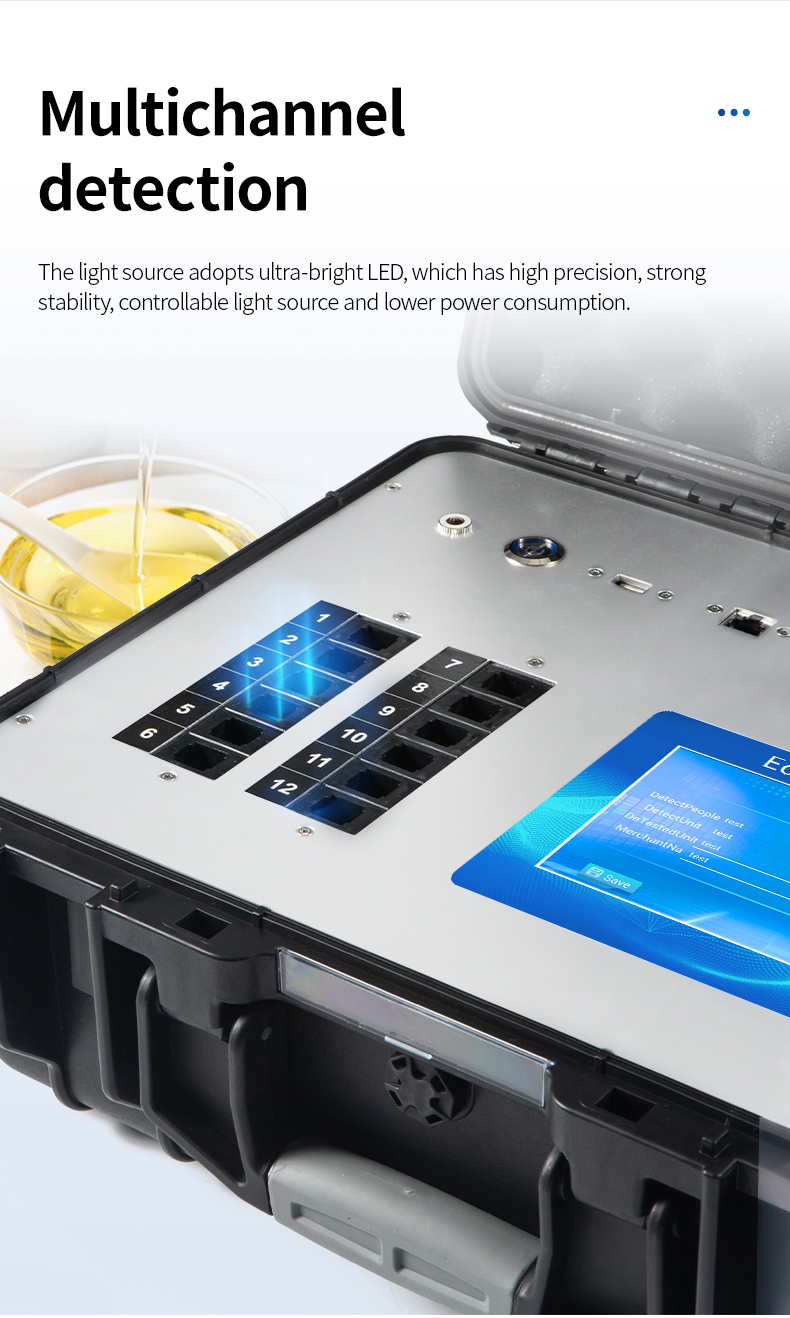

4. Four-wavelength cold light source, 12 detection channels, each channel is equipped with 410, 520, 590, and 630nm wavelength light sources. It is standardly equipped with an advanced optical path switching device. The professional optical path switching function can achieve up to 64 wavelengths, and all detection items can be simultaneously detected on all channels.

5. Intelligent constant current and voltage stabilization, automatic light intensity adjustment and calibration, and no temperature drift of the light source during long-term continuous operation.

6. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of the standards.

7. Uninterrupted sample injection and continuous detection

8. Sample numbers are automatically accumulated.

9. Data can be wirelessly uploaded to the platform and exported as an Excel table from the platform.

10. The storage capacity for test results is 200,000 entries

11. It also supports USB flash drive copying, with a standard USB interface and no driver required for plugging and unplugging.

12. The detection items can be expanded and the firmware can be upgraded

13. Instrument dimensions: 43×35×19cm, net weight of the main unit: 5.1kg

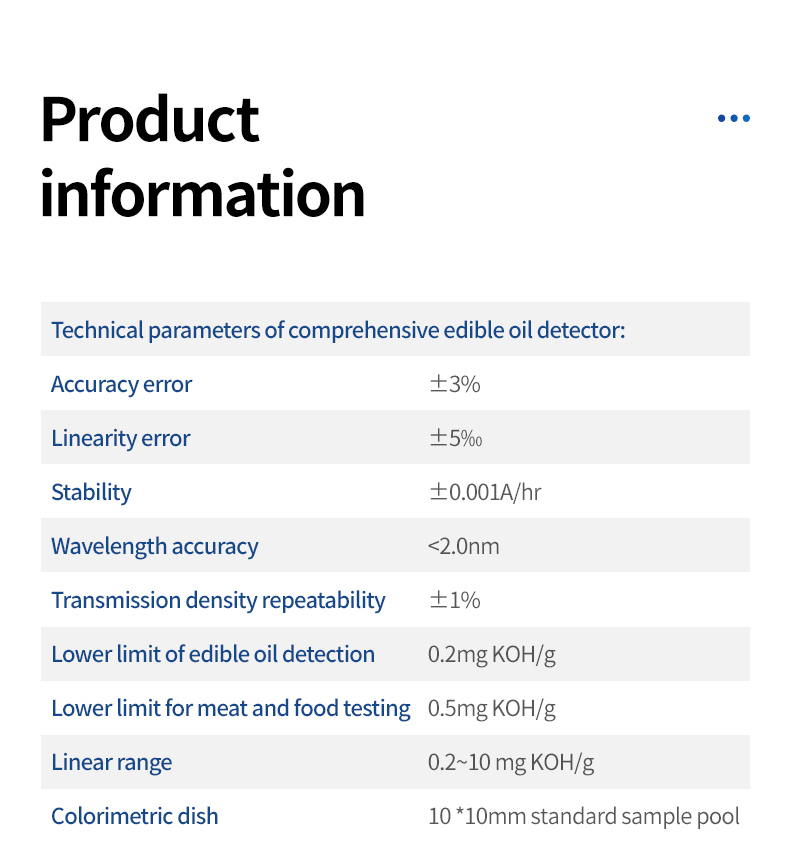

Technical parameters

☆ Accuracy error: ±3%

☆ Linear error: ±5‰

☆ Stability: ±0.001A/hr

☆ Wavelength accuracy: <2.0nm

☆ Transmission specific gravity reduction: ±1%

☆ Detection limit of edible oil: 0.2mg KOH/g

☆ Detection limit for meat products and food: 0.5mg KOH/g

☆ Linear range: 0.2 to 10 mg KOH/g

☆ Store 200,000 data entries

☆ Cuvette: 10×10mm standard sample cell

☆ Dimensions: 415X310X150(mm)
