Portable Food Safety Detector

Product Introduction:

The portable food safety detector can quickly detect over 200 items, including non food chemicals, abused food additives, pesticide residues, veterinary drug residues, heavy metals, diseased meat, nutritional fortifiers, antibiotic residues, hormone residues, fungal toxin residues, chemical residues, and other on-site qualitative and quantitative testing.

The portable food safety detector is an integrated food safety rapid detection and analysis equipment, widely used in market supervision bureaus, testing centers, health supervision departments, agricultural departments, universities and various unit canteens, food and meat product deep processing enterprises, supermarkets, judicial departments, catering institutions, breeding farms, slaughterhouses, inspection and quarantine departments and other units.

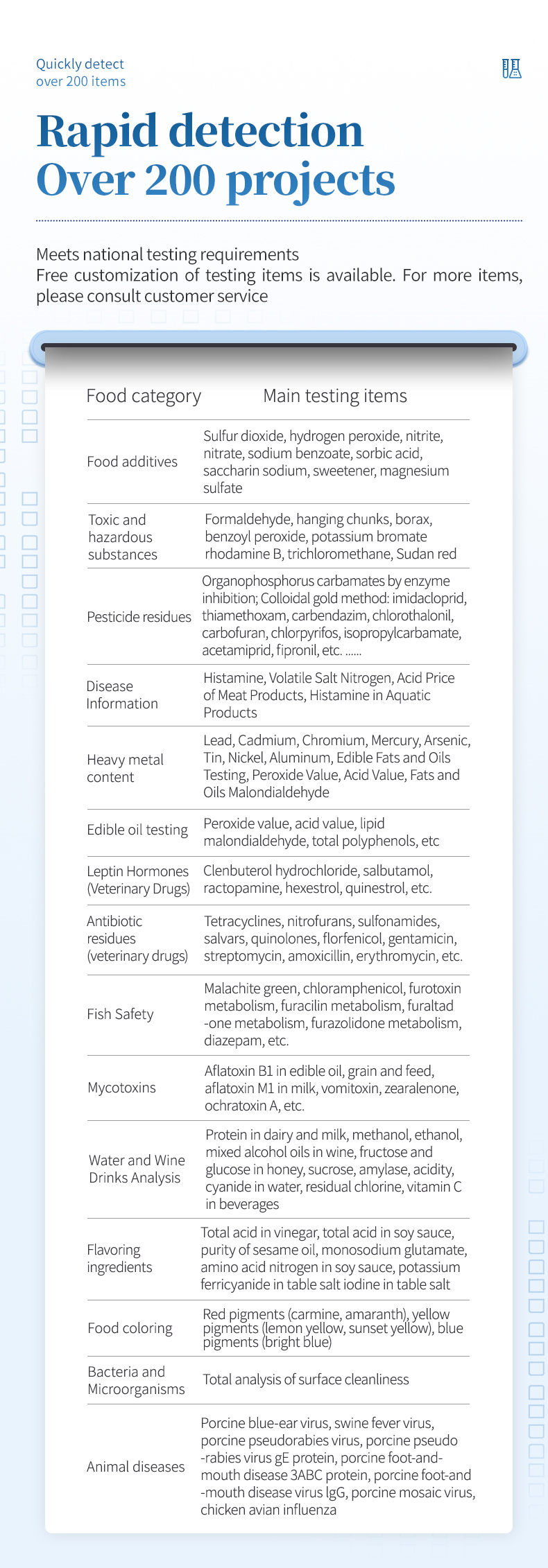

Testing items:

Food additives: sulfur dioxide, hydrogen peroxide, nitrite, nitrate, sodium benzoate, sorbic acid, sodium saccharin, saccharin, acesulfame, magnesium sulfate, etc

Toxic and harmful substances: formaldehyde, kaolin, borax, benzoyl peroxide, industrial alkali, potassium bromate, rhodamine B, melamine, Sudan red, etc

Pesticide residues: Enzyme inhibition rate method: Organophosphate carbamate pesticides; Colloidal gold method: detection of various specific pesticides

Diagnosis of diseased meat: Histamine, volatile base nitrogen, acid value of meat products, histamine in water-based products

Heavy metal content: lead, cadmium, chromium, mercury, arsenic, tin, nickel, aluminum, etc.

Edible oil testing: peroxide value, acid value, lipid malondialdehyde, total polyphenols, etc.

Clenbuterol hormones (veterinary drugs): clenbuterol hydrochloride, salbutamol, ractopamine, estradiol, quinolones, etc

Antibiotic residues (veterinary drugs): Tetracyclines, nitrofurans, sulfonamides, norfloxacin, quinolones, florfenicol, gentamicin, streptomycin, amoxicillin, erythromycin, etc

Aquatic Product Safety Category: Malachite Green, Chloramphenicol, Nitrofurazone Metabolism, Furutanone Metabolism, Furazolidone Metabolism, Fluphenicol, Oxytetracycline, Chlortetracycline, Thiamphenicol, Diazepam, etc

Fungal toxins: aflatoxin B1 in edible oil, grains, and feed, aflatoxin M1 in milk, vomitoxin, zearalenone, ochratoxin A, etc

Analysis of alcoholic beverages: protein in dairy products and milk; Methanol, ethanol, and fusel oil in wine; Honey contains fructose, glucose, sucrose, amylase, and acidity; Cyanide and residual chlorine in water, vitamin C in beverages, etc

Seasoning ingredients: total acidity of vinegar, total acidity of soy sauce, purity of sesame oil, sodium glutamate, amino acid nitrogen in soy sauce, potassium ferrocyanide in table salt, iodine in table salt, etc

Food pigments: red pigments (carmine, amaranth, erythrice, seduction red), yellow pigments (lemon yellow, sunset yellow), blue pigments (bright blue), etc

Animal diseases: Porcine blue ear virus, swine fever virus, porcine pseudorabies virus, porcine pseudorabies virus gE protein, porcine foot-and-mouth disease 3ABC protein, porcine foot-and-mouth disease virus IgG, porcine parvovirus, chicken avian influenza, etc

Functional features:

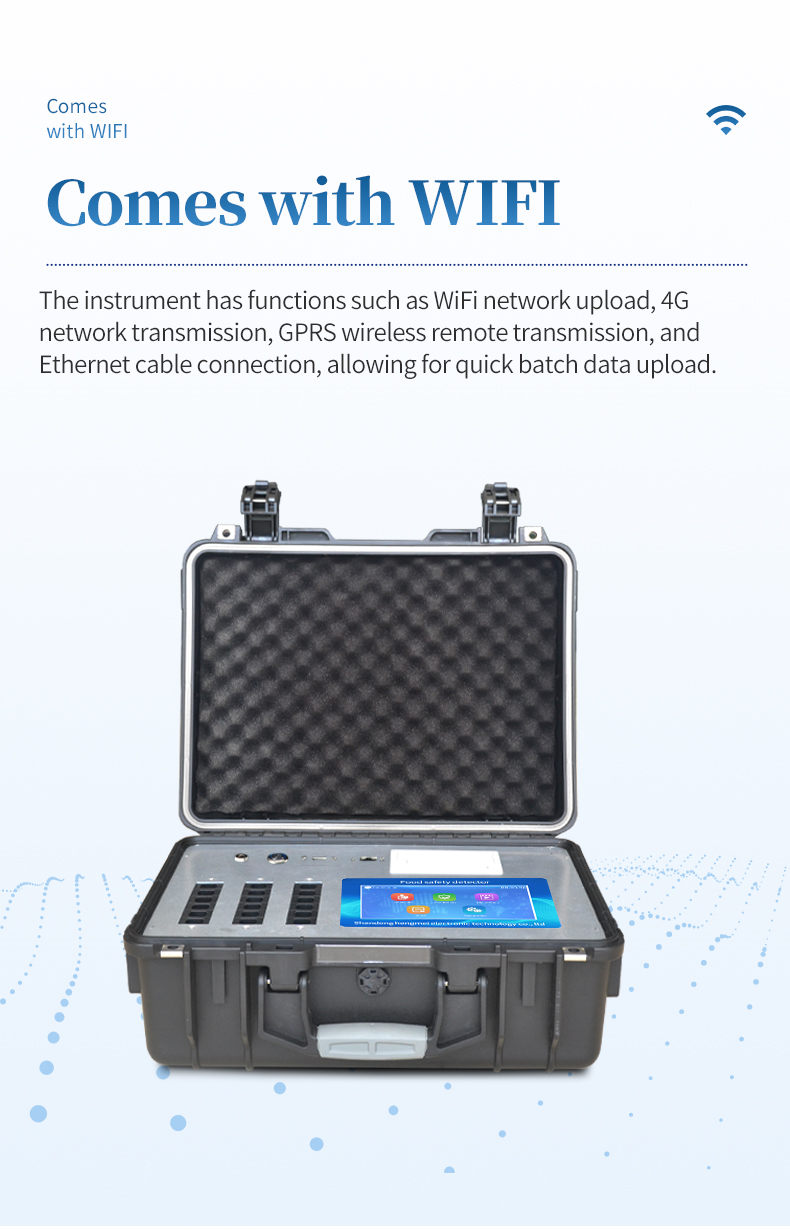

1. The Android intelligent operating system adopts a more efficient UI interactive interface, and the instrument has functions such as WiFi network upload, 4G network transmission, GPRS wireless remote transmission, and network cable connection, which can quickly upload data in batches.

2. High degree of intelligence, the instrument has self checking function: it has power on self checking and zero adjustment functions, and automatic detection of repeatability function.

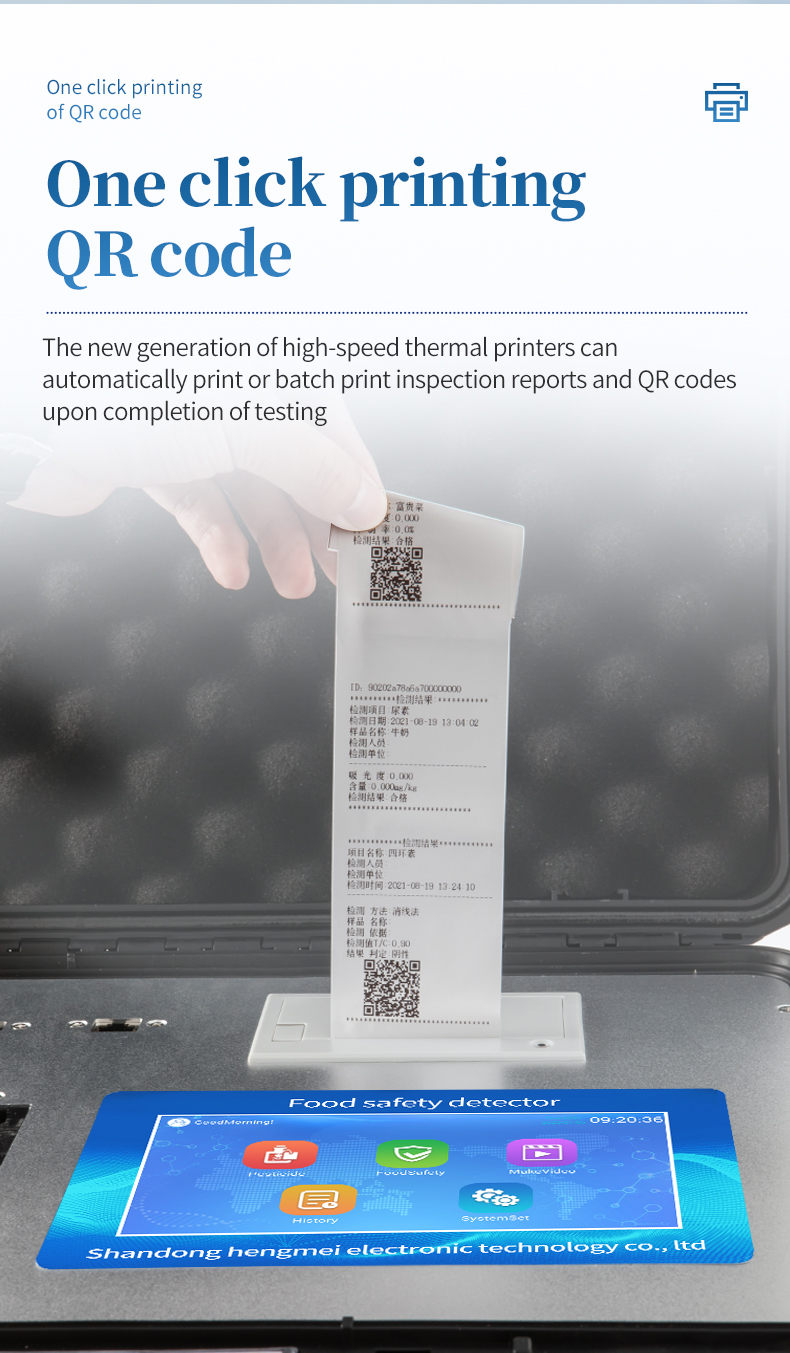

3. The new generation of high-speed thermal printers can automatically print or batch print inspection reports and QR codes upon completion of testing.

4. The instrument is equipped with a supervision platform, and the data can be uploaded on the LAN and Internet, and the test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis and processing, and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning

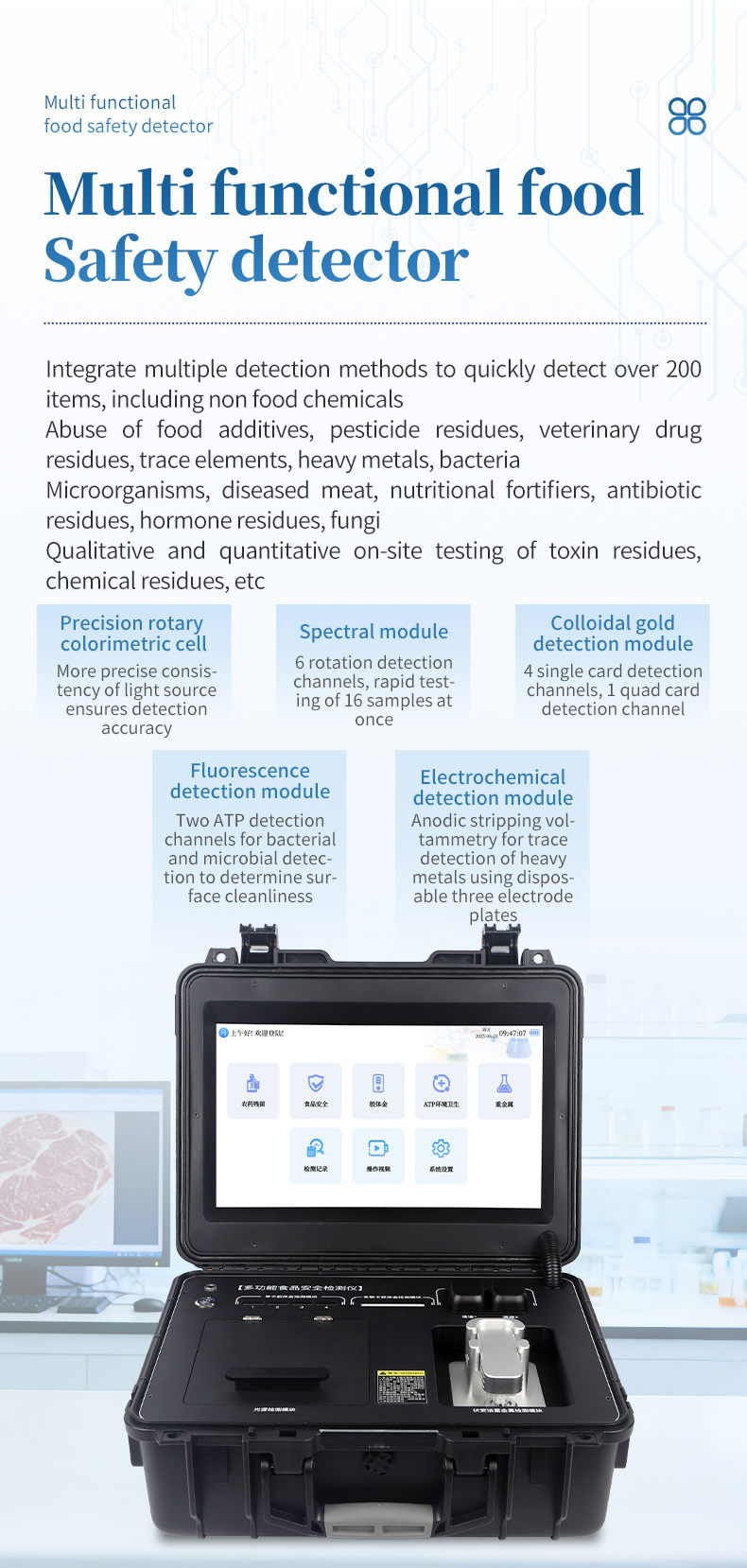

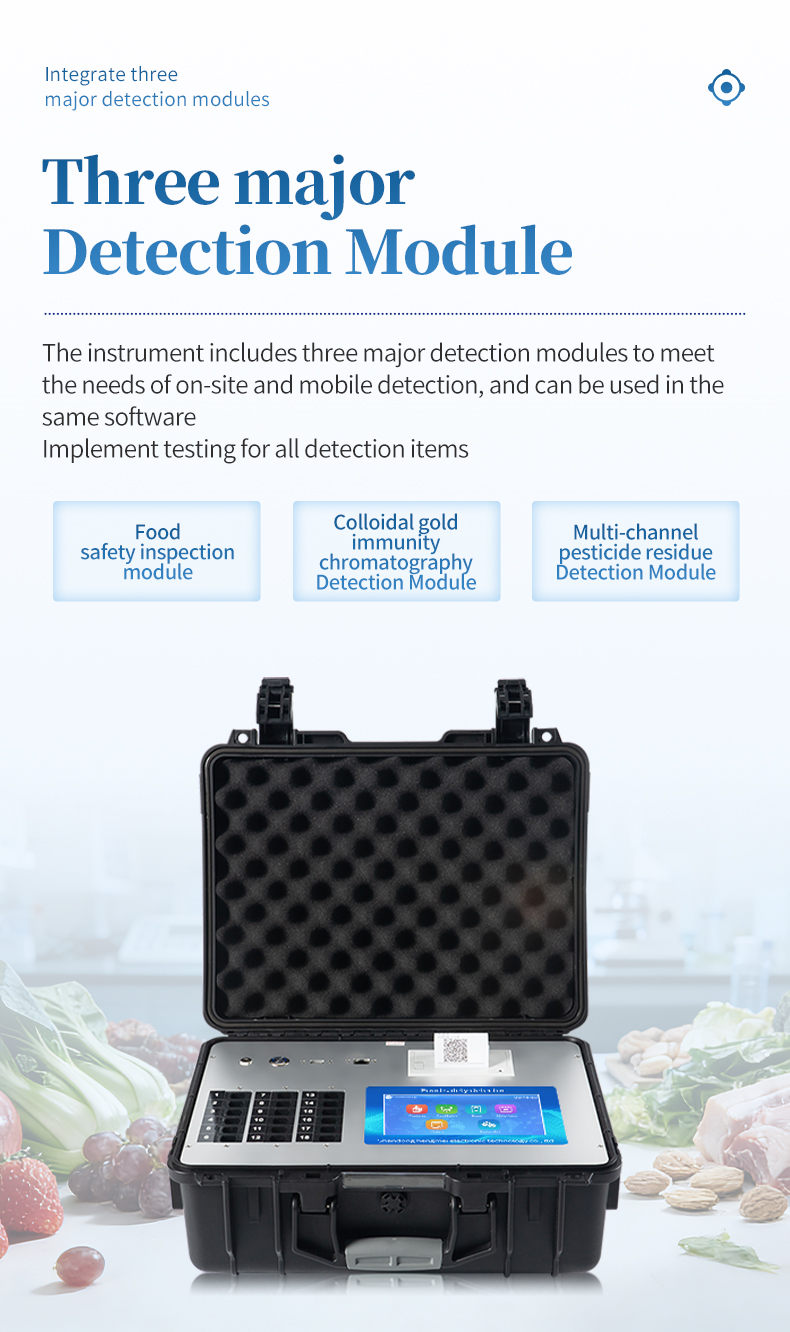

5. Integrated host, including food safety detection module, multi-channel pesticide residue detection module, and colloidal gold immunochromatographic detection module.

6. Integrated portable rapid testing equipment, meeting the needs of on-site and mobile testing, capable of detecting all testing items under the same software, and displaying testing results intuitively through the same window.

7. Colloidal gold module detection method: track type automatic transmission scanning, automatically exits the detection card after the detection is completed.

8. CT line automatic recognition, no manual adjustment required, automatic display of CT coordinate curve upon completion of detection.

9. Built in powerful database with multi category and multi type sample menu function, allowing flexible selection of testing samples. Different testing channels can simultaneously test different sample items. It is also possible to directly edit and input information such as sample name, detection indicators, and sending unit on the instrument, and save them into the sample database.

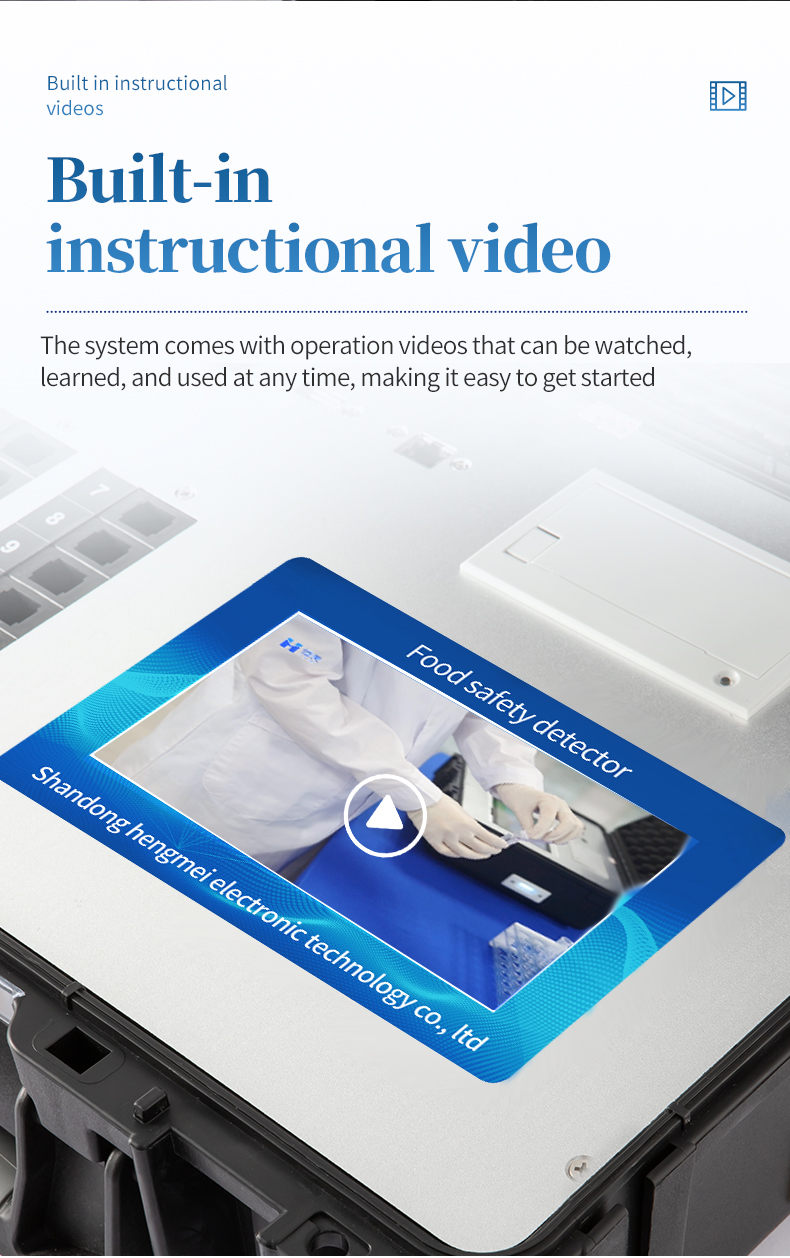

10. The built-in operation demonstration video of the product is your laboratory guidance expert by your side.

11. Sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

12. The instrument has its own protection function, which can set a username and password to prevent non staff operations.

13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

14. The result judgment line can be modified, the reference value calibration value can be saved, and data will not be lost when power is turned off.

15. Compatible with all colloidal gold cards on the market, with unrestricted use of consumables, greatly enhancing the user experience.

16. The instrument has the functions of recalibration, locking, and factory reset.

Main parameters:

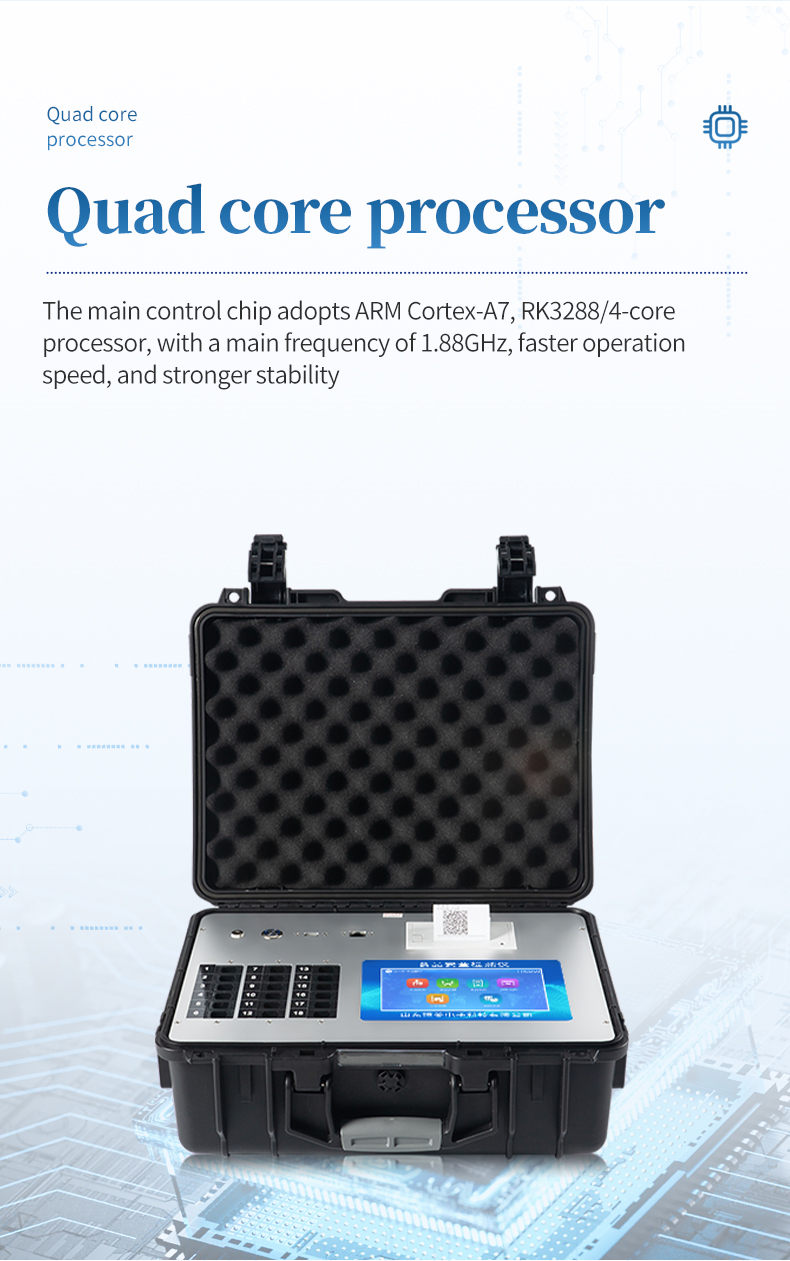

1. The main control chip adopts ARM Cortex-A7, RK3288/4-core processor, with a main frequency of 1.88GHz, faster operation speed and stronger stability.

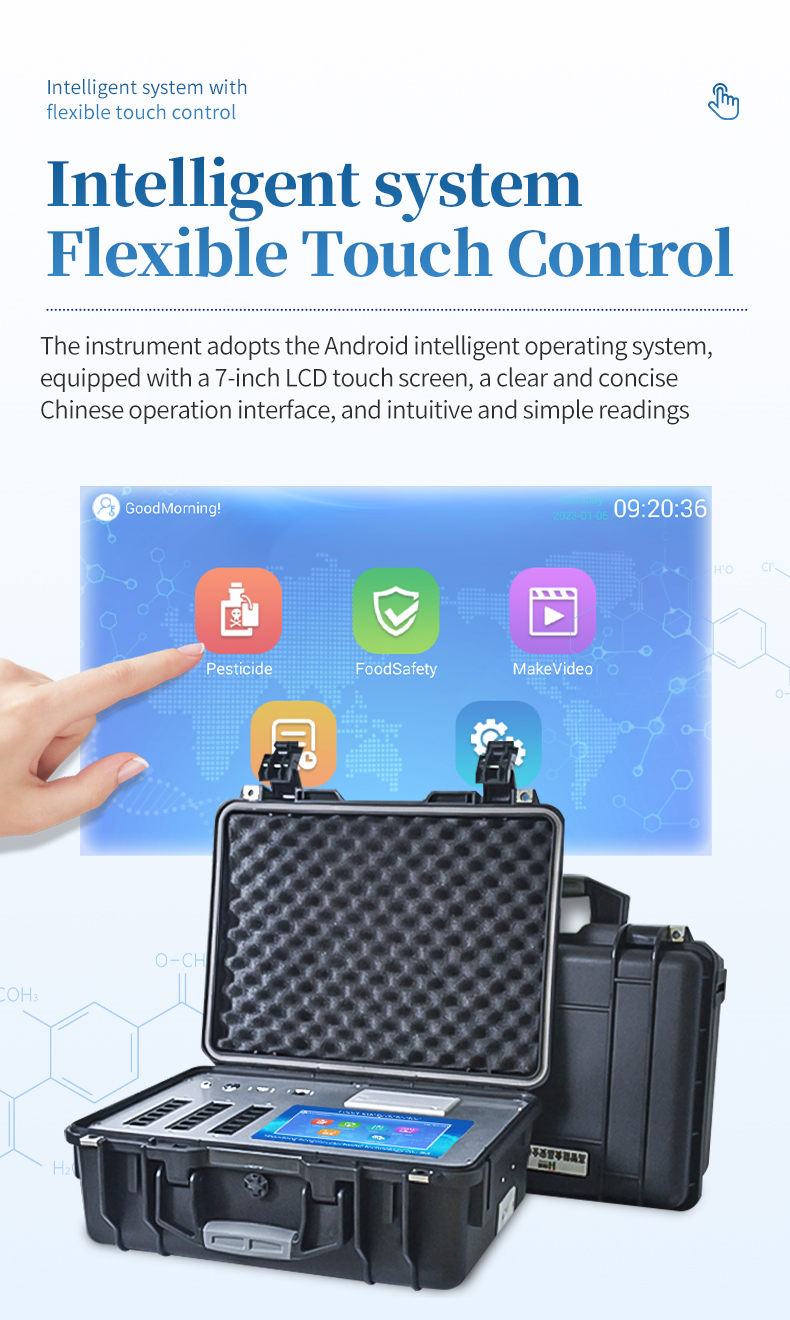

2. Display mode: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

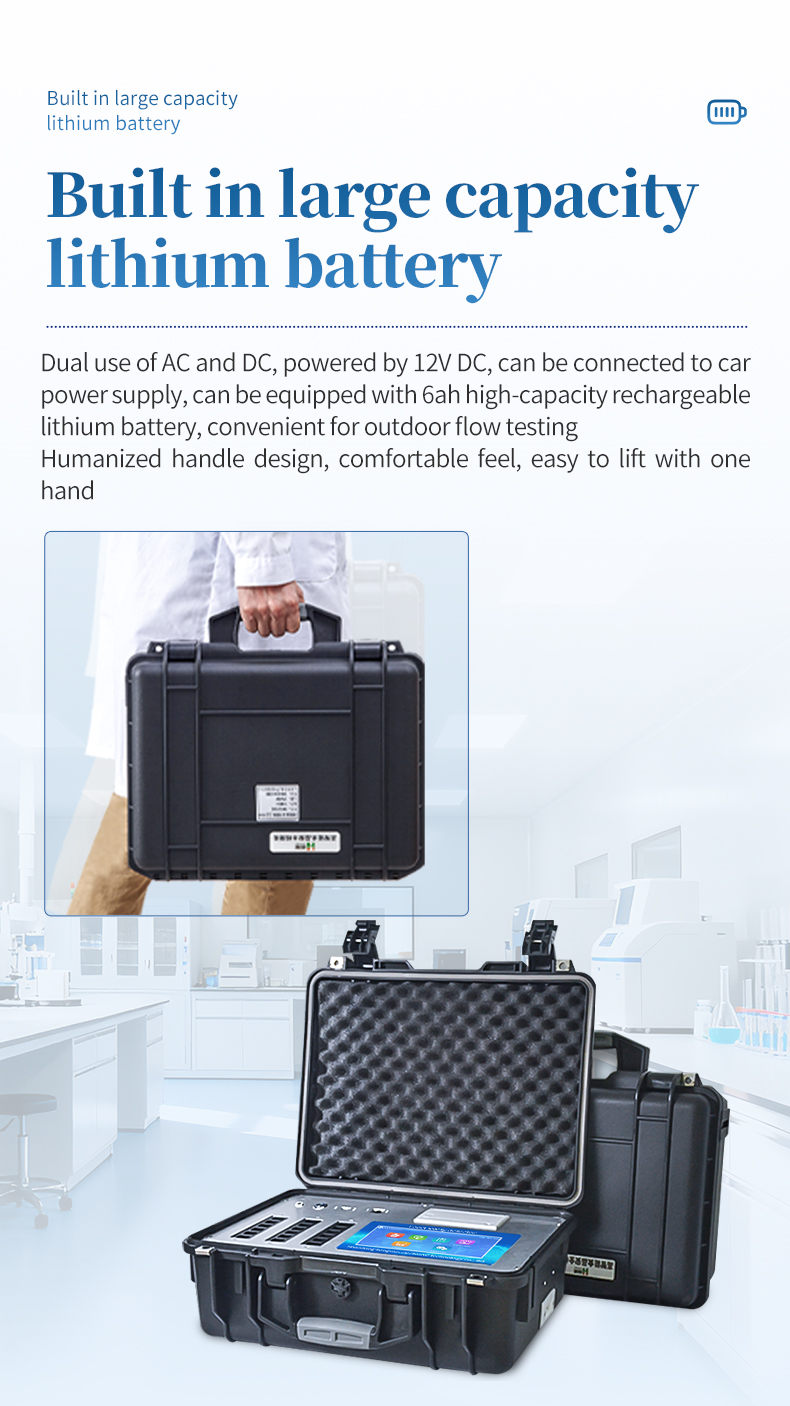

3. Dual use of AC and DC, powered by 12V DC, can be connected to a car power supply, and can be equipped with a 6-hour large capacity rechargeable lithium battery for convenient outdoor flow testing.

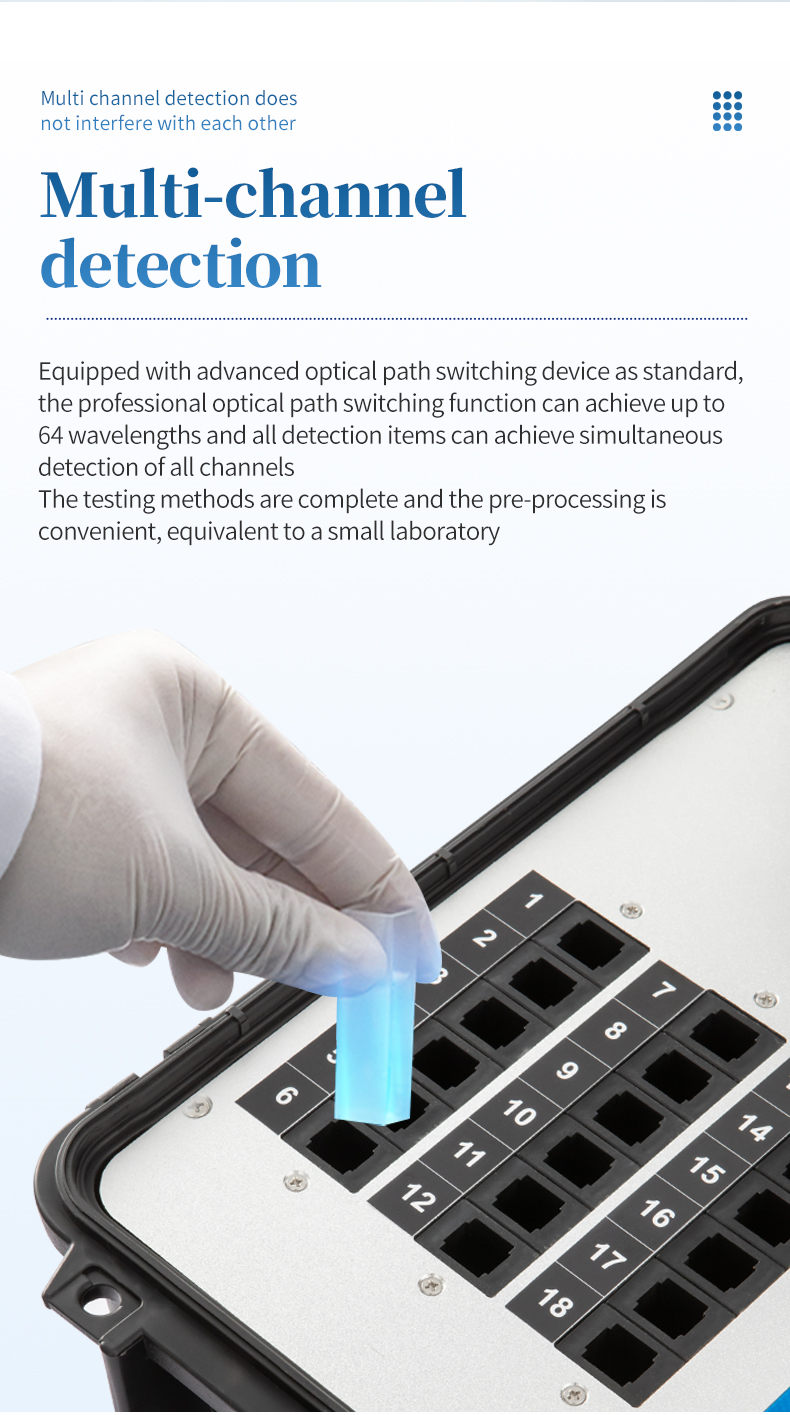

4. Four wavelength cold light source, 6 detection channels, each equipped with 410, 520, 590, 630nm wavelength light sources, standard with advanced optical path switching device, professional optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

5. Intelligent constant current and voltage stabilization, automatic adjustment and calibration of light intensity, and long-term continuous operation of the light source without temperature drift phenomenon.

6. Built in new national limited edition standards, on-site comparison with measured results, and continuous updating of standards.

7. Continuous injection and testing

8. Sample numbers are automatically accumulated.

9. The data can be uploaded wirelessly to the platform and exported as an Excel spreadsheet.

10. Storage capacity for 200000 test results

11. Simultaneously supports USB copying, standard USB interface, and driver free plugging and unplugging.

12. The detection items are expandable and the firmware can be upgraded

13. Instrument size: 43 × 35 × 19cm, net weight of host: 5.1kg

Technical parameters:

1. Pesticide residue: detection limit: inhibition rate of 5%, detection range: inhibition rate (0-100)%

2. Formaldehyde: detection limit: 1mg/kg, detection range: (0-100) mg/kg

3. Nitrite: detection limit: 1mg/kg, detection range: (0-100) mg/kg

4. Sulfur dioxide: detection limit: 1mg/kg; 5mg/kg ， Detection range: (0-100) mg/kg; (0～500) mg/kg

5. Hanging white block: detection limit: 5 mg/kg, detection range: (0-500) mg/kg

6. Protein: Detection limit: 0.5%, detection range: (0-50)%

7. Borax: detection limit: 5 mg/kg, detection range: (0-100) mg/kg

8. Hydrogen peroxide: detection limit: 5 mg/kg; 10 mg/kg; 100 mg/kg ， Detection range: (0-500) mg/kg; (0～1000) mg/kg; (0～10000) mg/kg

9. Nitrate: detection limit: 10 mg/kg; 40 mg/kg ， Detection range: (0-1000) mg/kg; (0～4000) mg/kg

10. Heavy metal lead: detection limit: 0.5 mg/kg; 0.2 mg/L ， Detection range: (0-50) mg/kg; (0～20) mg/L
