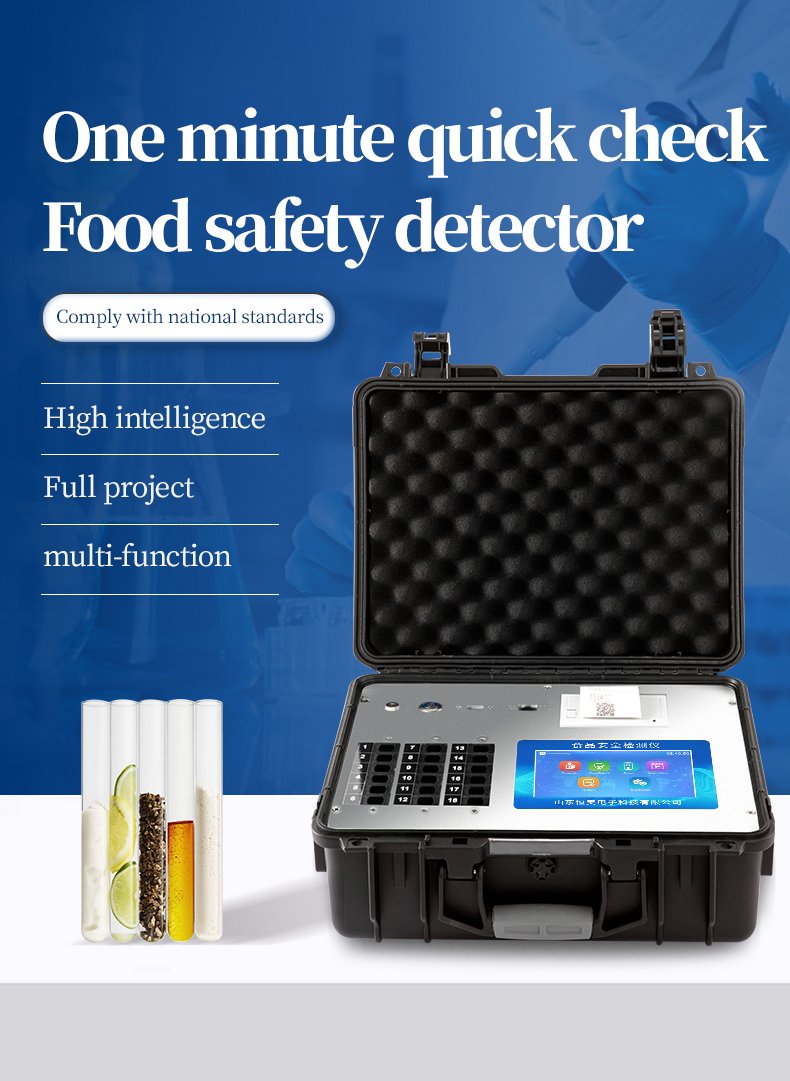

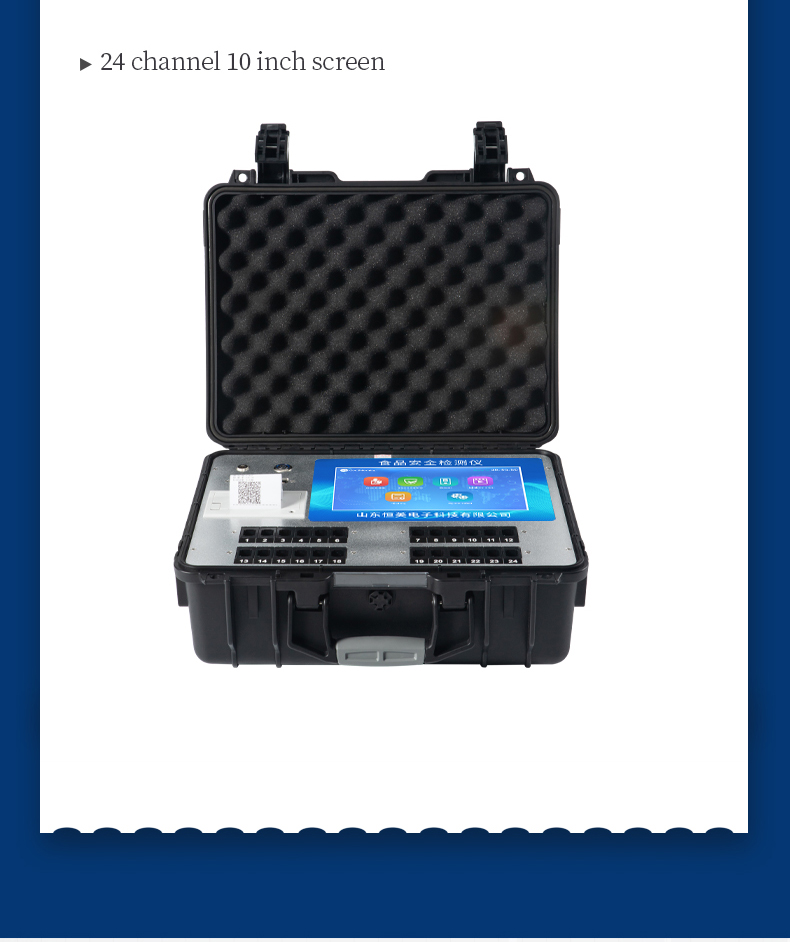

Multi-functional food safety detector

Product Introduction

The food safety rapid detection instrument can quickly test over 200 items, including non-edible chemical substances, abused food additives, pesticide residues, veterinary drug residues, heavy metals, diseased meat, nutrient fortifiers, antibiotic residues, hormone residues, mycotoxin residues, and chemical residues, etc. for on-site qualitative and quantitative detection.

The food safety rapid detection instrument is an integrated food safety rapid detection and analysis device, widely used by market supervision bureaus, testing centers, health supervision departments, agricultural departments, canteens of colleges and universities and various units, deep processing enterprises of food and meat products, supermarkets and markets, judicial departments, catering institutions, breeding farms, slaughterhouses, inspection and quarantine departments and other units.

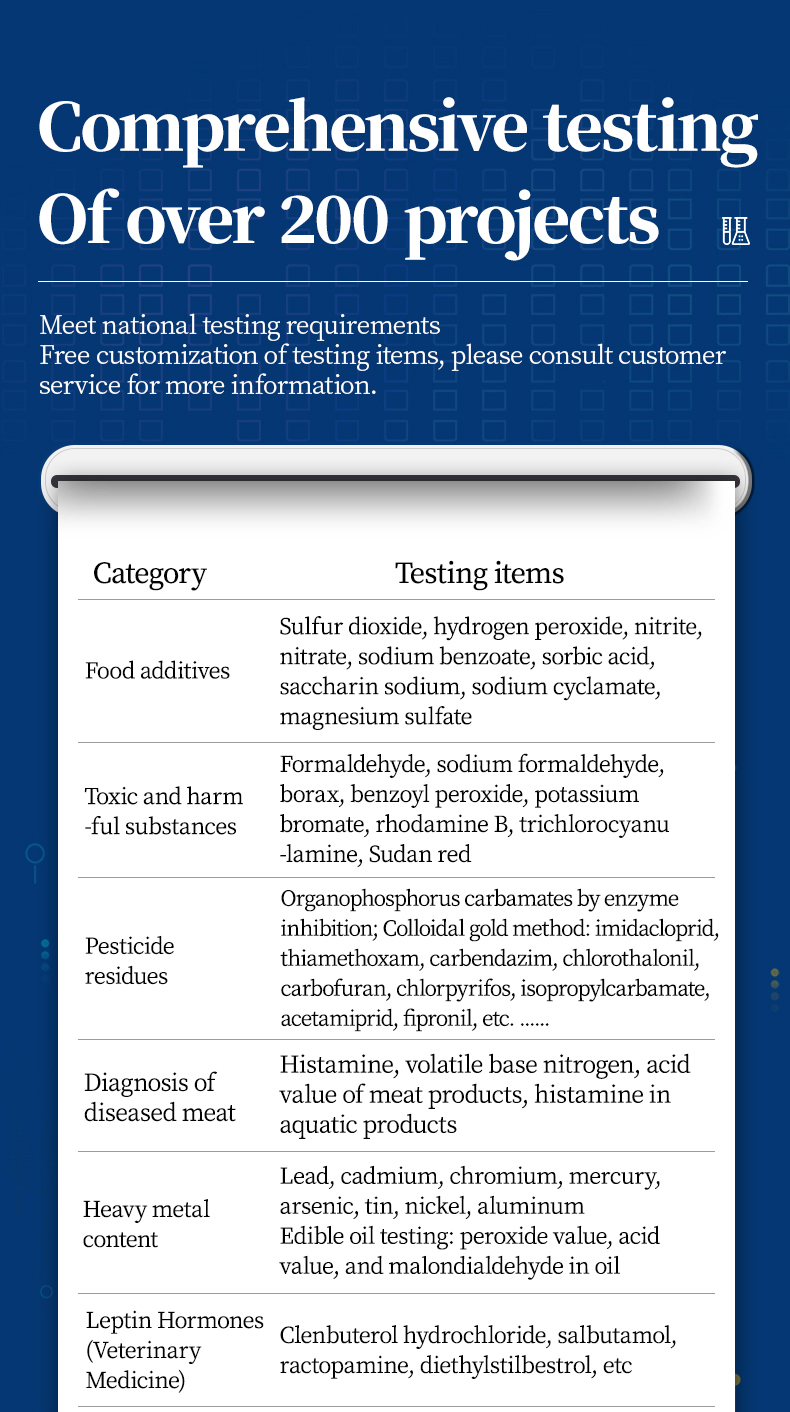

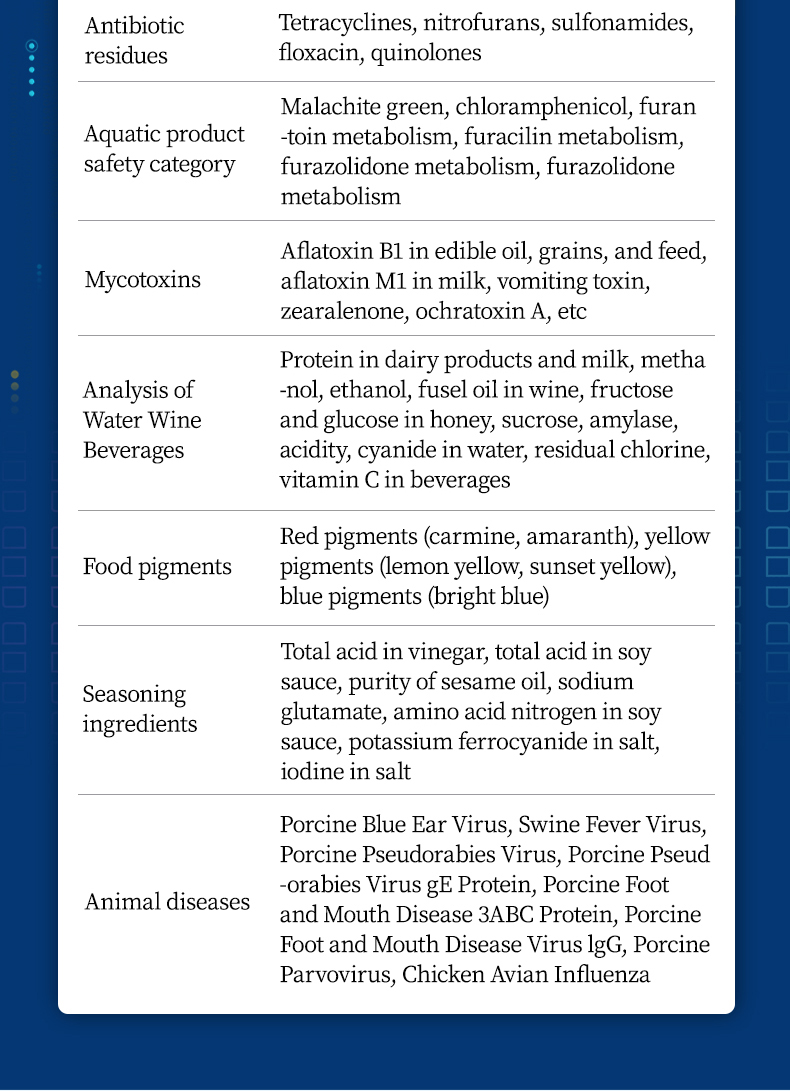

Testing items

Food additives: sulfur dioxide, hydrogen peroxide, nitrite, nitrate, sodium benzoate, sorbic acid, sodium saccharin, cyclamate, acesulfame potassium, magnesium sulfate, etc

Toxic and harmful substances: formaldehyde, sodium dithionite, borax, benzoyl peroxide, industrial alkali, potassium bromate, Rhodamine B, melamine, Sudan Red, etc

In fruits and vegetables: pesticide residues; in diseased meat diagnosis: histamine, volatile basic nitrogen, acid value of meat products, histamine in rehydrated products

Heavy metal content: lead, cadmium, chromium, mercury, arsenic, tin, nickel, aluminum, etc. Edible oil and fat testing: peroxide value, acid value, malondialdehyde in oil and fat, etc.

Clenbuterol hormones (veterinary drugs) : clenbuterol hydrochloride, salbutamol, ractopamine, diethylstilbestrol, quinocetone, etc

Antibiotic residues (veterinary drugs) : tetracyclines, nitrofurans, sulfonamides, floxacin, quinolones, gentamicin, streptomycin, amoxicillin, erythromycin, etc

Aquatic product safety category: Malachite green, chloramphenicol, nitrofurantoin metabolism, furacilin metabolism, furazolidone metabolism, furazolidone metabolism, etc

Mycotoxins: Aflatoxin B1 in edible oil, grains and feed, aflatoxin M1 in milk, vomitoxin, zearalenone, ochratoxin A, etc

Analysis of alcoholic beverages: Protein in dairy products and milk; Methanol, ethanol and fusel oil in alcohol; Fructose, glucose, sucrose, amylase and acidity in honey; Cyanide and residual chlorine in water, vitamin C in beverages, etc

Seasoning components: total acid of vinegar, total acid of soy sauce, purity of sesame oil, sodium glutamate, amino acid nitrogen of soy sauce, potassium ferrocyanide in table salt, iodine in table salt, etc

Food colorings: red colorings (carmine, amaranth, erythritum, allura red), yellow colorings (lemon yellow, sunset yellow), blue colorings (bright blue), etc

Animal diseases: Porcine reproductive and respiratory syndrome virus, swine fever virus, porcine pseudorabies virus, porcine pseudorabies virus gE protein, Porcine foot-and-mouth disease 3ABC protein, porcine foot-and-mouth disease virus IgG, porcine parvovirus, avian influenza in chickens, etc

Functional features

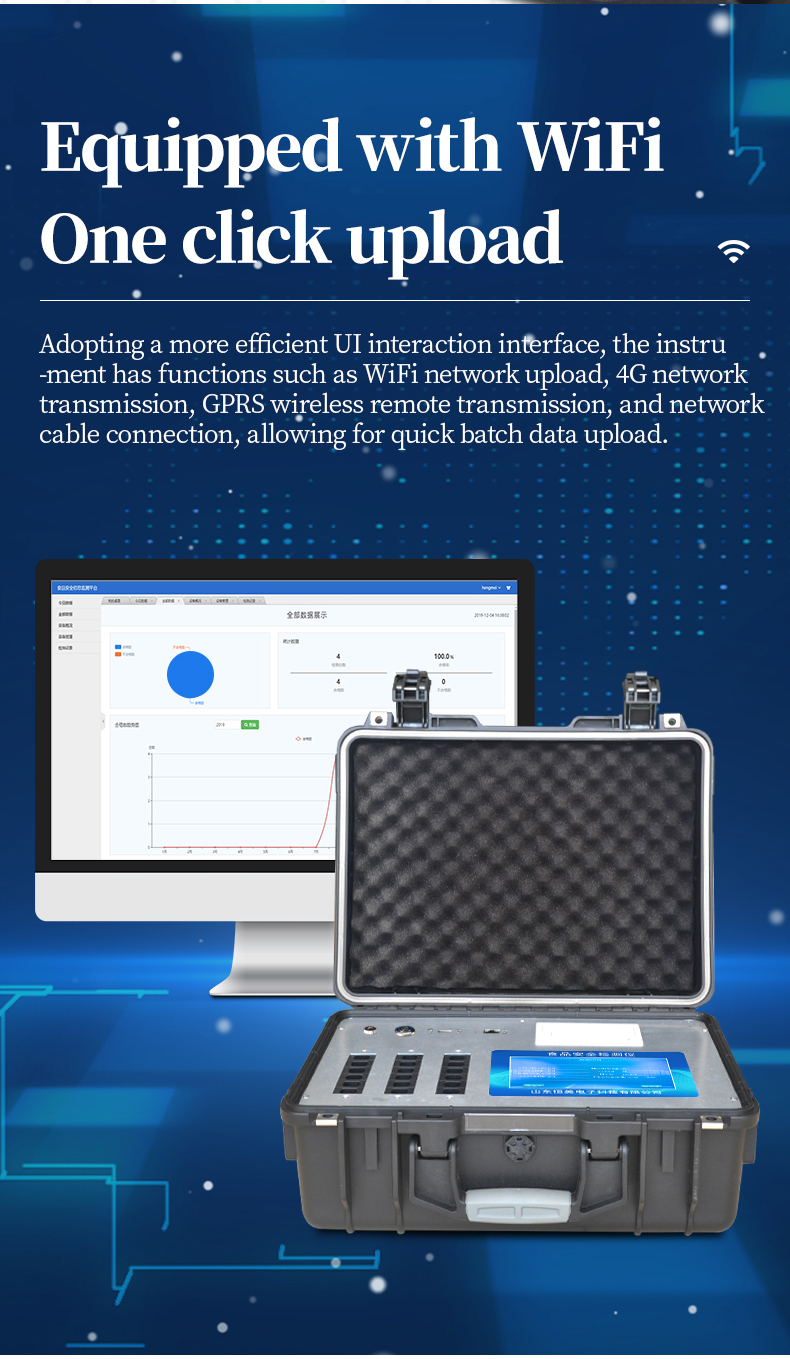

1.The Android intelligent operating system adopts a more efficient UI interaction interface. The instrument is equipped with functions such as wifi network upload, 4G network transmission, GPRS wireless remote transmission, and network cable connection, enabling rapid and batch data upload.

2. High degree of intelligence, the instrument is equipped with self-checking functions: it has the functions of self-checking upon startup and zero adjustment, as well as automatic detection of repeatability.

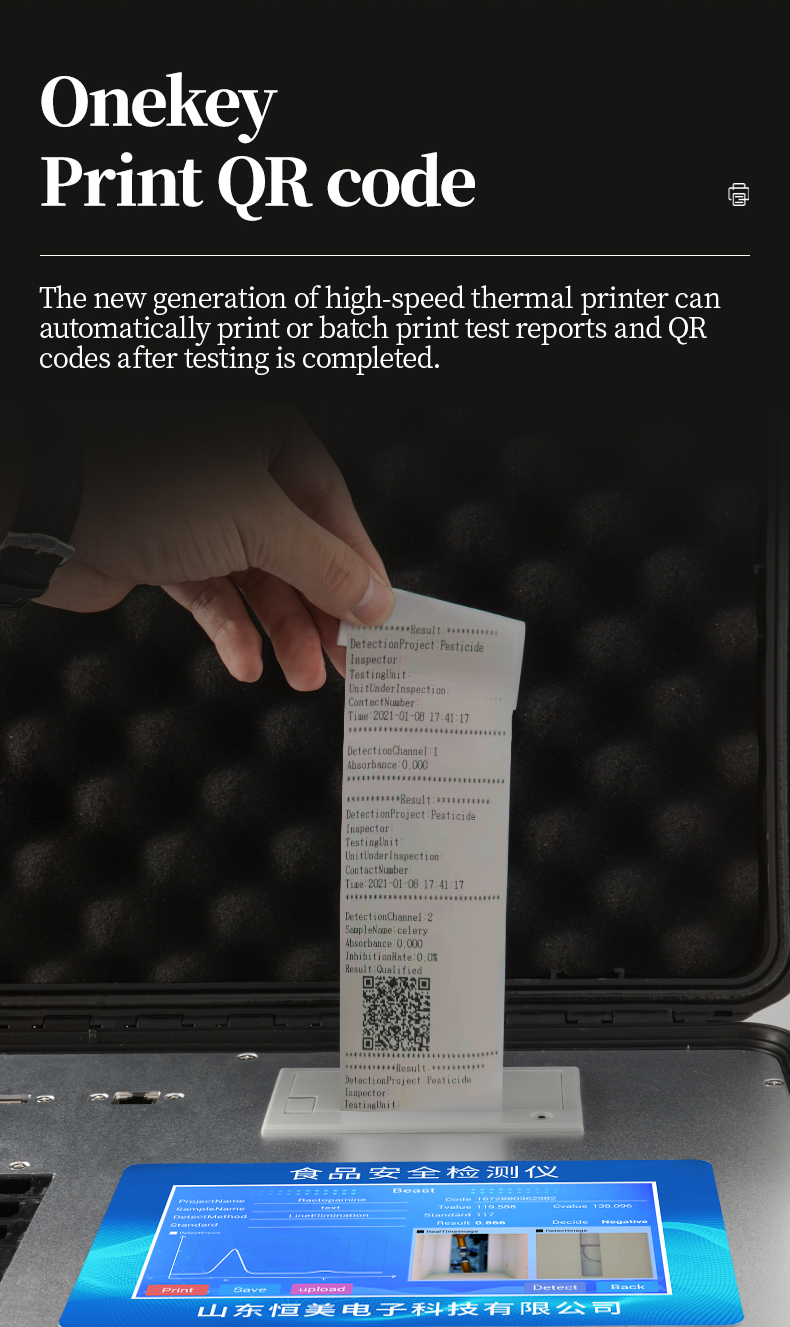

3. The new generation of high-speed thermal printers can automatically print or batch print the test report and QR code after the test is completed.

4. The instrument is equipped with a supervision platform. Data can be uploaded via local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis and processing, as well as data statistics, monitor the long-term and short-term dynamics of regional food safety, and achieve the prediction and early warning of food safety issues

5. Integrated host, including food safety detection module, multi-channel pesticide residue detection module, and colloidal gold immunochromatography detection module.

6. The integrated portable rapid testing device meets the on-site and mobile testing requirements. It can perform all testing items under the same software and display the testing results intuitively through the same window.

7. Colloidal gold module detection method: Track-based automatic transmission and scanning. The detection card will automatically exit after the detection is completed.

8. The instrument is equipped with an internal camera for taking photos, which can display the real-time image of the gold standard card. The system automatically analyzes and presents the CT coordinate curve graph. The CT line is automatically recognized without the need for manual adjustment.

9. It is equipped with a powerful built-in database and features a multi-category and multi-type sample menu function, allowing for flexible selection of test samples. Different test channels can simultaneously test different sample items. The sample name, detection indicators, submitting unit and other information can also be directly edited and entered on the instrument and saved into the sample database.

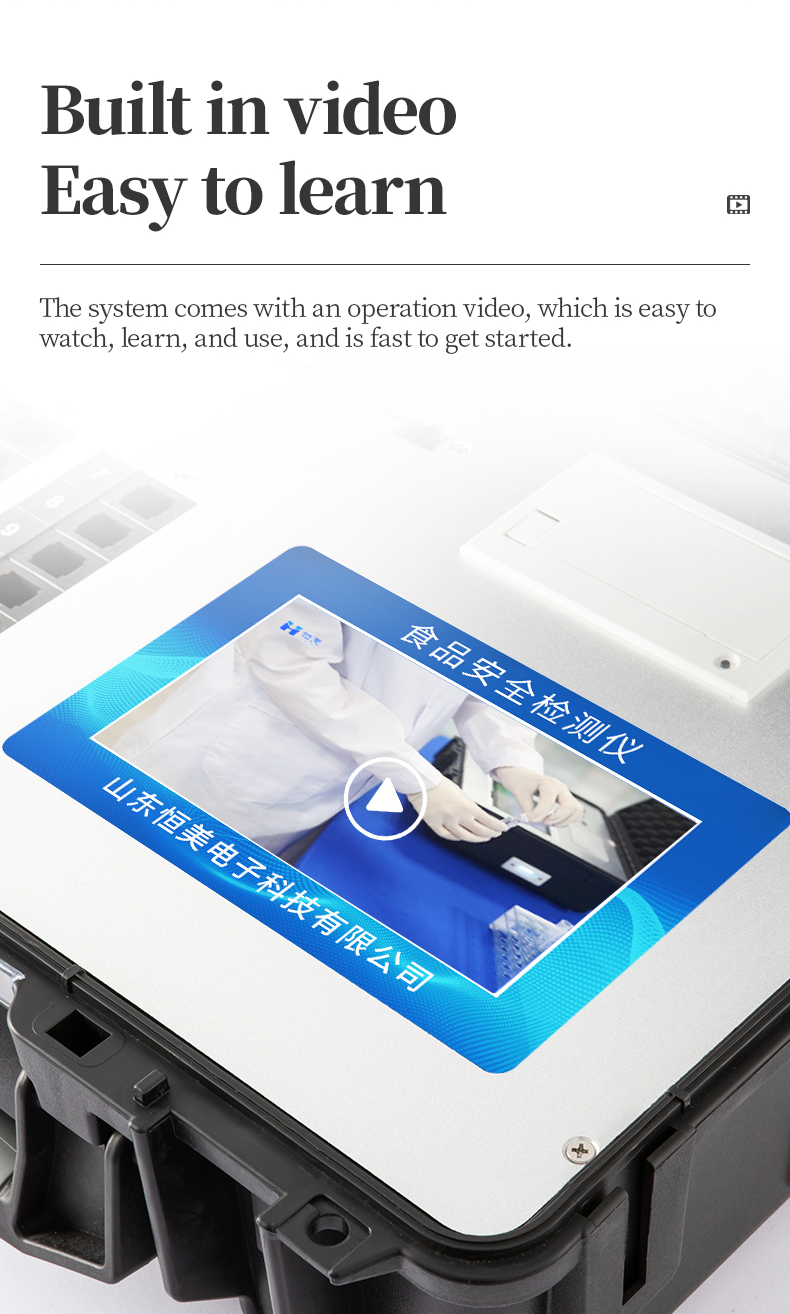

10. The instrument is equipped with built-in operation videos. By clicking on the video module, you can quickly learn. It is your trusted laboratory guidance expert.

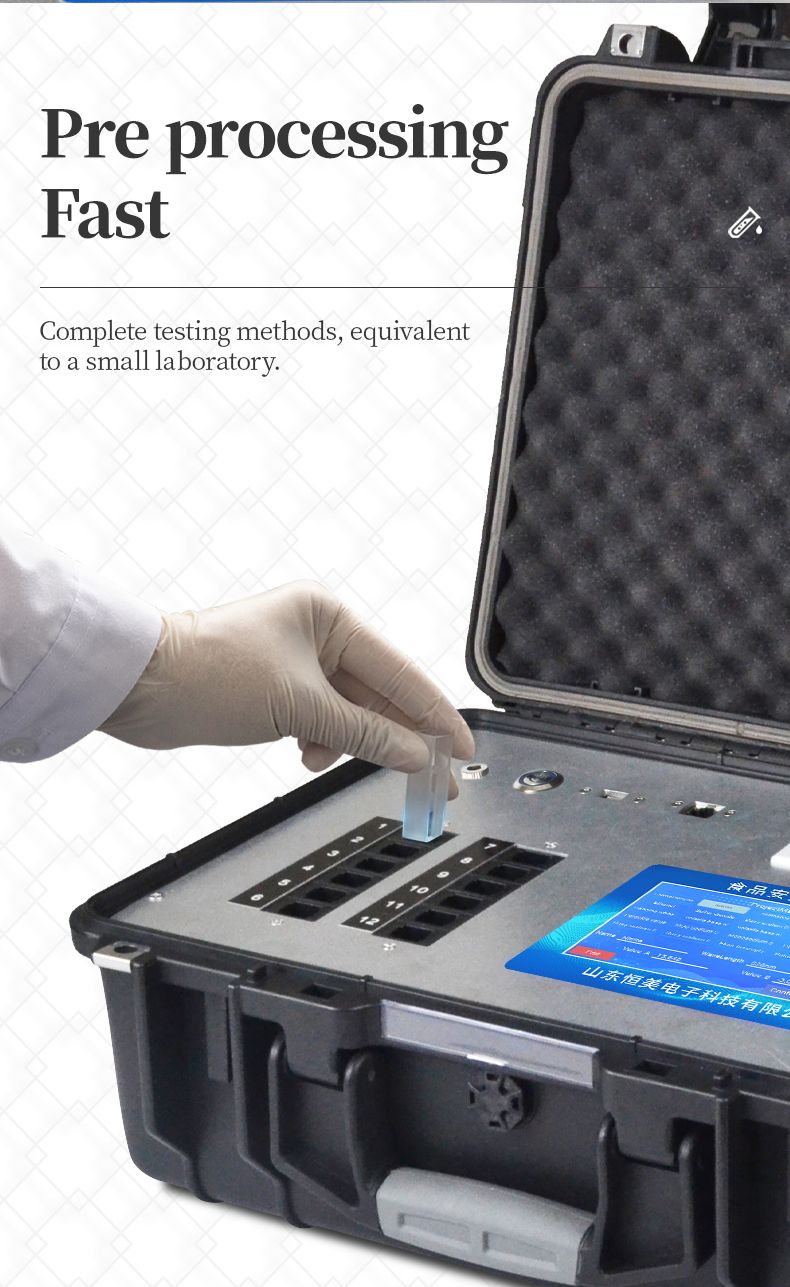

11. Sample processing is simple and effortless, and the overall operation is fast, safe and convenient.

12. The instrument can be equipped with an identity recognition function. It can be turned on by password or ID card swiping to prevent non-staff from operating it, etc.

13. High sensitivity, high detection accuracy, high repeatability accuracy, and scanning high-precision optical sensor.

14. The instrument is equipped with the functions of re-calibration, locking and restoring factory Settings.

15. The result determination line can be modified, the calibration values of the reference values can be saved, and the data will not be lost in case of power failure.

16. Compatible with all colloidal gold cards on the market, the use of consumables is not restricted, greatly enhancing the user experience.

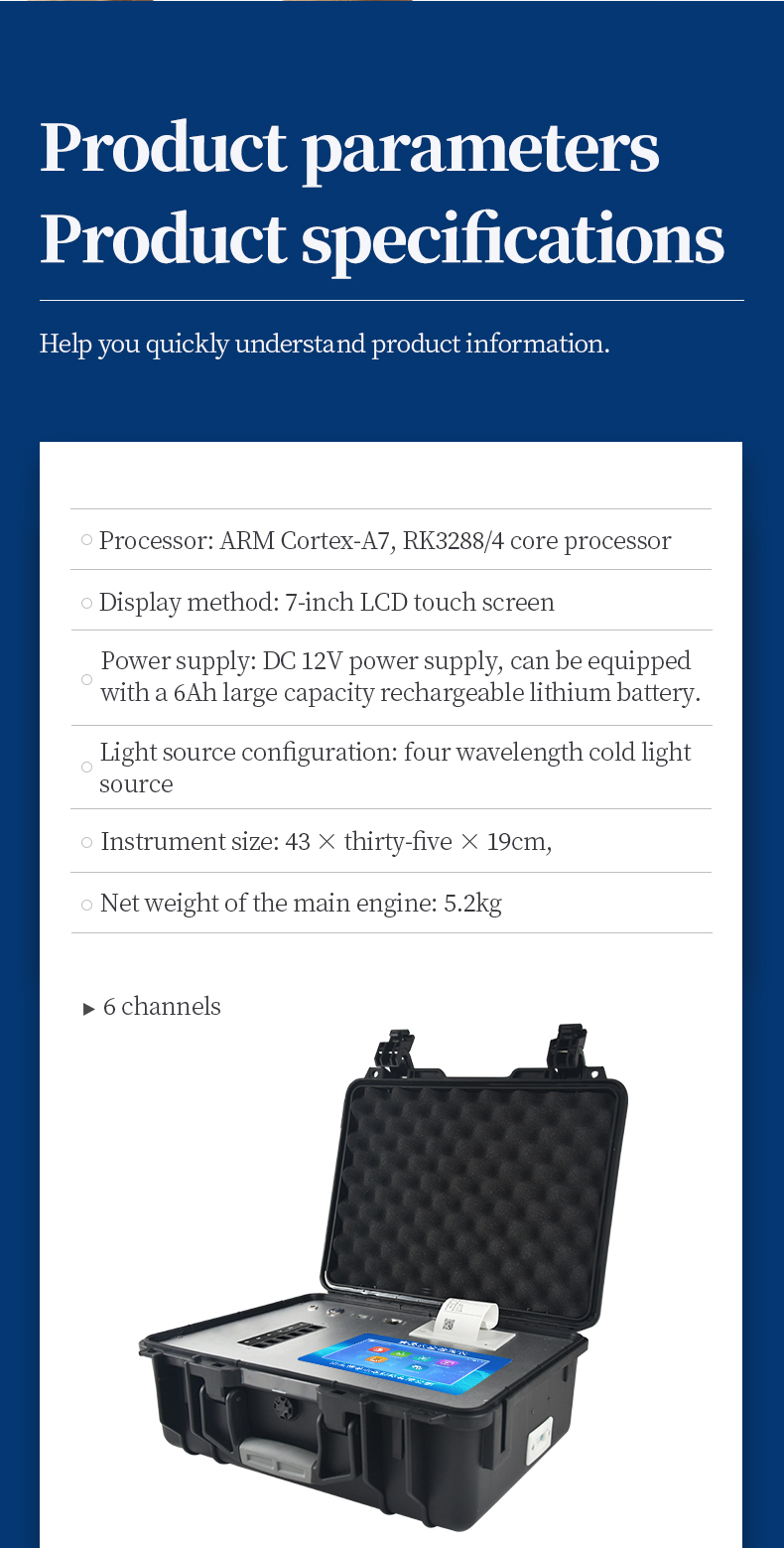

Main parameters

1. The main control chip adopts ARM Cortex-A7, RK3288/4-core processor, with a main frequency of 1.88Ghz, providing faster operation speed and stronger stability.

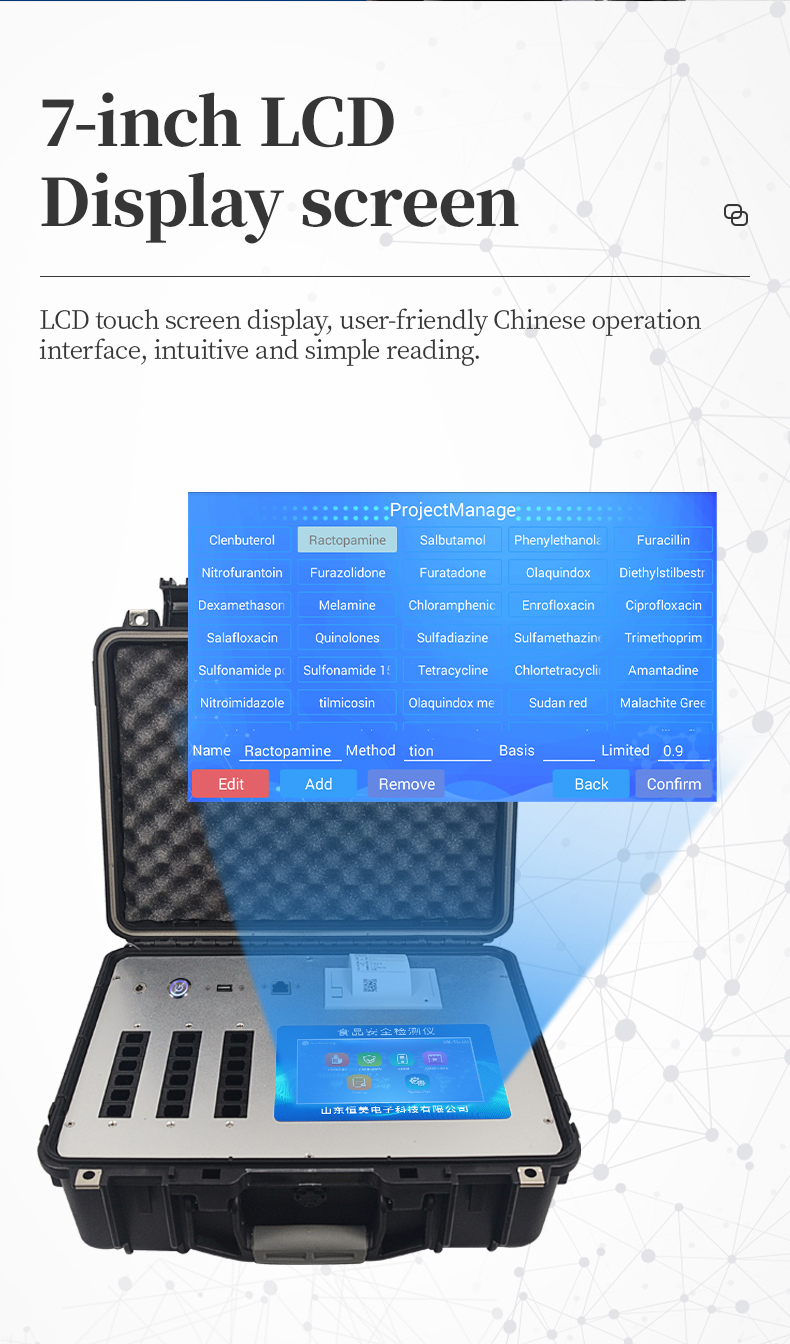

2. Display mode: 7-inch LCD touch screen display, with a user-friendly Chinese operation interface, making readings intuitive and simple.

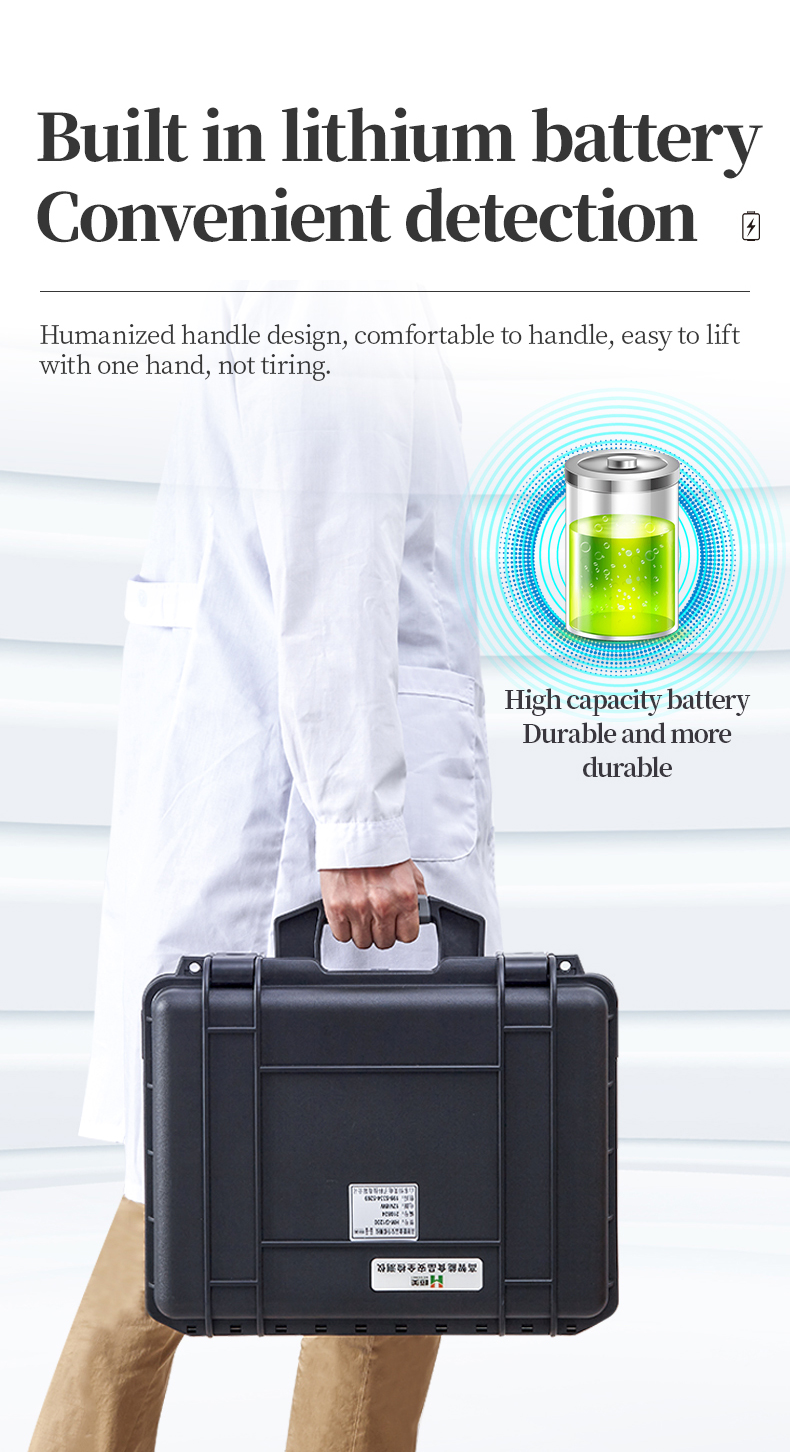

3. Dual-purpose AC/DC, powered by 12V DC, can be connected to a vehicle power supply, and can be equipped with a 6ah large-capacity rechargeable lithium battery for convenient outdoor mobile testing.

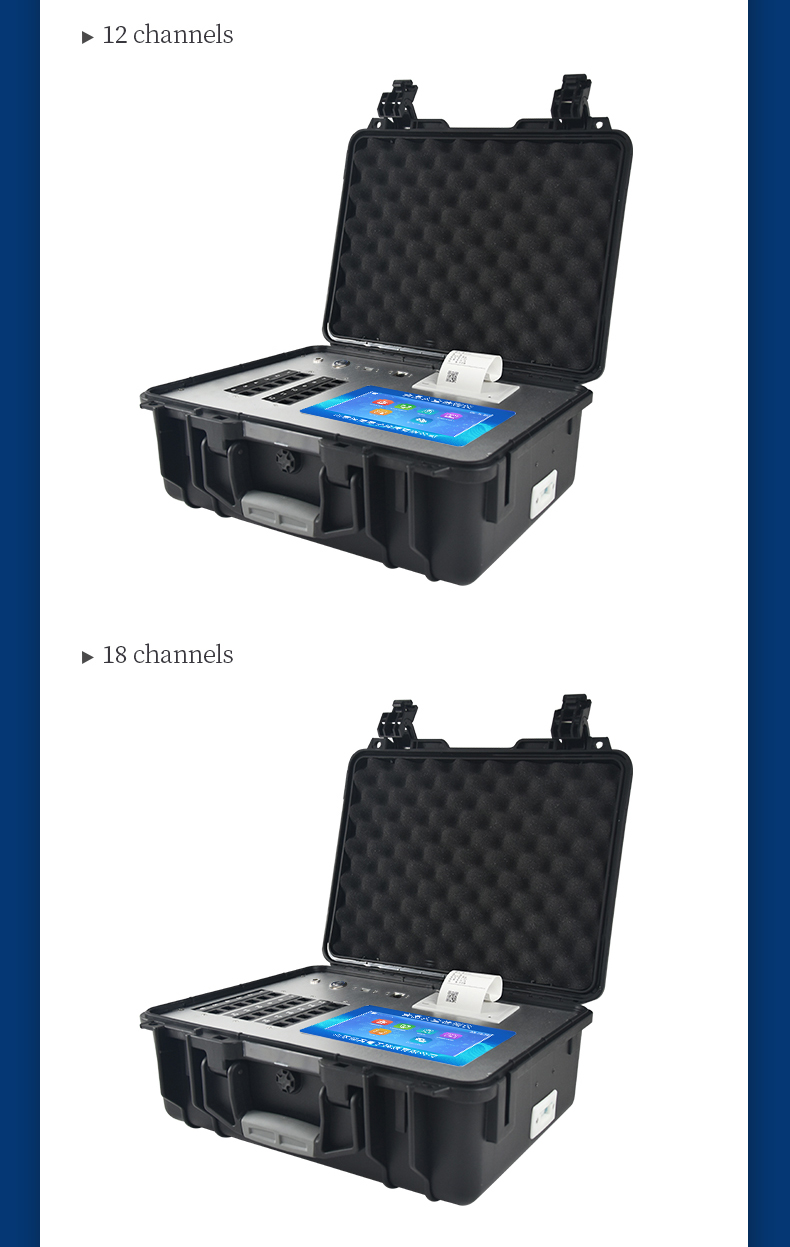

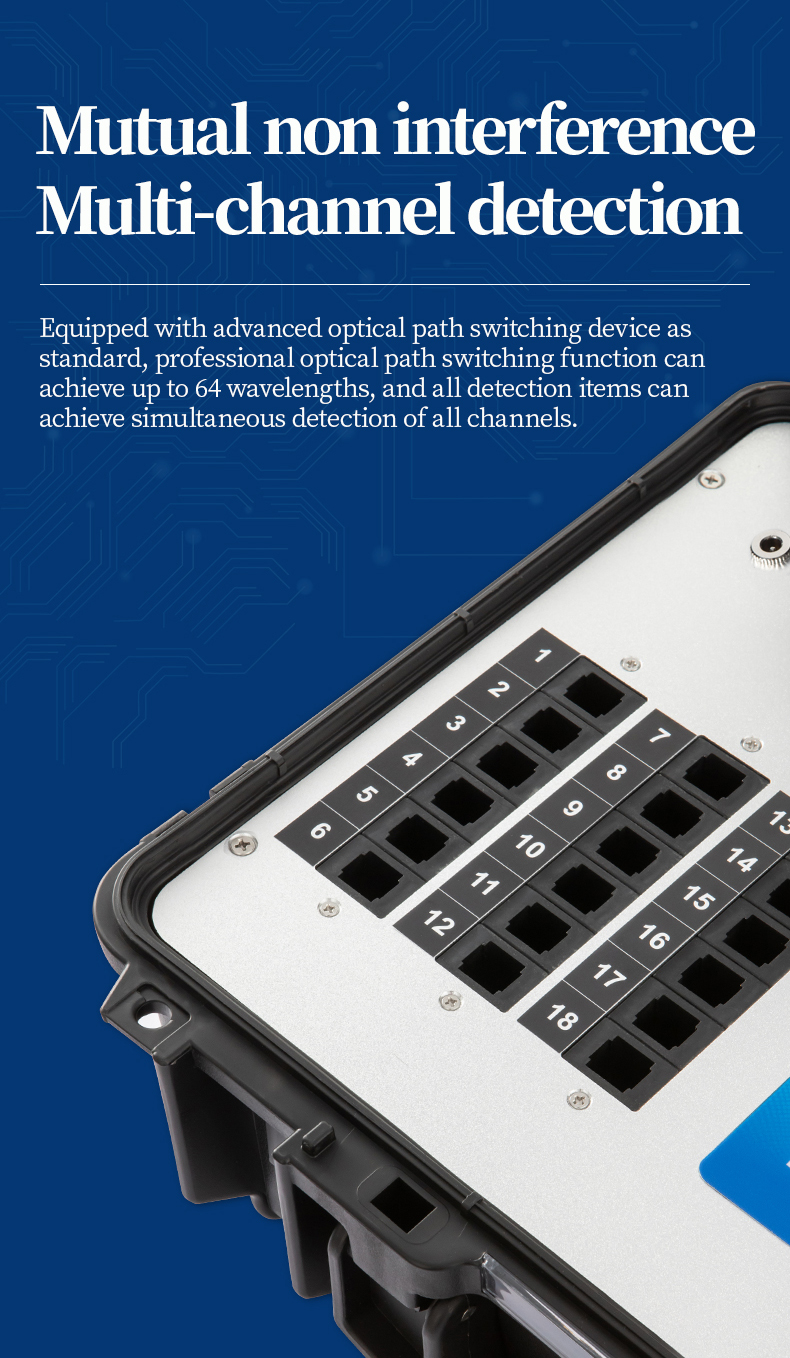

4. Four-wavelength cold light source, 18 detection channels, each channel is equipped with 410, 520, 590, and 630nm wavelength light sources. It is standard with an advanced optical path switching device. The professional optical path switching function can achieve up to 64 wavelengths, and all detection items can be simultaneously detected on all channels.

5. Intelligent constant current and voltage stabilization, automatic light intensity adjustment and calibration, and no temperature drift of the light source during long-term continuous operation.

6. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of the standards.

7. Uninterrupted sample injection and continuous detection

8. Sample numbers are automatically accumulated.

9. Data can be wirelessly uploaded to the platform and exported as an Excel table from the platform.

10. The storage capacity for test results is 200,000 entries.

11. It also supports USB flash drive copying, with a standard USB interface and no driver required for plugging and unplugging.

12. The detection items can be expanded and the firmware can be upgraded

13. Instrument dimensions: 43×35×19cm, net weight of the main unit: 5.2kg

Technical parameters

1. Pesticide residues: Detection limit: Inhibition rate 5%, detection range: Inhibition rate (0-100)%

2. Methylaldehyde: Detection limit: 1mg/kg, detection range: (0-100) mg/kg

3. Nitrite: Detection limit: 1mg/kg, detection range: (0-100) mg/kg

4. Sulfur dioxide: Detection limit: 1mg/kg; 5mg/kg, detection range: (0-100) mg/kg; (0-500) mg/kg

5. White block suspension: Detection limit: 5 mg/kg, detection range: (0-500) mg/kg

6. Protein: Detection limit: 0.5%, detection range: (0-50)%

7. Borosilicate sand: Detection limit: 5 mg/kg, detection range: (0-100) mg/kg

8. Hydrogen peroxide water: Detection limit: 5 mg/kg; 10 mg/kg 100 mg/kg, detection range: (0-500) mg/kg; (0-1000) mg/kg; (0-10,000) mg/kg

9. Nitrate: Detection limit: 10 mg/kg; 40 mg/kg, detection range: (0-1000) mg/kg; (0-4000) mg/kg

10. Heavy metal lead: Detection limit: 0.5 mg/kg; 0.2 mg/L, detection range: (0-50) mg/kg; (0-20) mg/L
