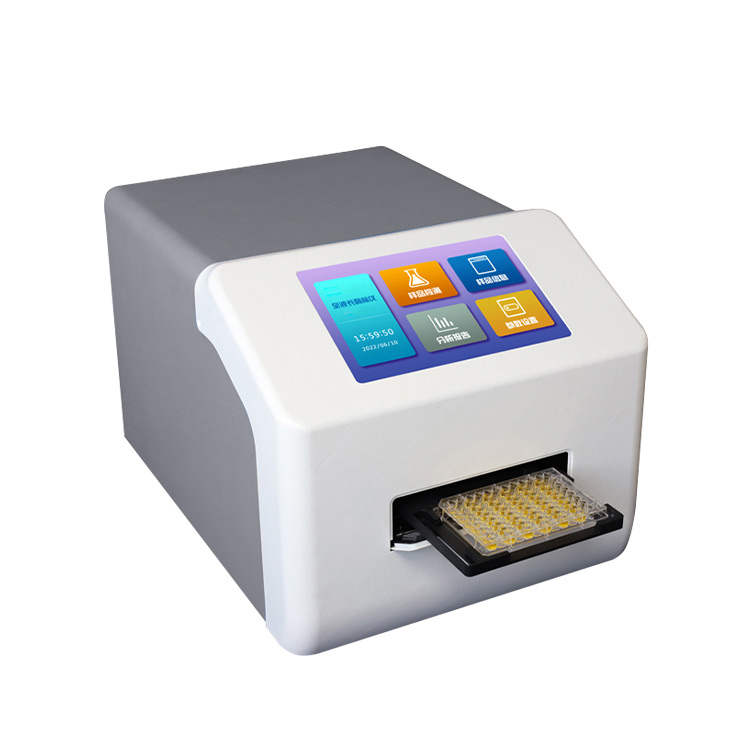

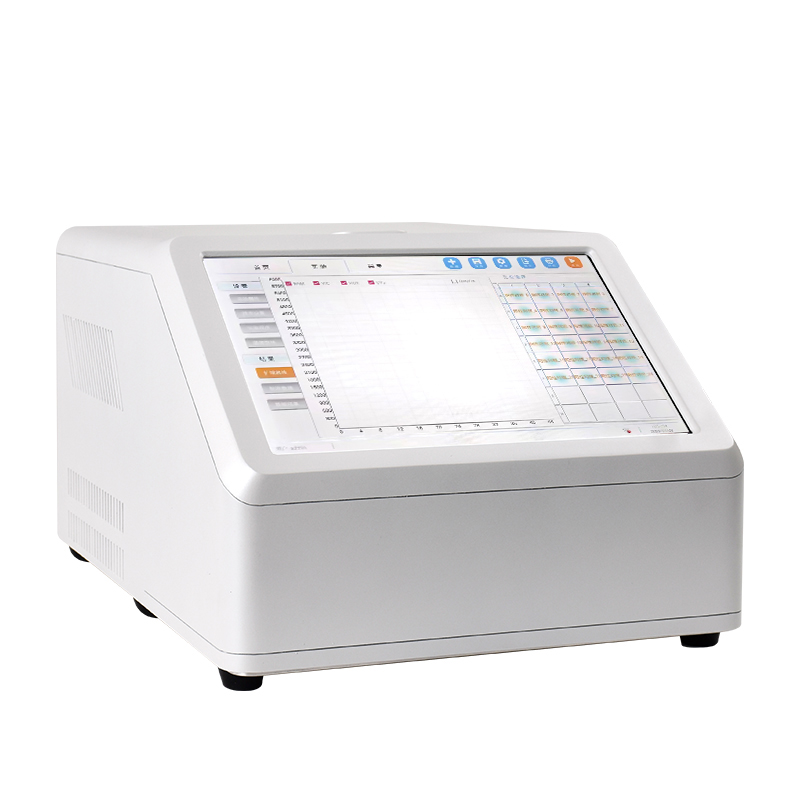

Microplate Spectrophotometer

Product Features

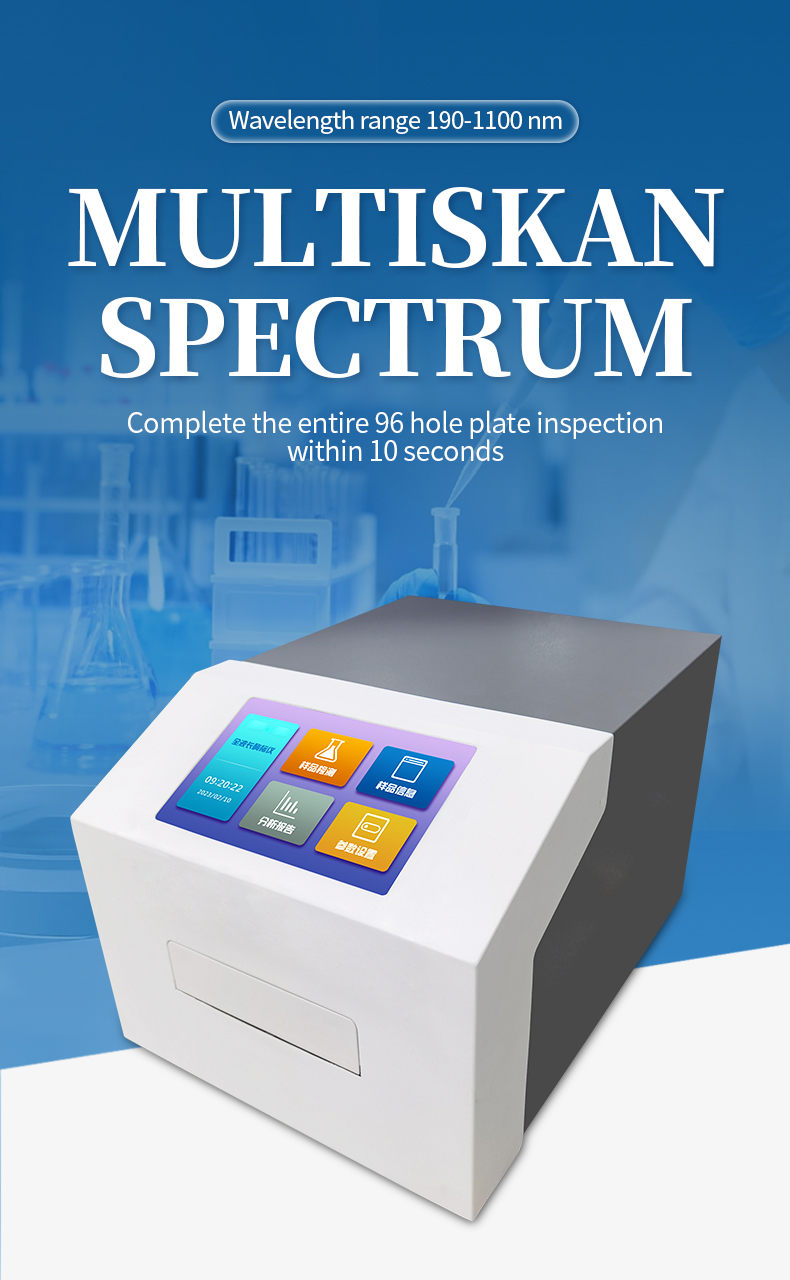

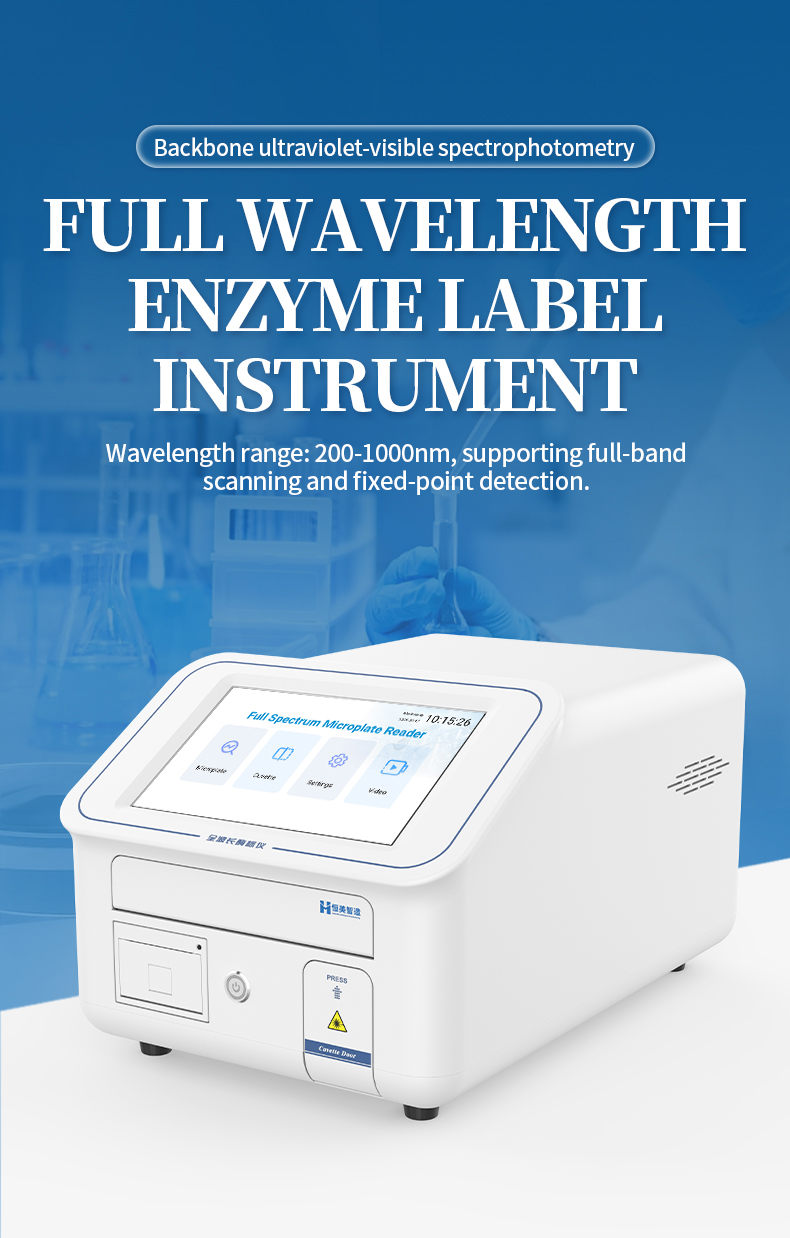

1. High quality grating monochromator, wavelength range 190-1100 nm, 0.1nm step, no need for filter.

2.2 silicon photoelectric detection tubes with measurement and reference functions

3. Suitable for all light absorption and turbidity research applications, supporting spectral scanning, endpoint method, and kinetic method.

4. Optional calculation methods include absorbance mode/Cut Off qualitative calculation/single point calibration/line regression/linear regression/exponential regression/logarithmic regression/double logarithmic regression/log logit/power regression, four parameter regression, and custom equations

5. Suitable for UV absorption detection, protein quantitative analysis, cell viability and cytotoxicity testing, microbial identification, bacterial concentration detection, etc

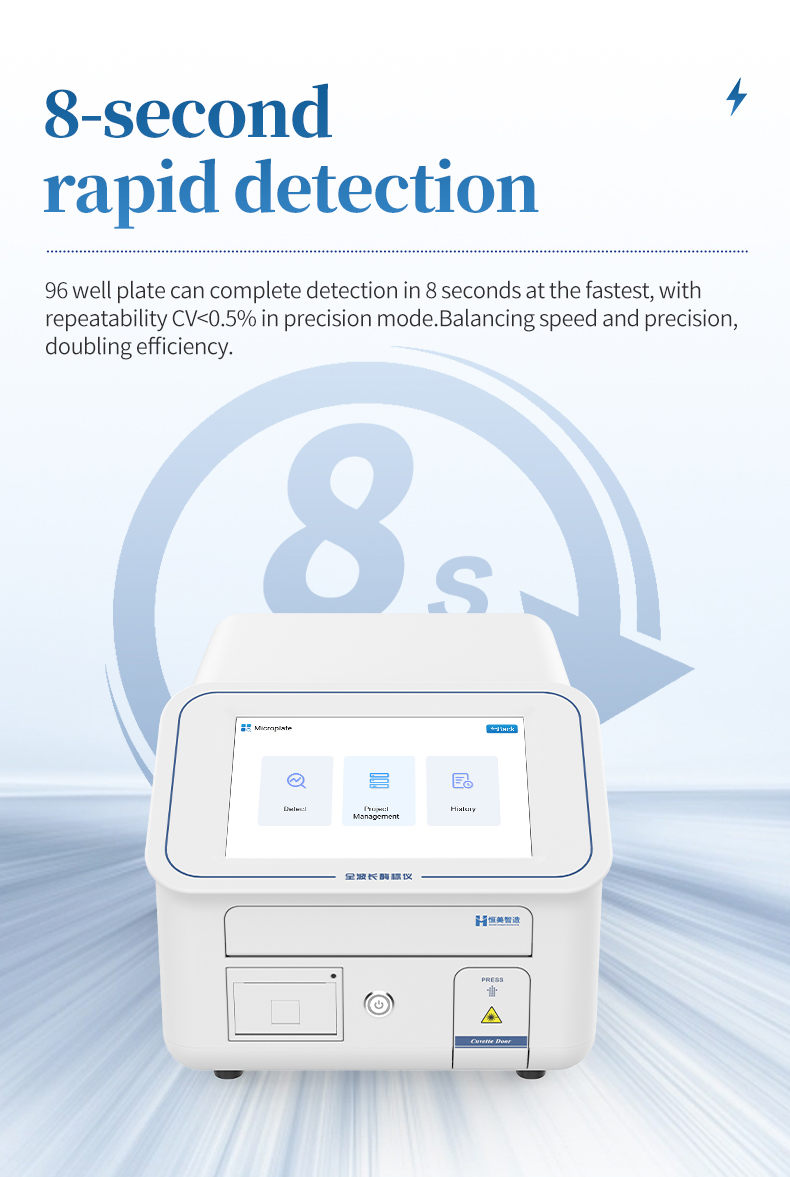

6. The detection speed is fast, and the entire 96 well plate can be inspected within 10 seconds.

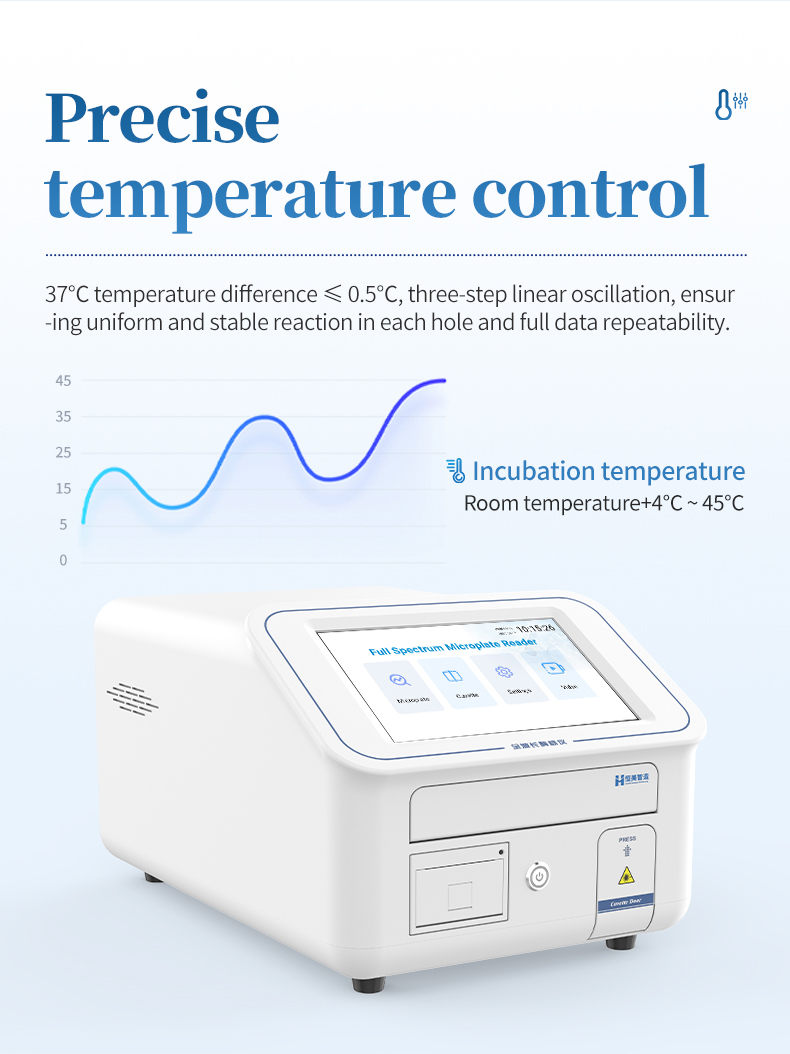

7. Microplate incubation can be performed at temperatures up to 45 ℃.

8. Equipped with microporous plate linear oscillation function

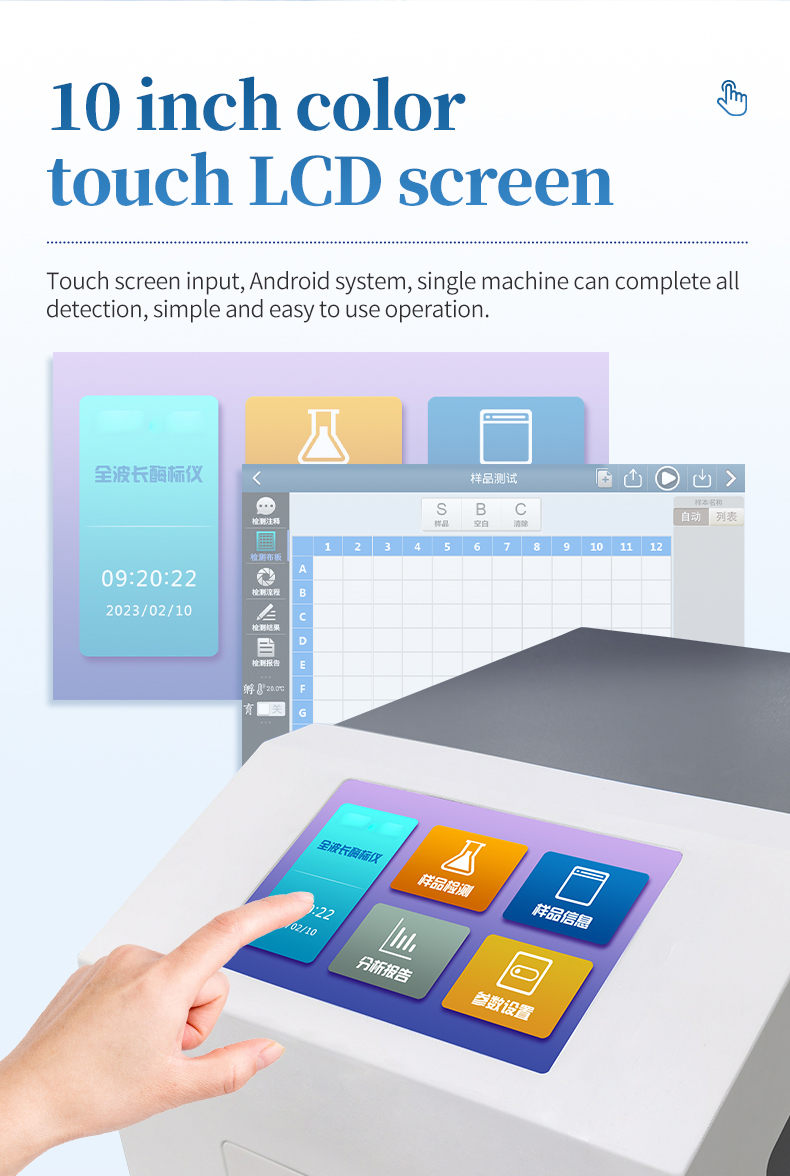

9.10-inch color touch LCD screen, can complete all inspections with a single machine, easy to operate and use.

10. A fully functional microplate analysis software that can meet the majority of data processing requirements.

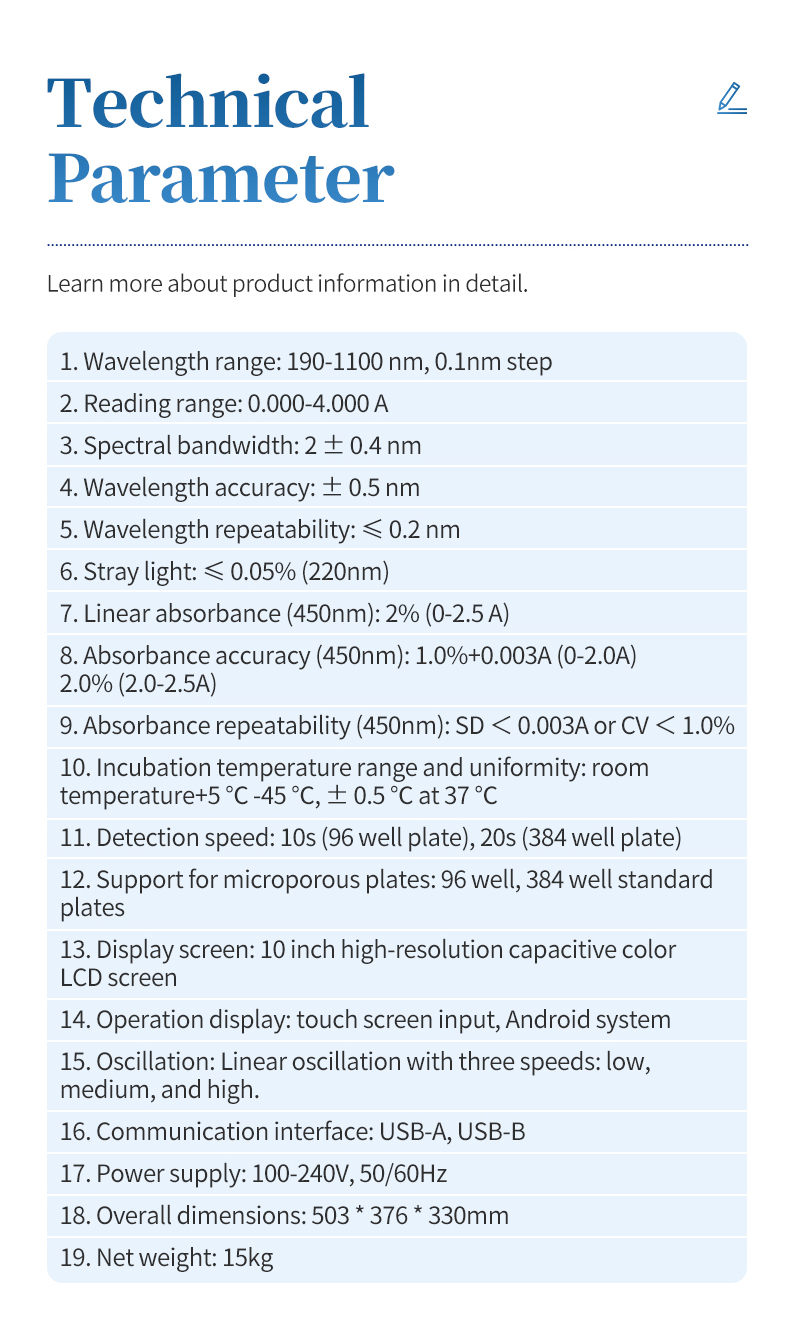

Main Technical Parameters

1. Wavelength range: 190-1100 nm, 0.1nm step

2. Reading range: 0.000-4.000 A

3. Spectral bandwidth: 2 ± 0.4 nm

4. Wavelength accuracy: ± 0.5 nm

5. Wavelength repeatability: ≤ 0.2 nm

6. Stray light: ≤ 0.05% (220nm)

7. Linear absorbance (450nm): 2% (0-2.5 A)

8. Accuracy of absorbance (450nm): 1.0%+0.003A (0-2.0A) 2.0% (2.0-2.5A)

9. Repeatability of absorbance (450nm): SD<0.003A or CV<1.0%

10. Incubation temperature range and uniformity: room temperature+5 ℃ -45 ℃, ± 0.5 ℃ at 37 ℃

11. Detection speed: 10s (96 well plate)

12. Support microplate: 96 well standard plate

13. Display screen: 10 inch high-resolution capacitive color LCD screen

14. Operation display: Touch screen input, Android system

15. Oscillation: Linear oscillation with three different speeds: low, medium, and high.

16. Communication interface: USB-A, USB-B

17. Power supply: 100-240V, 50/60Hz

18. Dimensions: 503 * 376 * 330mm

19. Net weight: 15kg
