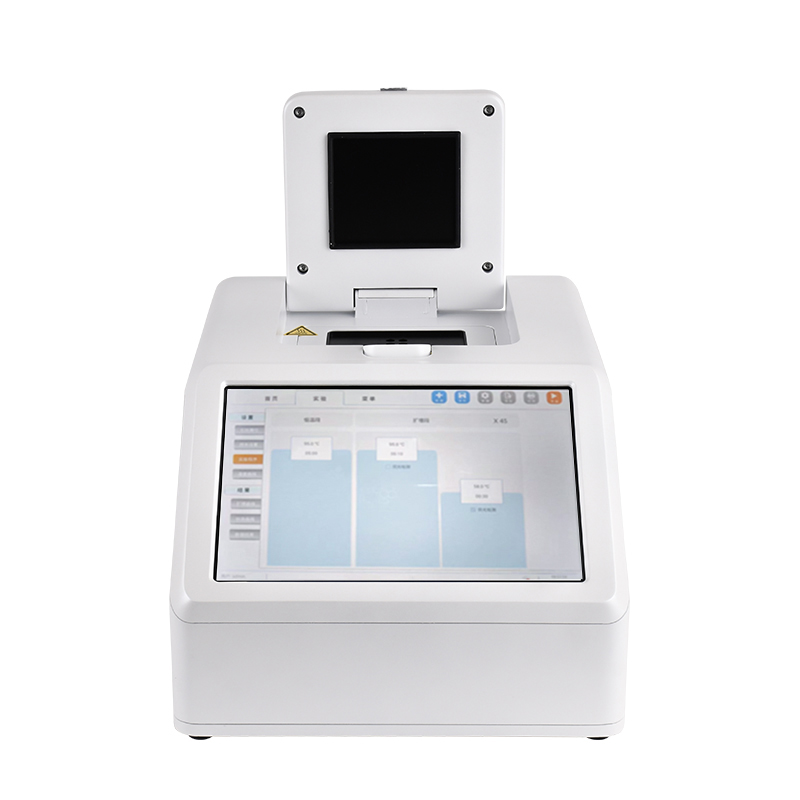

Animal Disease Detector

Product Usage:

The animal disease detector is suitable for detecting animal diseases, veterinary drug residues, toxic and harmful substances, and antibiotic residues in livestock and poultry products such as pigs, chickens, ducks, sheep, cows, and milk. It can be widely used in food and drug supervision bureaus, health departments, higher education institutions, research institutes, agricultural departments, animal husbandry and veterinary clinics, breeding farms, slaughterhouses, food and meat product deep processing enterprises, inspection and quarantine departments, and other units.

Application Scope:

The animal disease detector can quickly detect pig blue ear virus, swine fever virus, aflatoxin B1, porcine pseudorabies virus, porcine pseudorabies virus gE protein, porcine foot-and-mouth disease 3ABC protein, porcine foot-and-mouth disease virus IgG, porcine parvovirus, chicken avian influenza and other rapid tests on site. It can also perform qualitative tests on clenbuterol hydrochloride, ractopamine, salbutamol, enrofloxacin, chloramphenicol, streptomycin, melamine, gentamicin, sulfonamides, quinolones, furans, tetracyclines, amoxicillin, malachite green, aflatoxins (B1, B2, G1, G2, M1, M2), disease diagnosis, ciprofloxacin, erythromycin, oxytetracycline, quinoxaline, estradiol and other items.

Product Performance:

Colloidal gold module detection method: track type automatic transmission scanning, automatically exits the test strip after detection is completed.

CT line automatic recognition, no need for manual adjustment.

Sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

Built in powerful database allows for direct selection of sample names, detection indicators, and inspection units on the instrument, as well as direct editing and input of sample names, detection indicators, inspection units, and other information into the sample database.

Compatible with all colloidal gold cards on the market, with unrestricted use of consumables, greatly enhancing the user experience.

Main Parameters:

1. The main control chip adopts a 32-bit processor, which runs faster and has strong stability.

2. Display mode: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

3. DC 12V power supply, can be connected to car power supply.

4. Pulse type constant current drive to avoid light decay and temperature drift caused by continuous light emission.

5. Built in with the latest national limited edition standards, can continue to be updated.

6. Password login can be set

7. Continuous injection and testing

8. Sample numbers are automatically accumulated.

9. The testing items can be expanded.

10. The test results can be printed and uploaded in batches.

11. The test results are in an Excel spreadsheet, which can be copied by connecting to a computer.

12. Storage capacity for 200000 test results

13. Support Wifi network, data can be uploaded on LAN and Internet, and the test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision and big data analysis processing, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning

14. High speed thermal printer, capable of automatically printing inspection reports upon completion of testing.

15. Standard USB interface, no driver installation required.

16. Firmware upgradable
