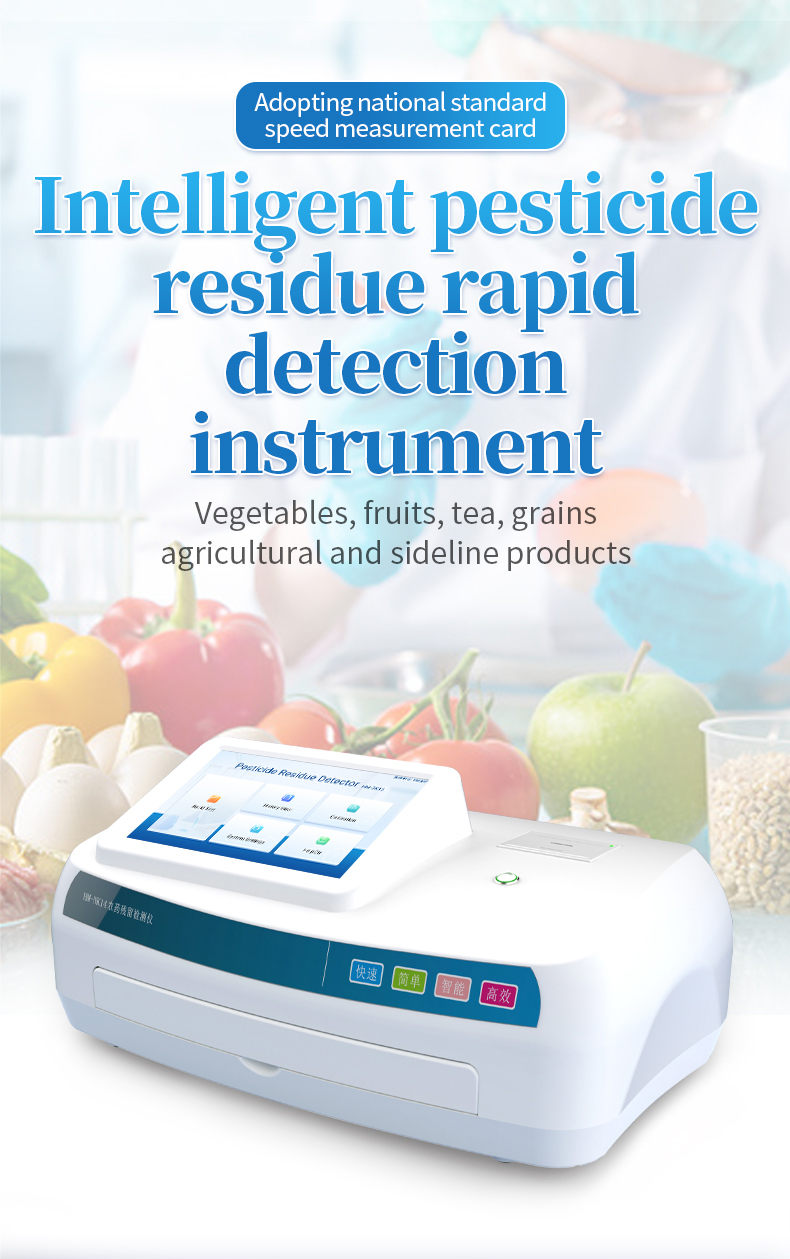

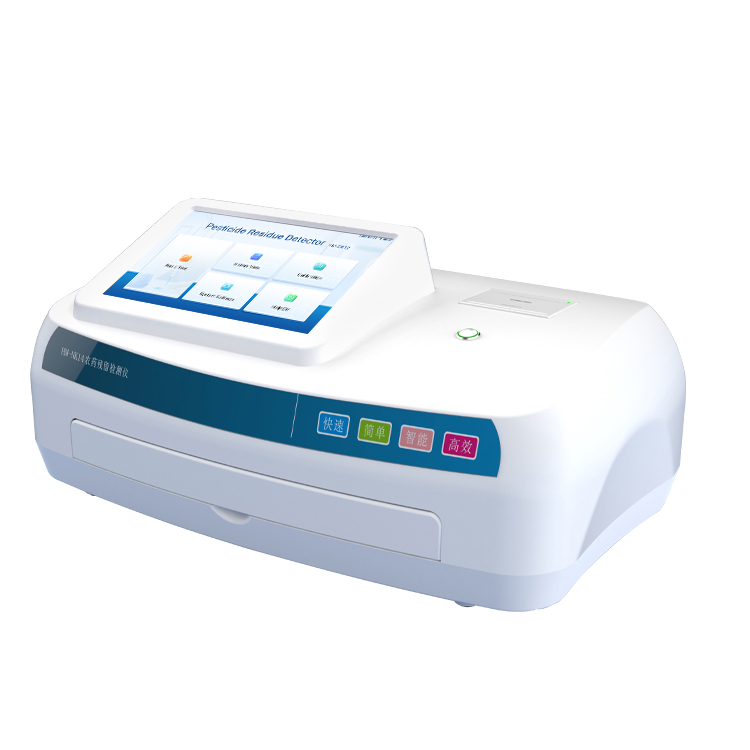

Intelligent pesticide residue detector

Product Introduction:

This instrument is a newly developed pesticide residue rapid detection device by Hengmei Technology, which uses a national standard rapid detection card to make the detection speed faster and the operation more convenient. Testing standards: Designed based on national standard methods (GB/T5009.199-2003) and requirements such as the World Health Organization (WHO), the Food and Agriculture Organization of the United Nations (FAO) residue pesticide testing standards, and the World Environmental Protection Agency (EPA) reference intake.

Using enzyme inhibition rate colorimetric method to quickly and accurately detect the residual content of organophosphorus and carbamate pesticides in vegetables, fruits, tea, grains, agricultural and sideline products and other foods; Widely used for on-site testing in fruit and vegetable tea production bases and agricultural wholesale sales markets, safety speed testing in agricultural departments, school canteens, market supervision bureaus, testing centers, etc.

Instrument features:

1. ★ Adopting the rapid testing card method eliminates redundant steps and improves the testing experience and efficiency

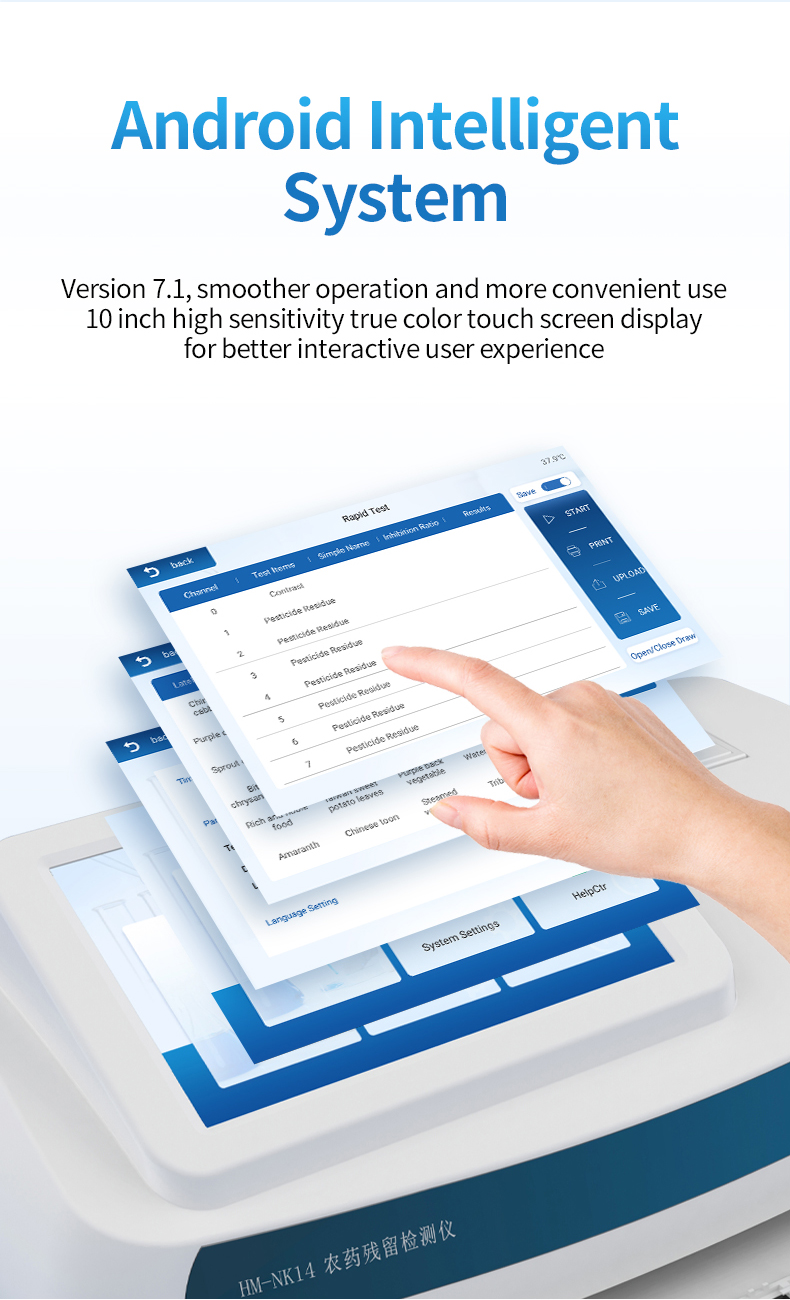

2. Android Smart System 7.1 version, with smoother operation and more convenient use.

3. ★ 10 inch high-sensitivity true color touch screen display, providing a better interactive user experience.

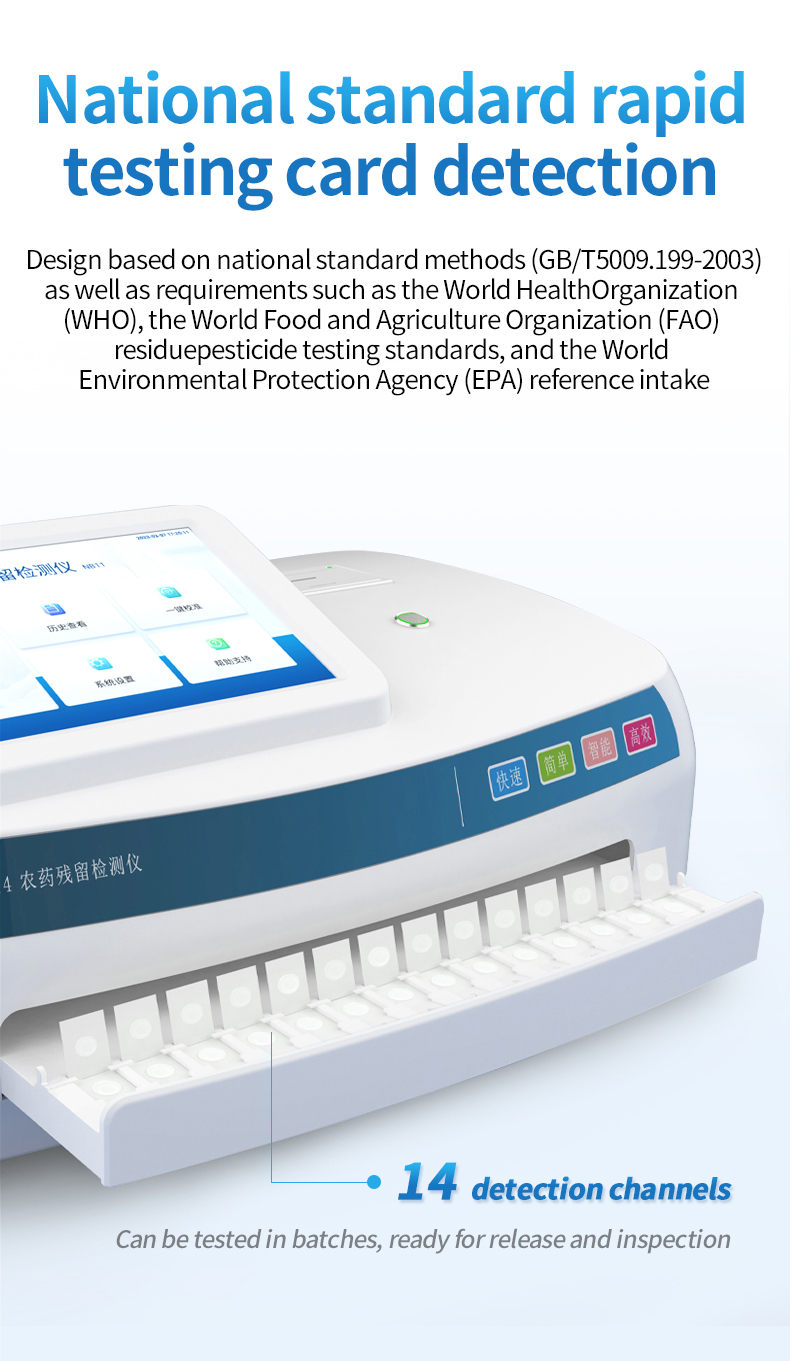

4. ★ With 14 detection card channels, it can test more samples in batches, allowing for immediate testing and higher detection efficiency.

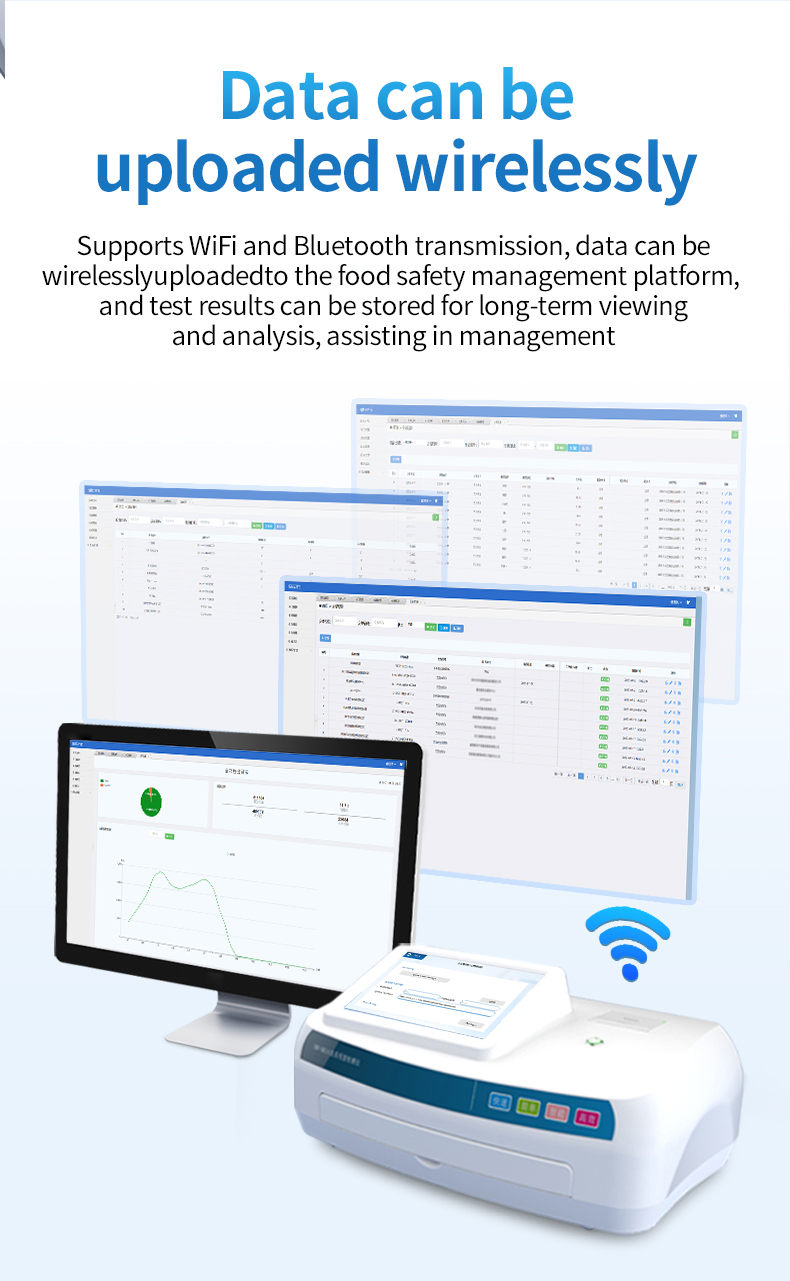

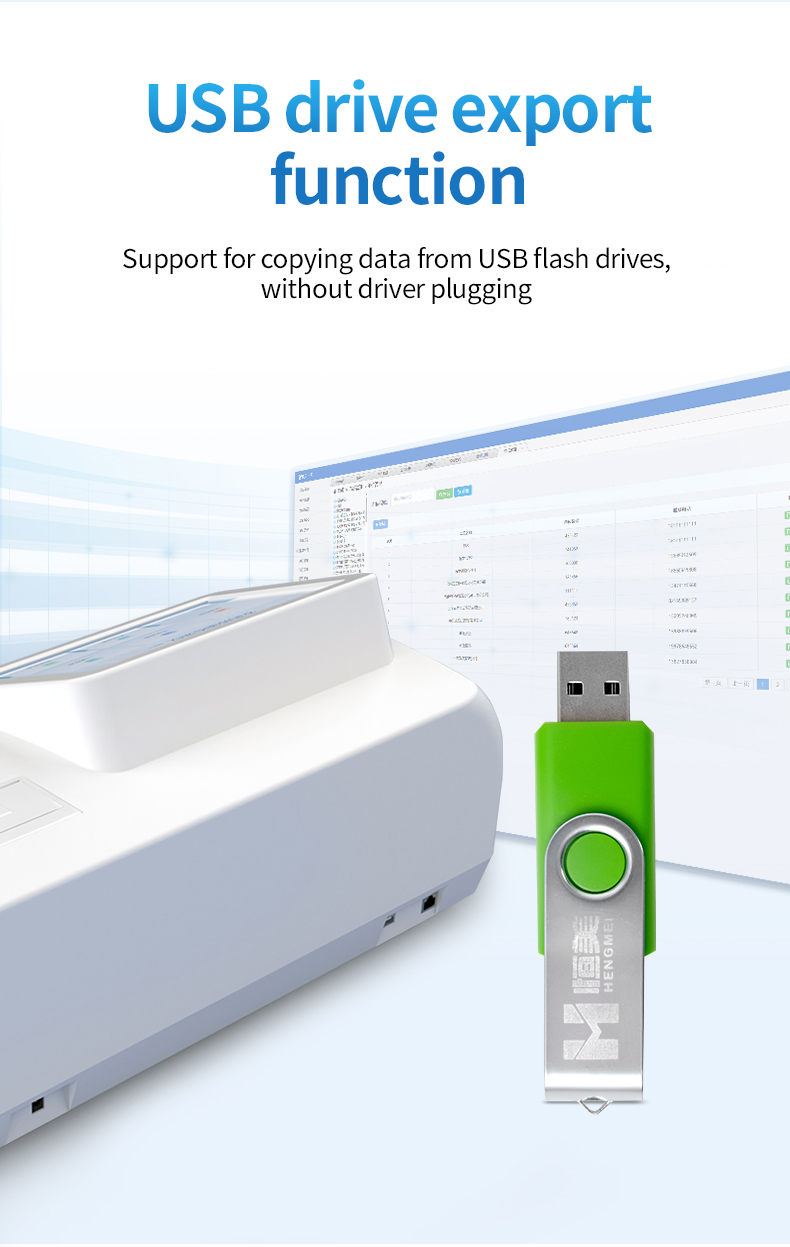

5. Supports WiFi and Bluetooth transmission, data can be uploaded wirelessly; Supports copying data from USB flash drives without driver insertion and removal.

6. Configure a food safety management platform, which can store test results for a long time, conduct long-term and short-term viewing and analysis, and assist in management.

7. The instrument has a menu library for classifying and managing vegetable names, and can edit information such as vegetable names and testing units as needed.

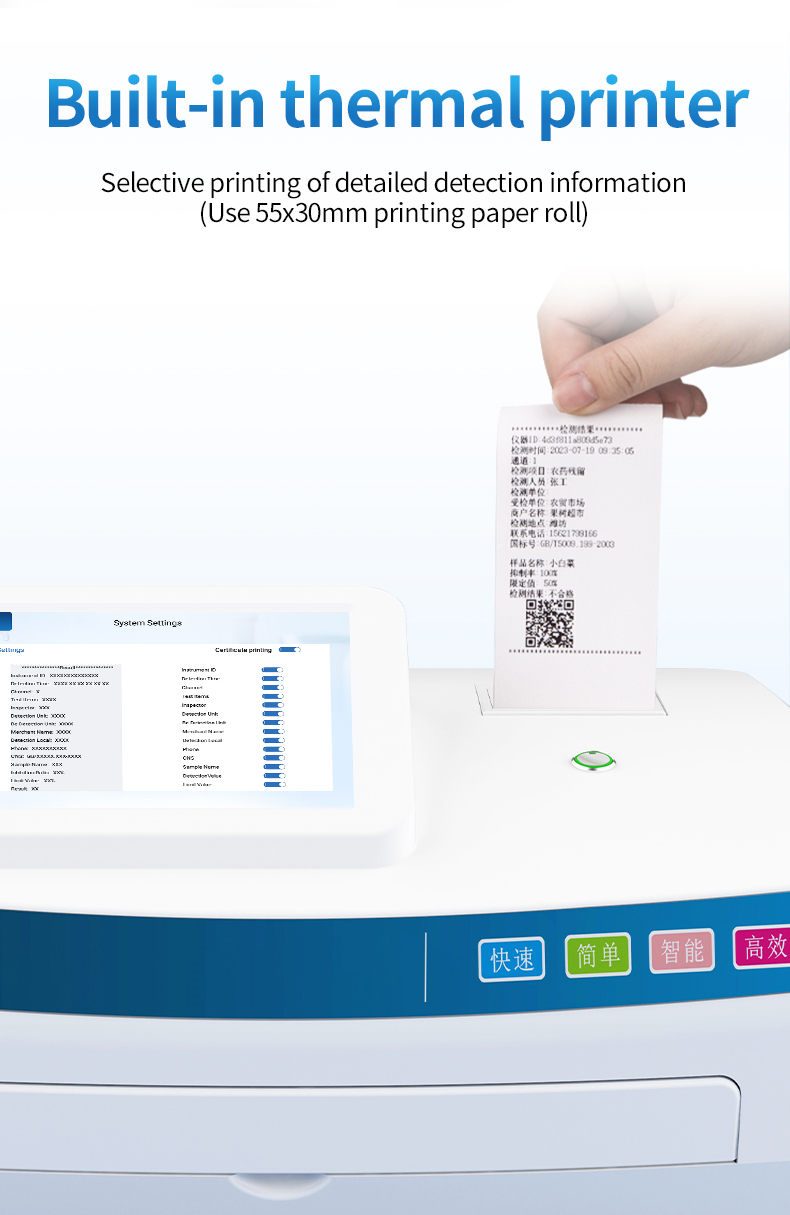

8. Built in thermal printer, which can selectively print detailed detection information.

9. During the detection process, the detection chamber will automatically pop up and close.

10. The main control adopts a multi-core processor with a main frequency of 1.88GHz, which runs faster and has stronger stability.

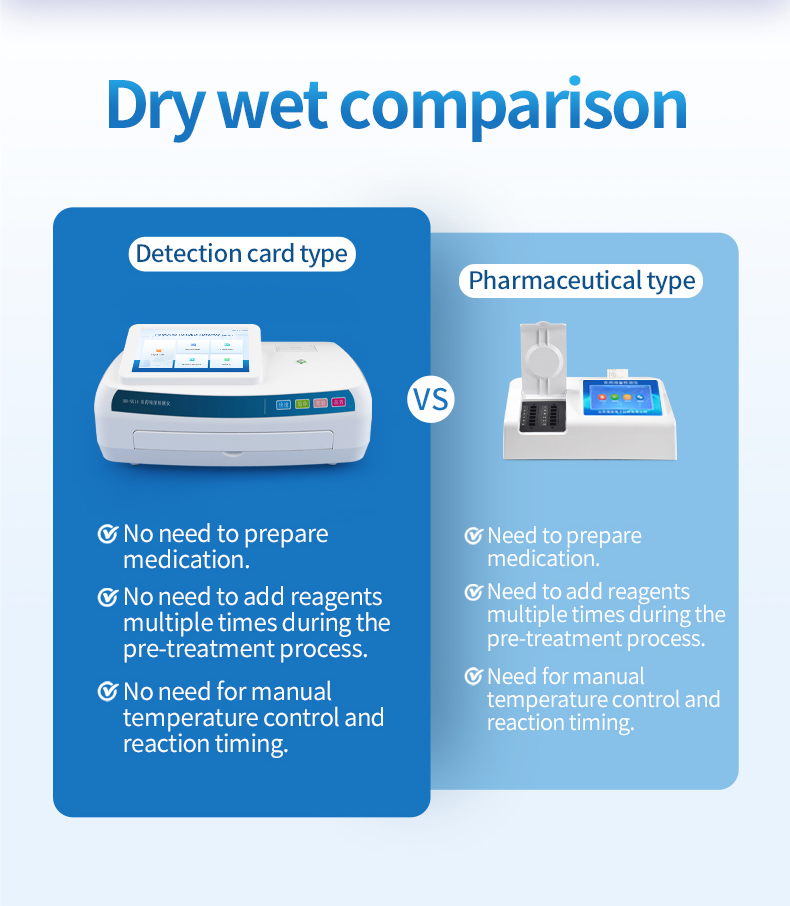

Compared with the application of drug types:

Pharmaceutical type: requires the preparation of reagents, multiple additions of reagents are required during the pre-treatment process, and manual temperature control and reaction timing are necessary

Detection card: No need to configure reagents, no need to add reagents multiple times during the pre-treatment process, no need for manual temperature control and reaction timing

Technical parameters:

Verification standard: GB/T5009.199-2003

Inhibition rate display range: 0% to 100%;

Inhibition rate measurement range: 0% to 100%;

Inhibition rate indication error: ≤ 10%

Inhibition rate repeatability: ≤ 5%

Heating time: 1 second to 60 minutes can be configured (with dual time settings for reaction and color development)

Constant temperature: 10.0 ℃ -50.0 ℃ configurable (dual temperature settings for reaction and color development)

Detection channel: 1 blank channel+13 sample channels

Data communication: USB, LAN, WIFI communication, optional 4G, HDMI

Printer: Thermal printer, using 55x30mm printing paper roll

Environmental temperature: 0 ℃ -40 ℃

Environmental humidity: 10% -75%

Power parameters: Machine DC port: 12V/5A

Power adapter: AC 110V-240V/50-60Hz

Built in battery: Optional built-in lithium battery, with a power supply time of 4 hours

Dimensions: 530 * 310 * 240mm (length * width * height)

Host weight: 5.8KG
