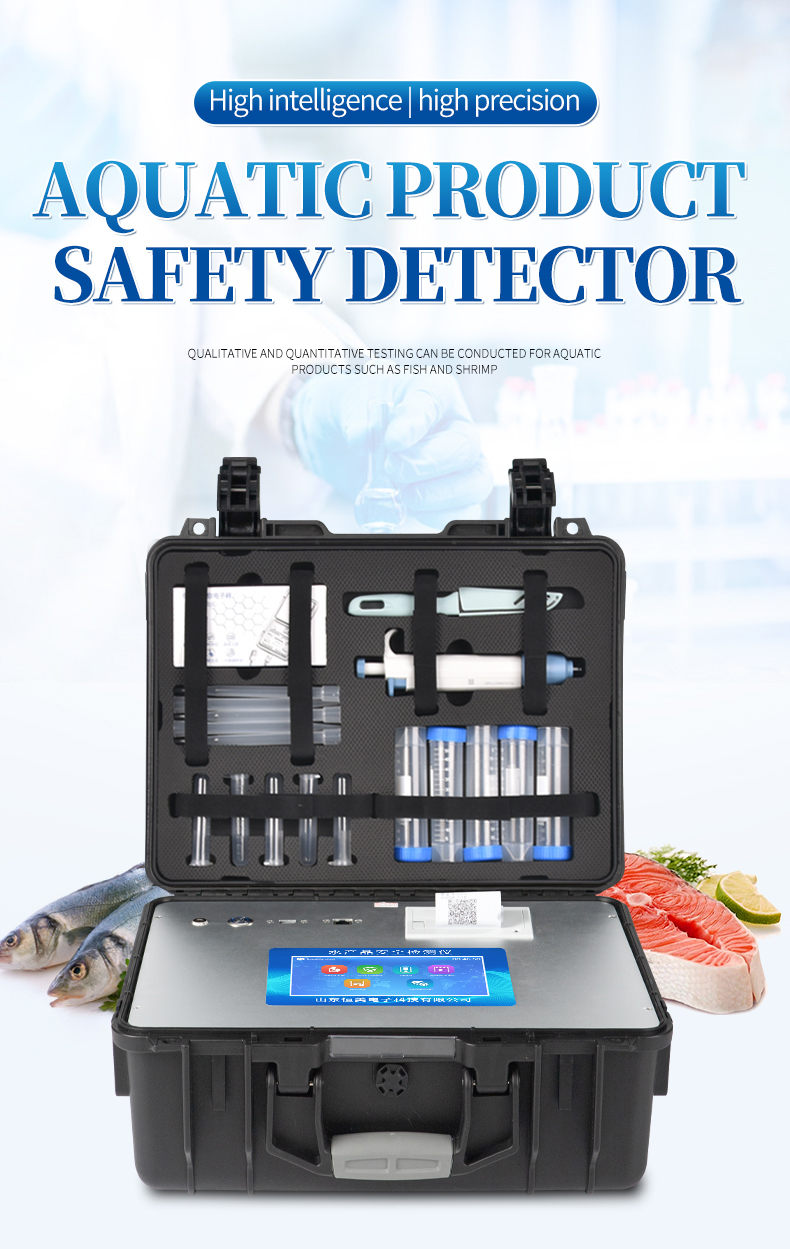

Comprehensive Aquatic Product Testing Instrument

Product Introduction:

The comprehensive detection instrument for aquatic products can quickly detect histamine and volatile basic nitrogen in fish, shrimp and other aquatic products, as well as chloramphenicol, malachite green, tetracyclines, nitrofurans, sulfonamides, quinolones, sulfonamides, florfenicol, diazepam; Additives such as formaldehyde, hydrogen peroxide, industrial alkali, benzoyl peroxide, oxalic acid, etc; The rapid detection system for heavy metals such as lead, chromium, cadmium, mercury, arsenic, etc. utilizes the principle of suppression immunoassay and photoelectric colorimetric method. It is an integrated food safety rapid detection and analysis equipment, widely used in agricultural markets, seafood markets, food and meat product deep processing enterprises, food and drug supervision bureaus, health departments, aquaculture farms, inspection and quarantine departments, agricultural departments, third-party institutions and other units.

Functional Features:

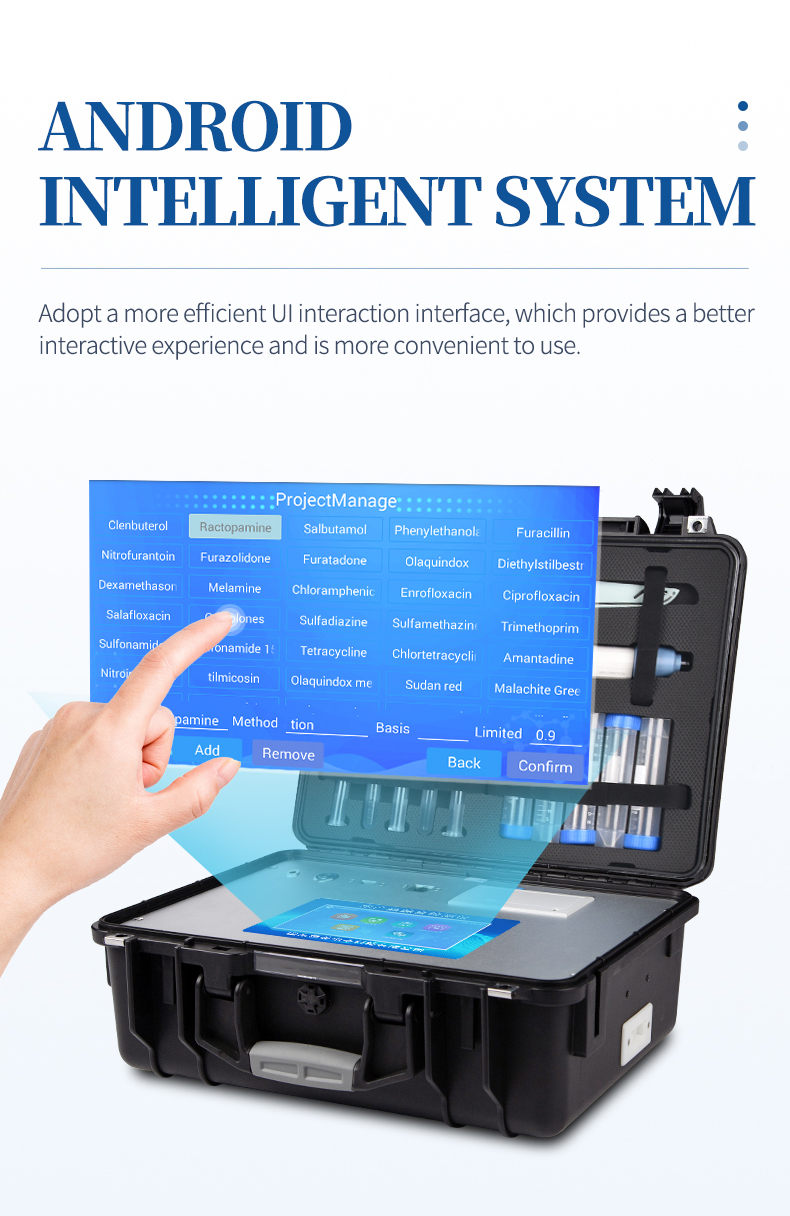

1. The Android intelligent system adopts a more efficient UI interactive interface, providing a better interactive experience and making it more convenient to use.

2. The instrument has WiFi, Bluetooth, 4G network transmission, data can be uploaded wirelessly, and also has Ethernet connection function.

3. High degree of intelligence, the instrument has self checking function: it has power on self checking and zero adjustment functions, and automatic detection of repeatability function.

4. ★ The instrument is equipped with a supervision platform, and the data can be uploaded on the LAN and Internet, and the test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis and processing, and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning

5. Integrated host, including colloidal gold immunochromatographic detection module and photoelectric colorimetric module.

6. Integrated portable rapid testing equipment, meeting the needs of on-site and mobile testing, capable of detecting all testing items under the same software, and displaying testing results intuitively through the same window.

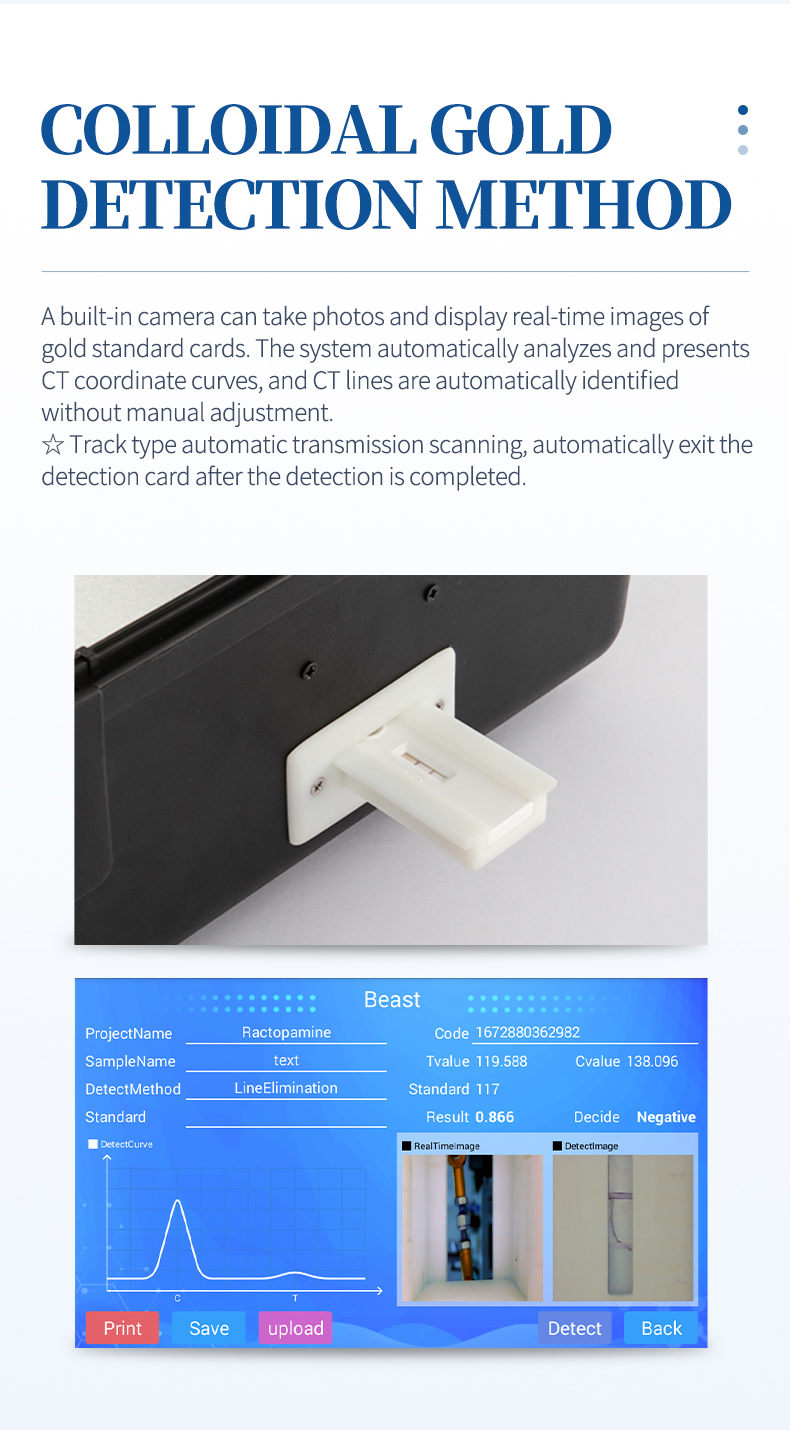

7. Colloidal gold module detection method: track type automatic transmission scanning, automatically exits the detection card after the detection is completed.

8. The instrument is equipped with a built-in camera for taking photos, which can display real-time images of the gold label card. The system automatically analyzes and presents CT coordinate curves, and CT lines are automatically recognized without manual adjustment.

9. Built in powerful database with multi category and multi type sample menu function, allowing flexible selection of testing samples. Different testing channels can simultaneously test different sample items. It is also possible to directly edit and input information such as sample name, detection indicators, and sending unit on the instrument, and save them into the sample database.

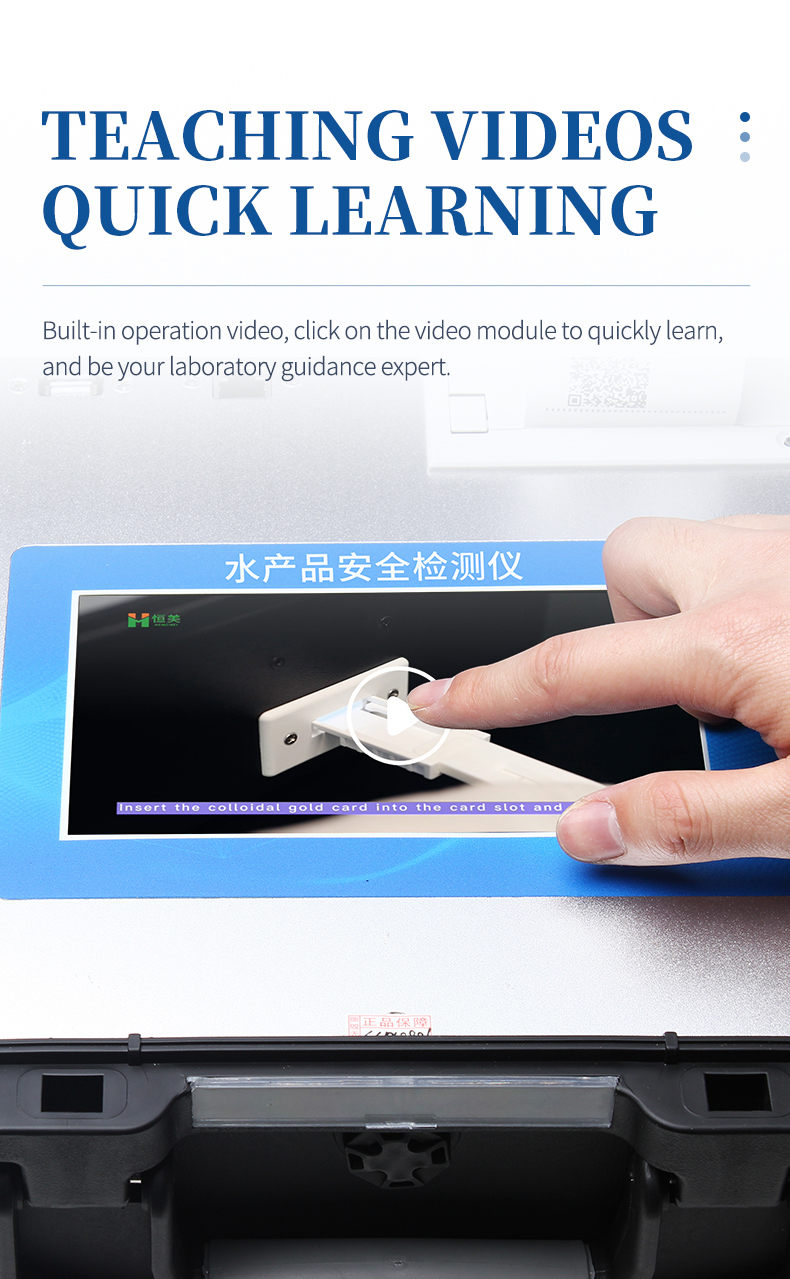

10. ★ The instrument is equipped with built-in operation videos, which can be quickly learned by clicking on the video module. It is your laboratory guidance expert by your side.

11. Sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

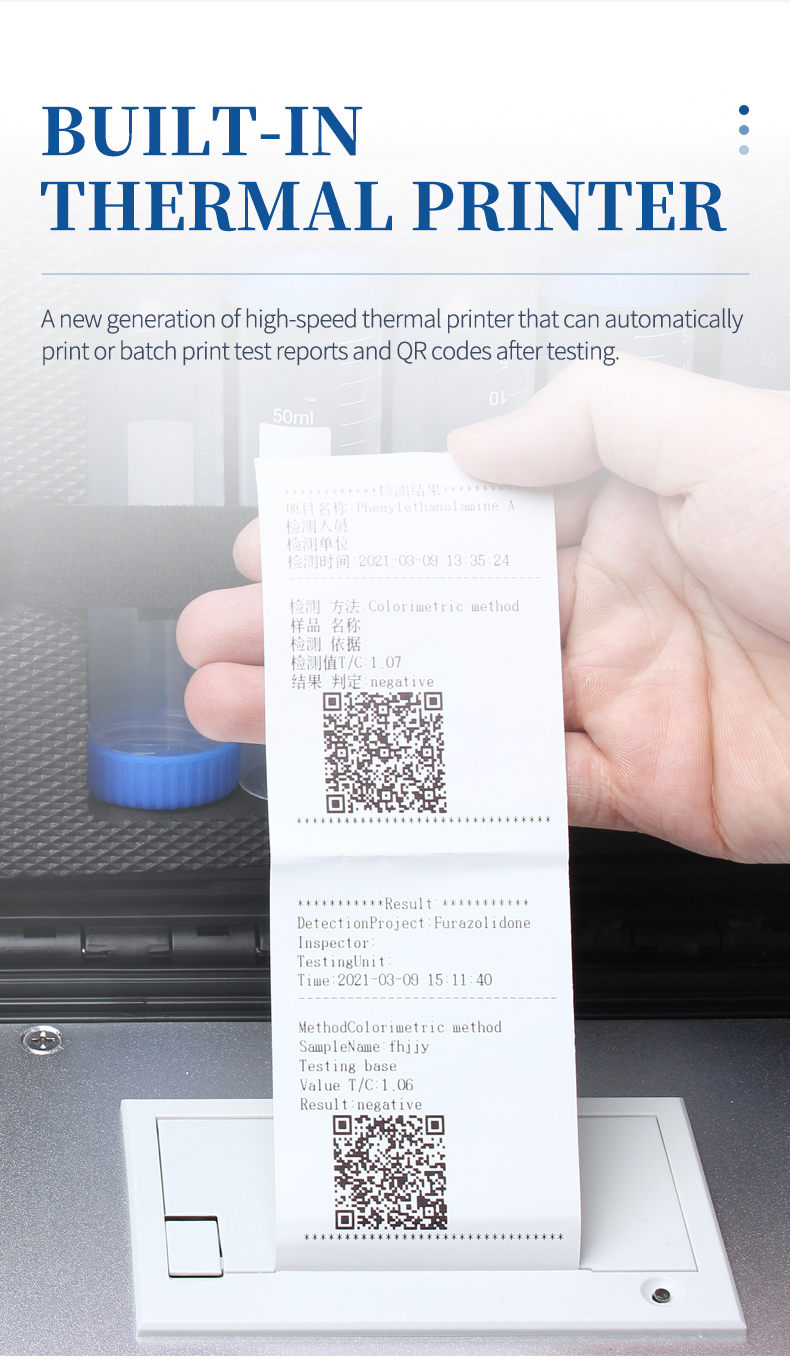

12. The new generation of high-speed thermal printers can automatically print or batch print inspection reports and QR codes upon completion of testing.

13. ★ The instrument can be configured with identity recognition function, which can be turned on through password or ID flashing to prevent non staff operations.

14. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

15. The instrument has the functions of recalibration, locking, and factory reset.

16. The result judgment line can be modified, the reference value calibration value can be saved, and data will not be lost when power is turned off.

17. Compatible with all colloidal gold cards on the market, with unrestricted use of consumables, greatly enhancing the user experience.

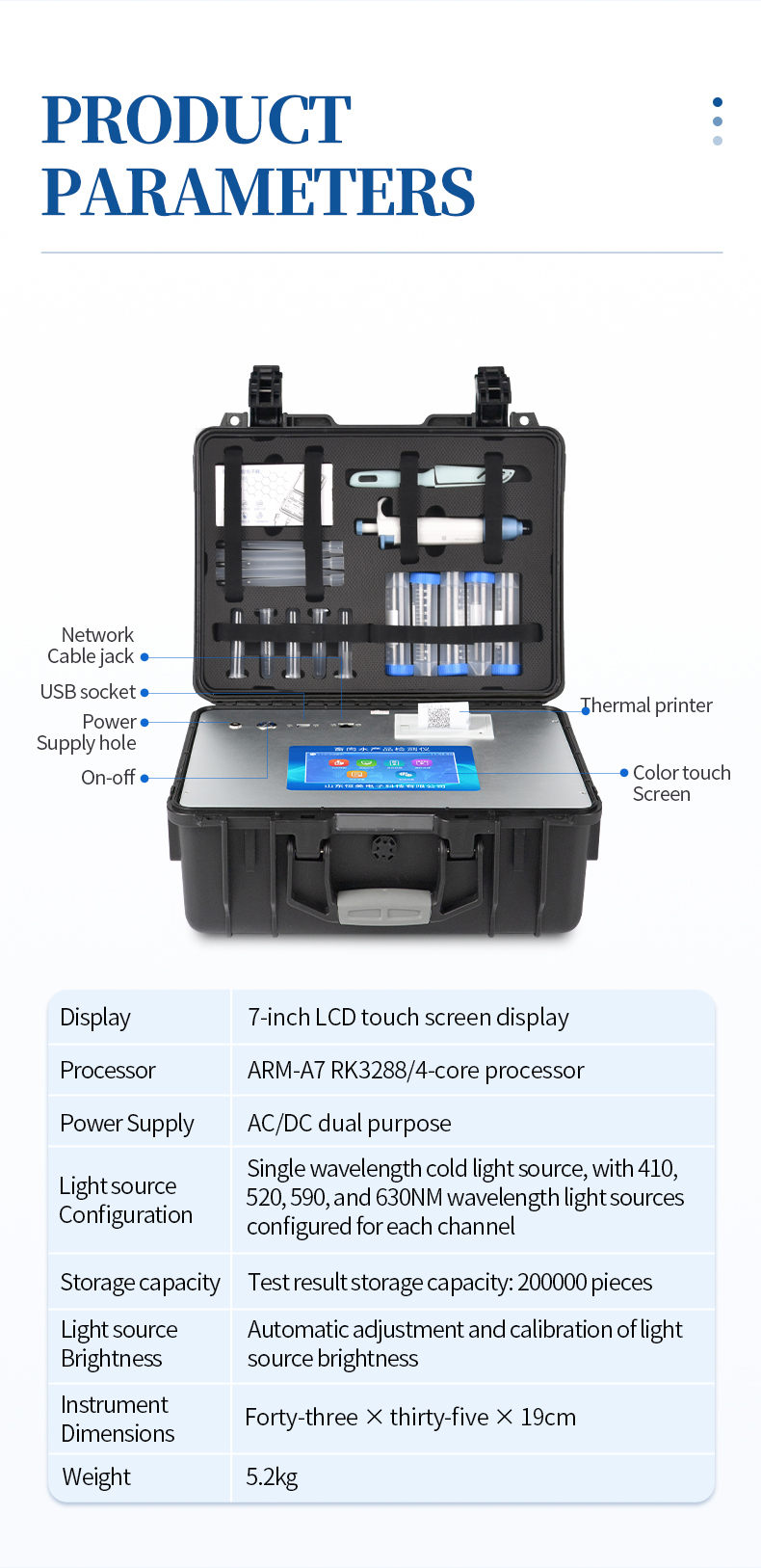

Main Parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4-core processor, with a main frequency of 1.88GHz, faster operation speed and stronger stability.

2. Display mode: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

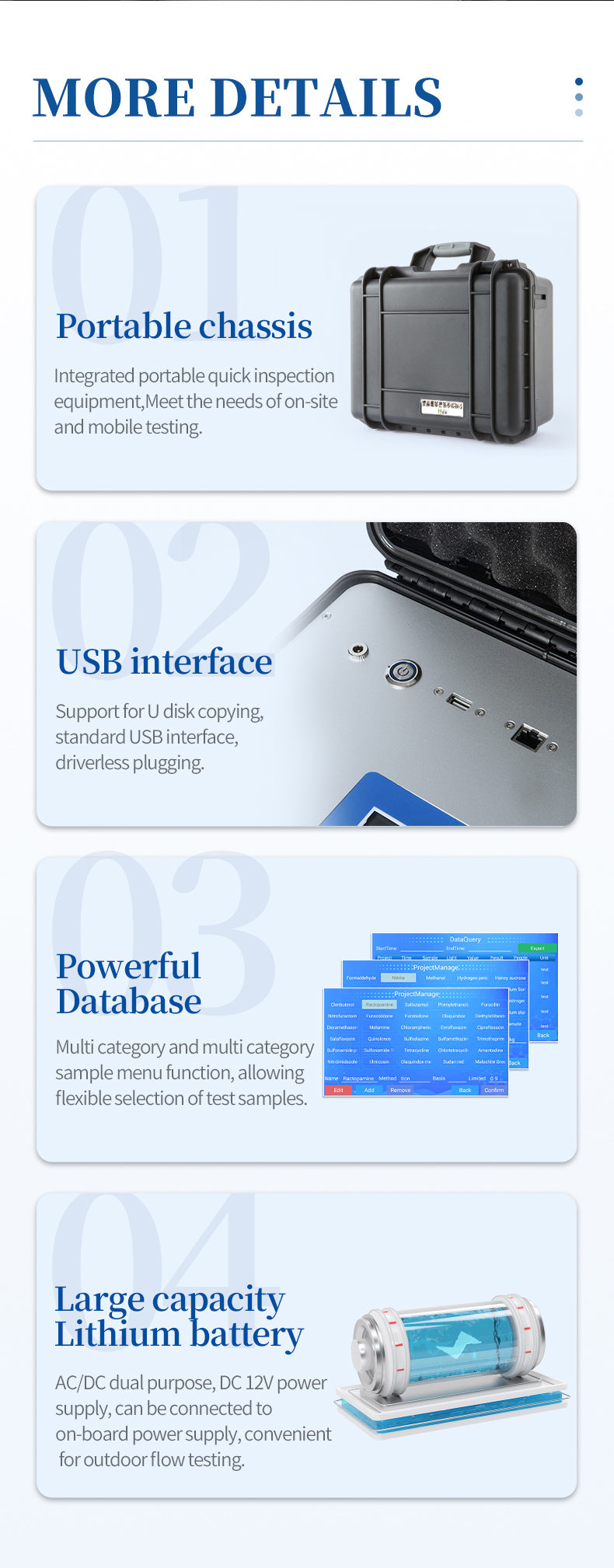

3. Dual use of AC and DC, powered by 12V DC, can be connected to a car power supply, and can be equipped with a 6-hour large capacity rechargeable lithium battery for convenient outdoor flow testing.

4. ★ Four wavelength cold light source, 12 detection channels, each channel is equipped with 410, 520, 590, 630nm wavelength light sources, standard with advanced optical path switching device, professional optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

5. Intelligent constant current and voltage stabilization, automatic adjustment and calibration of light intensity, and long-term continuous operation of the light source without temperature drift phenomenon.

6. ★ Built in new national limited edition standards, on-site comparison with measured results, and continuous updating of standards.

7. Continuous injection and testing

8. Sample numbers are automatically accumulated.

9. The data can be uploaded wirelessly to the platform and exported as an Excel spreadsheet.

10. The storage capacity for test results is 200000 pieces.

11. ★ Supports USB copying, standard USB interface, and driver free insertion and removal.

12. The detection items are expandable and the firmware can be upgraded

13. Instrument size: 43 × 35 × 19cm, net weight of host: 5.2kg

★ Manufacturers must have a food safety testing intellectual property management system certification certificate

★ The manufacturer has high-tech enterprise certification

★ The instrument has copyright for food safety transfer

The instrument has a metrological report issued by a national metrology research institute

★ The reagent has a reagent testing report issued by a national metrology research institute

★ Has ISO9001 quality management system certification

★ Manufacturers must have independent trademark intellectual property rights
