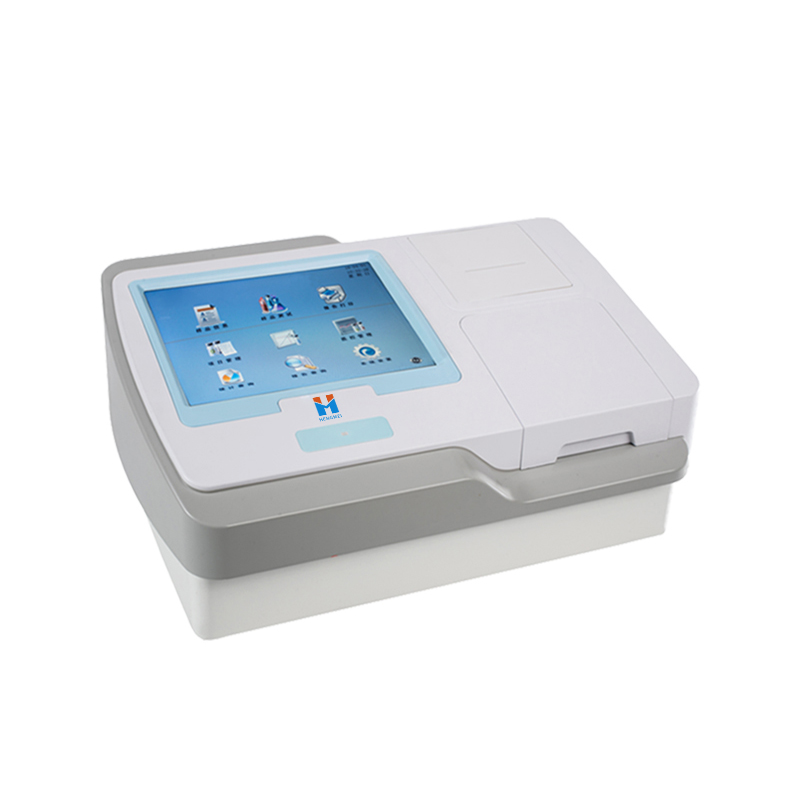

Animal Disease Rapid Diagnostic Instrument

Testing Items

The animal disease rapid diagnosis instrument is a new detection instrument newly launched by our company. The system uses enzyme-linked immunosorbent assay and corresponding reagents to qualitatively or quantitatively diagnose animal diseases. For example, testing for diseases such as porcine blue ear virus, swine fever virus, porcine pseudorabies virus, porcine pseudorabies virus gE protein, porcine circovirus, porcine Japanese encephalitis virus, porcine foot-and-mouth disease 3ABC protein, porcine foot-and-mouth disease virus IgG, porcine parvovirus, avian influenza, bluetongue disease, vitiligo syndrome, bovine contagious pleuropneumonia, bovine distemper, sheep pox, and goat pox can be customized according to customer needs.

Product Features

*10.4-inch color LCD touch screen input, large screen display, quick operation;

*Full screen display of 96 hole visual layout operation interface;

Automatically store standard curves, and users can make corrections to the standard curves;

Built in embedded system allows for operation, storage, and printing without the need for an external computer;

Automatic zeroing can be performed in both single wavelength and dual wavelength testing modes;

Optional external PC software, networked support, catering to the direction of digital development, customizable upload;

*Massive storage, capable of storing at least 1 million board (96) test data and 500 programming projects, and supporting data backup, recovery, and merging;

*24 different items can be tested on the same board and can be distinguished by display, and qualitative and quantitative items can be detected on the same board;

*Template function, fixed detection work, greatly simplifies the workload of operators;

Intelligent calculation of test results ensures their accuracy and effectiveness, and can automatically trigger alarms;

New Windows color graphical interface, fully Chinese operating system, supports mouse, keyboard, and multiple input methods;

Intelligent switch for light source, extending its lifespan;

*Comprehensive and complete quality control functions, including Westguard multi rule quality control, instant method quality control, and various quality control charts and parameter calculations, with quality control alarm function;

Provide multiple printing methods and various forms of Chinese reports, and can customize various reports;

*The functions of board layout and saving import greatly improve the testing efficiency of commonly used projects;

*You can choose absorbance, Cut Off qualitative calculation, single point calibration, line regression, linear regression, exponential regression, logarithmic regression, double logarithmic regression, etc log-logit、 Calculation methods such as power regression, four parameter regression, and enzyme inhibition rate;

Specialized system maintenance menu, automatically determines the current status and performance indicators of the instrument, and can print relevant data;

Technical Parameter

Wavelength range: 330-1100nm

*Filter configuration: 10 filter positions, standard configuration includes 405nm, 450nm, 492nm, 630nm, and optional 6 custom wavelengths

Absorption range: 0.000-4000A

*Number of optical channels: 8-channel optical path detection, with an additional independent reference channel

*Stability of indication: ≤± 0.002A or ≤ 0.5% T/10min

*Indication error (accuracy): ≤± 0.005A or ± 0.2% T

*Repeatability: ≤ 0.2% or ≤ 0.2% T

Sensitivity: ≥ 0.01 (L/mg)

Channel difference: ≤ 0.01A

Wavelength indication error: ± 1nm

Half width: ≤ 8nm

Peak transmittance: ≥ 35%

Resolution: 0.001A (display), 0.0001A (internal calculation)

*Reading speed: Single wavelength ≤ 3 seconds/96 holes, dual wavelength ≤ 6 seconds/96 holes

Vibration board function: adjustable speed and time

Light source type: halogen tungsten lamp

Flat noodles type: standard 96 well or other types of enzyme standard plate and strip

Applicable hole types: flat bottom, U-shaped, and V-shaped

*Display mode: 10.4-inch color LCD screen display

Input method: Touch screen input, optional mouse and keyboard

Printing: Built in thermal printer, can be connected to an external printer

Interfaces: DVI port, VGA port, Ethernet port, USB port, audio port, RS232 serial port

Operating environment: Temperature range of 5-40 ℃; Humidity 15% -80%

Power supply voltage: 220V ± 10%, 50/60Hz

Volume: 470mm x 350mm x 210mm (length x width x height)

Weight: 11.5Kg
