Product Overview

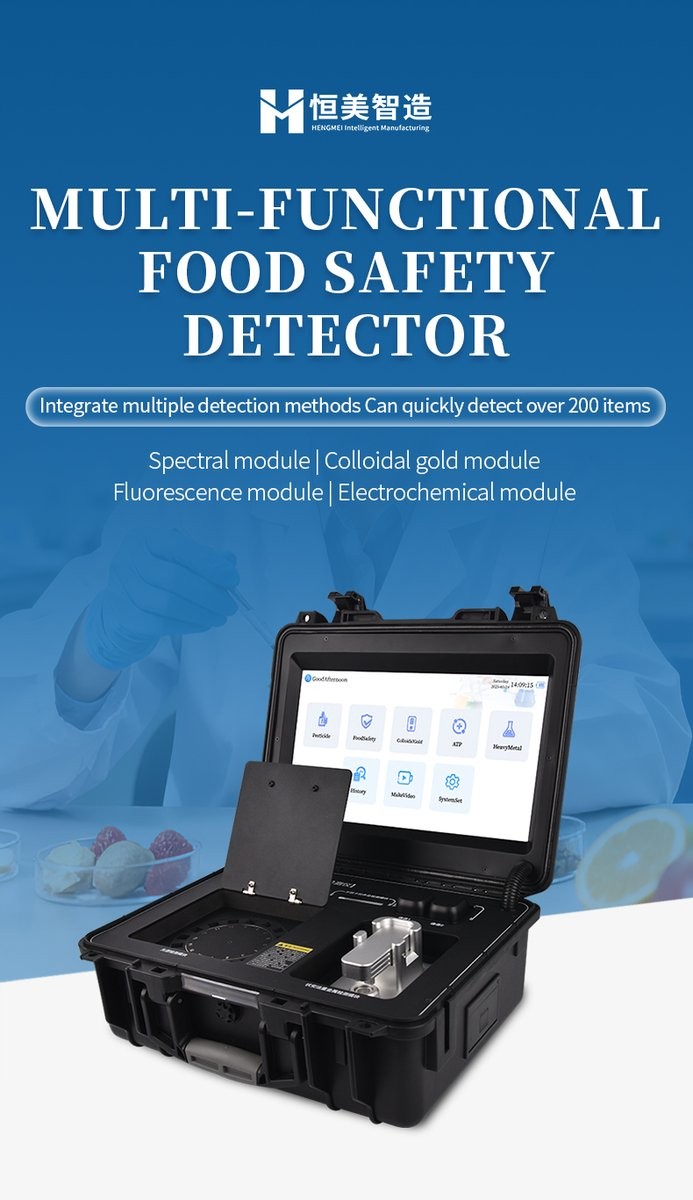

The HM-GS800 Integrated Food Safety Analysis System is a comprehensive mobile testing workstation designed for market surveillance authorities, agricultural wholesale centers, meat and food processors, and mobile enforcement laboratories. Built inside a heavy-duty portable case, the system integrates 16-channel rotating spectrophotometry, multi-card colloidal gold immunoassay, dual-channel ATP bioluminescence hygiene testing, and electrochemical trace heavy metal analysis. This unified testing station enables inspectors to perform multi-parameter qualitative and quantitative screening of over 200 contaminants on-site without sample degradation or transit delays.
Operating on an industrial Android 10 platform with an ARM Cortex-A7 processor, the system features a 15.6-inch high-definition touchscreen for responsive field operation. The unit is optimized for mobile field environments with dual AC/DC power options, an internal 20Ah lithium-ion battery delivering over 5 hours of untethered operation, and vehicle 12V DC connectivity. Integrated 4G LTE, Wi-Fi, Ethernet, and thermal receipt printing provide immediate regulatory documentation and automated synchronization with government food safety supervision databases.
Key Features

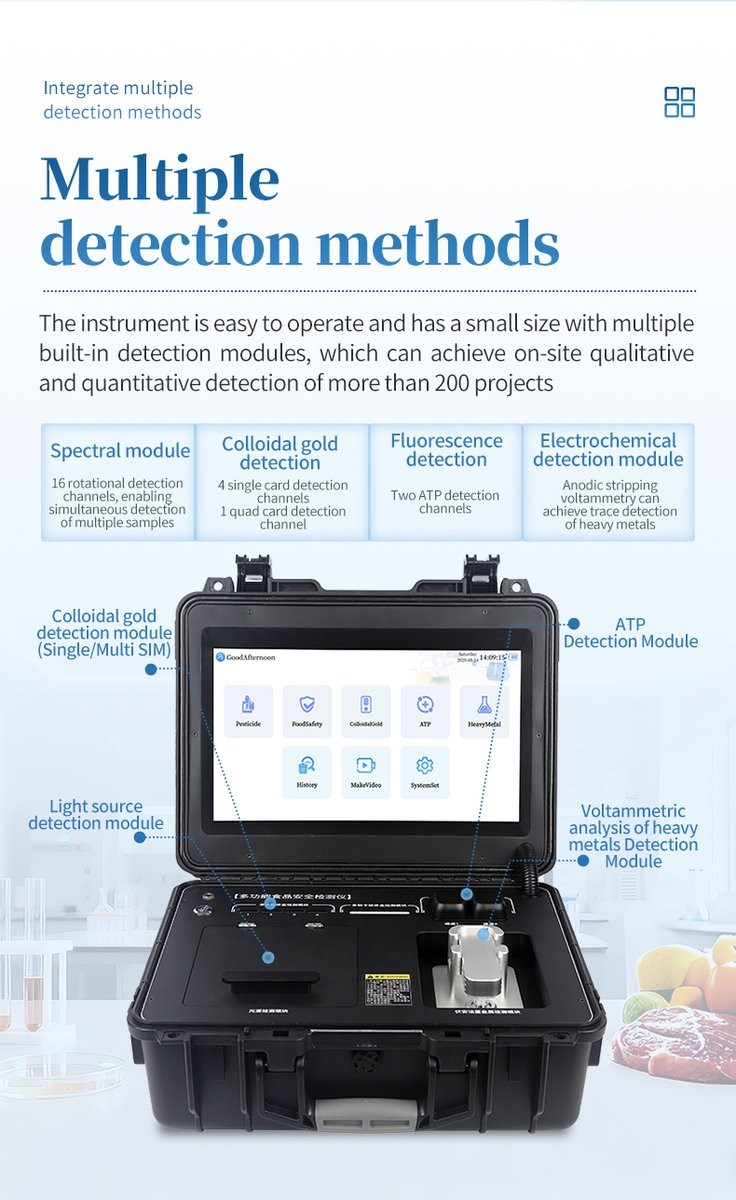

- All-in-One Field Screening Platform: Merges optical absorbance, rapid immunoassay, ATP bioluminescent surface hygiene, and voltammetric heavy metal trace analysis into one rugged portable unit.

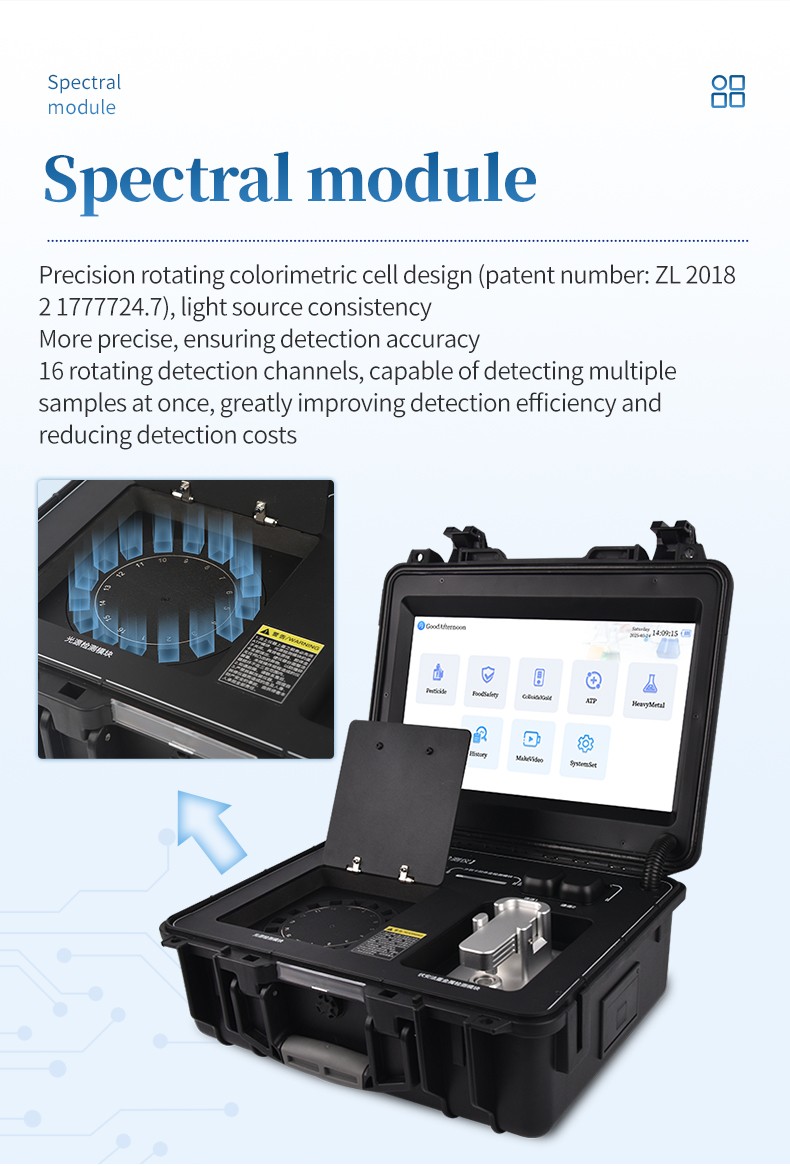

- High-Throughput Rotating Optical Carousel: Equipped with a patented 16-channel rotating colorimetric cell (Patent No.: ZL 2018 2 1777724.7) and six cold light sources (420, 470, 520, 560, 620, 700 nm) for rapid batch screening.

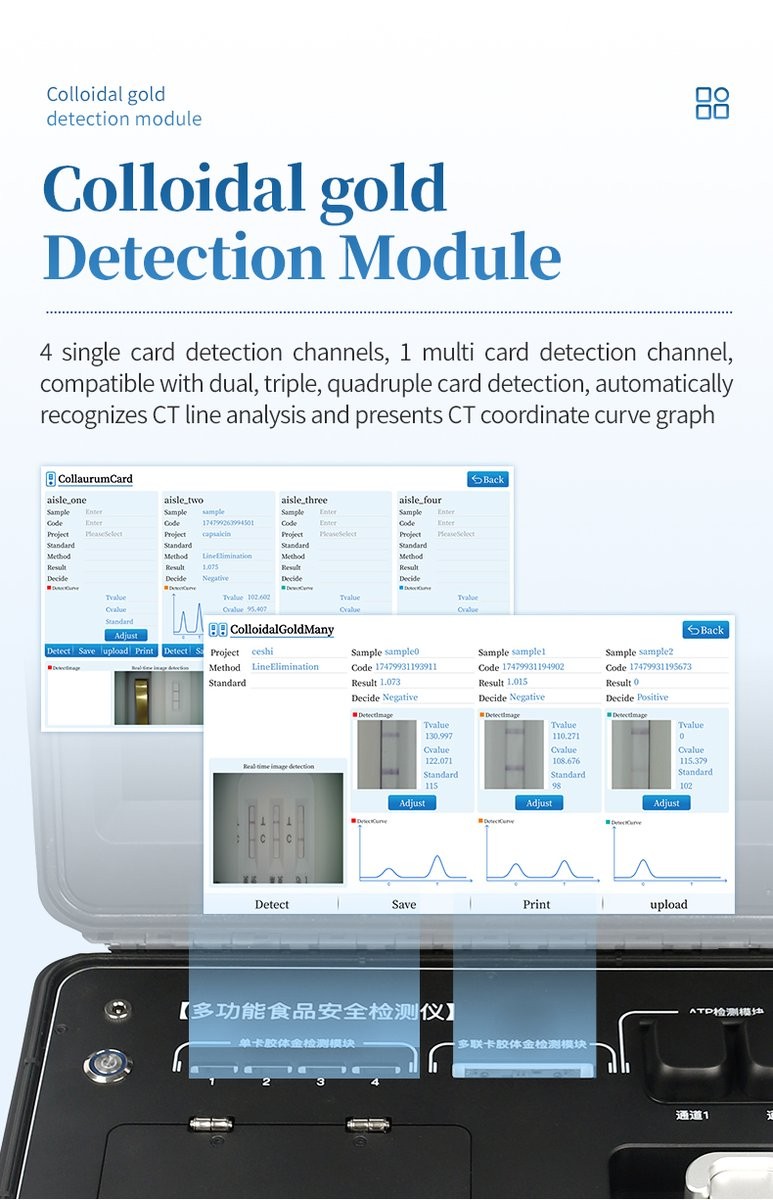

- Automated Test Strip Scanning: Offers 4 single-card slots and 1 multi-card chamber (supporting 2-in-1, 3-in-1, and 4-in-1 strips) with an integrated digital camera that recognizes C/T lines automatically and graphs quantitative CT curves.

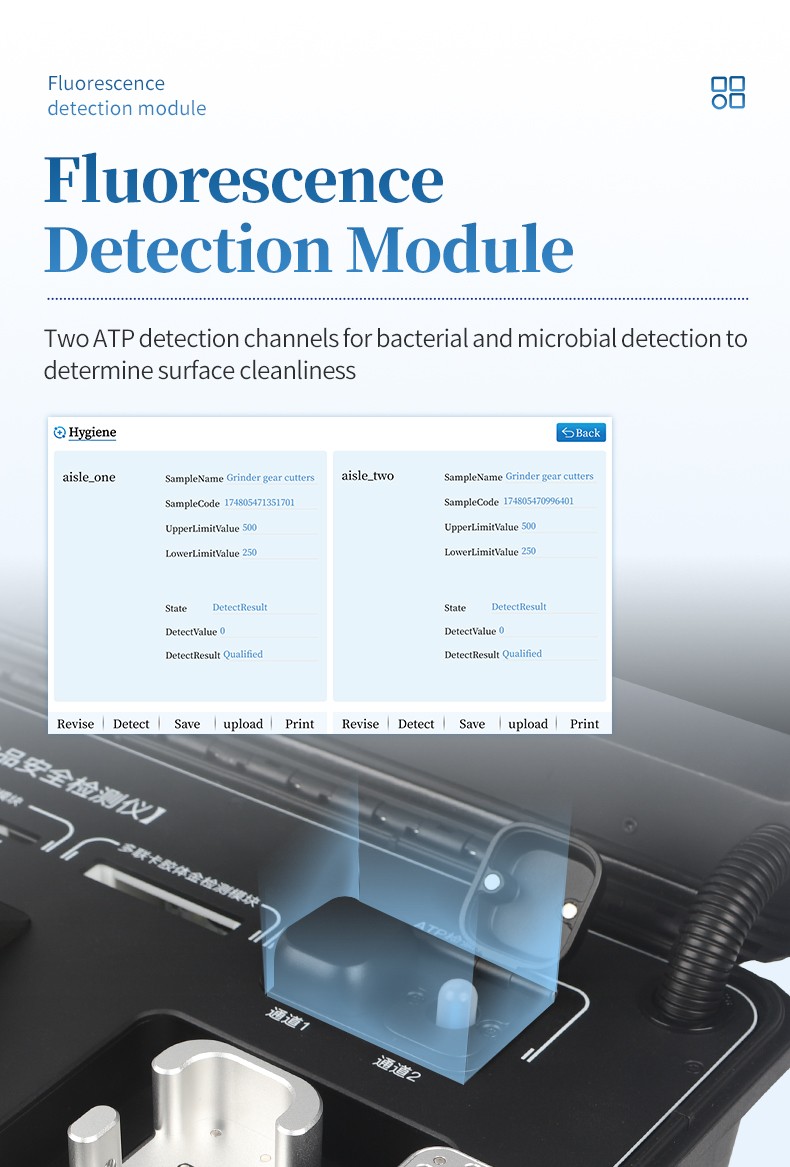

- Rapid 10-Second ATP Surface Hygiene Module: Dual bioluminescence channels with 10-15 to 10-18 mol ATP sensitivity evaluate bacterial cleanliness across food contact surfaces in 10 seconds.

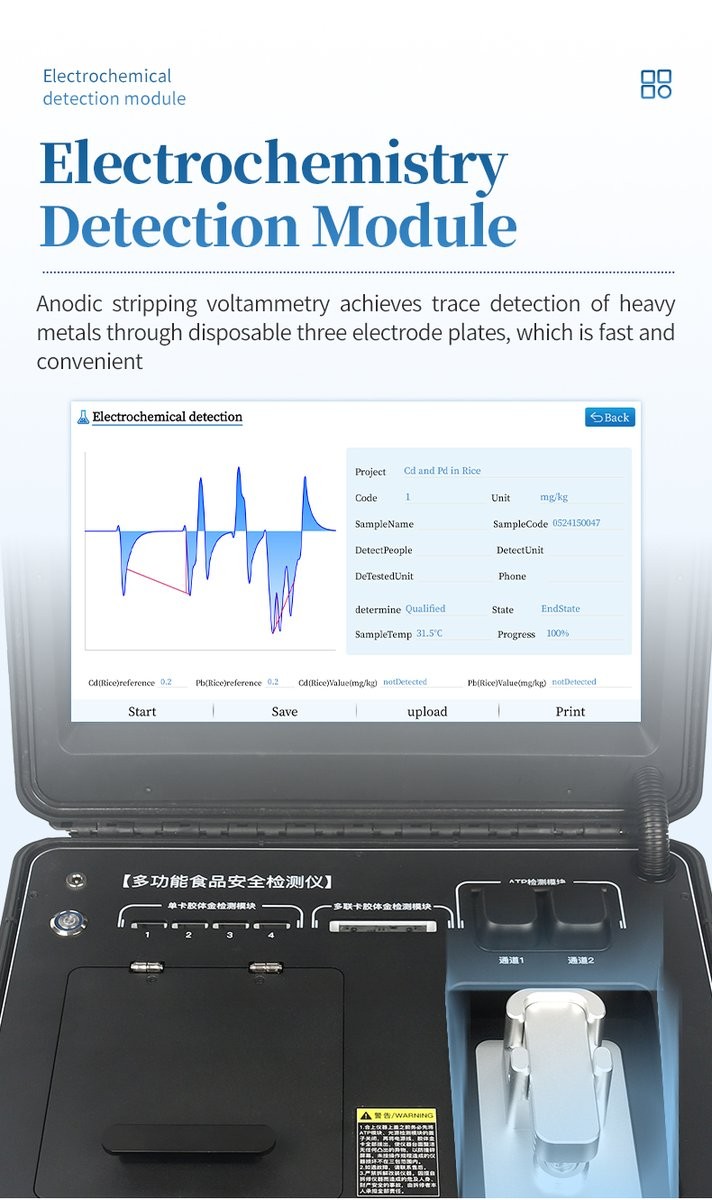

- On-Site Electrochemical Trace Heavy Metals: Anodic stripping voltammetry on disposable three-electrode sensors quantifies lead, cadmium, arsenic, and mercury down to 0.5 ppb resolution in approximately 280 seconds.

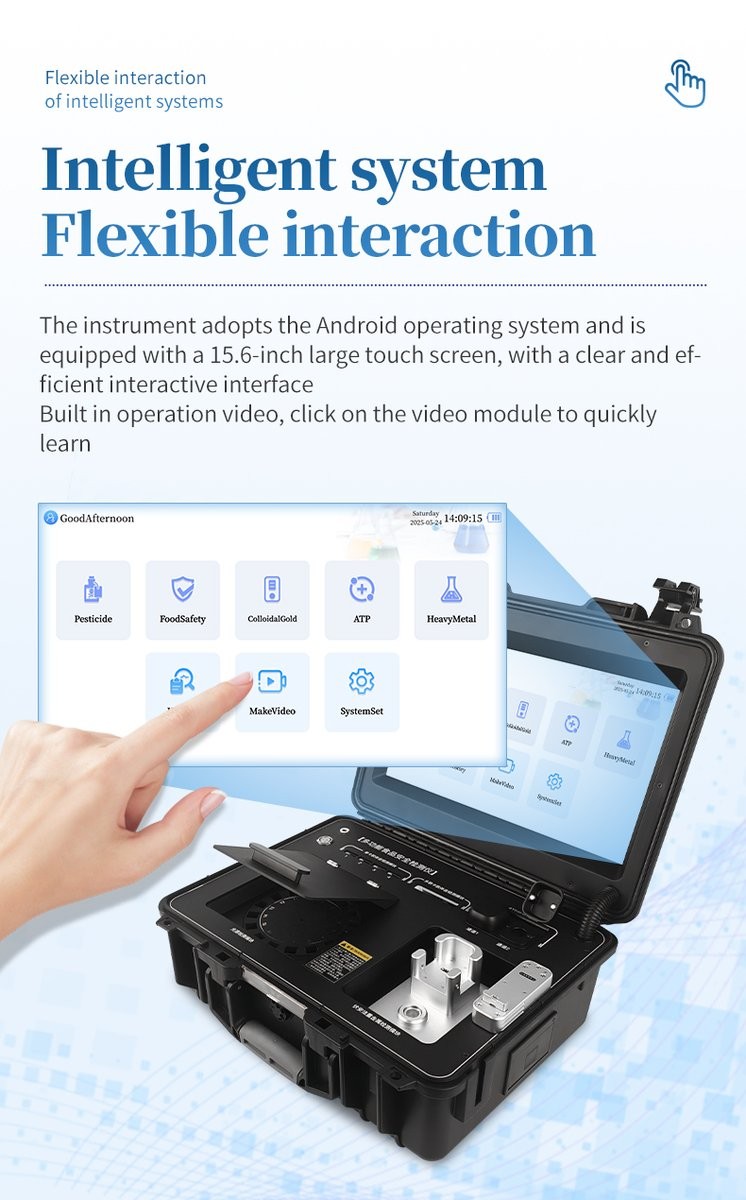

- Android 10 System with 15.6-Inch Display: Delivers tablet-style navigation, bilingual interface switching, extensive food matrix databases, and integrated video tutorials demonstrating standard operational procedures.

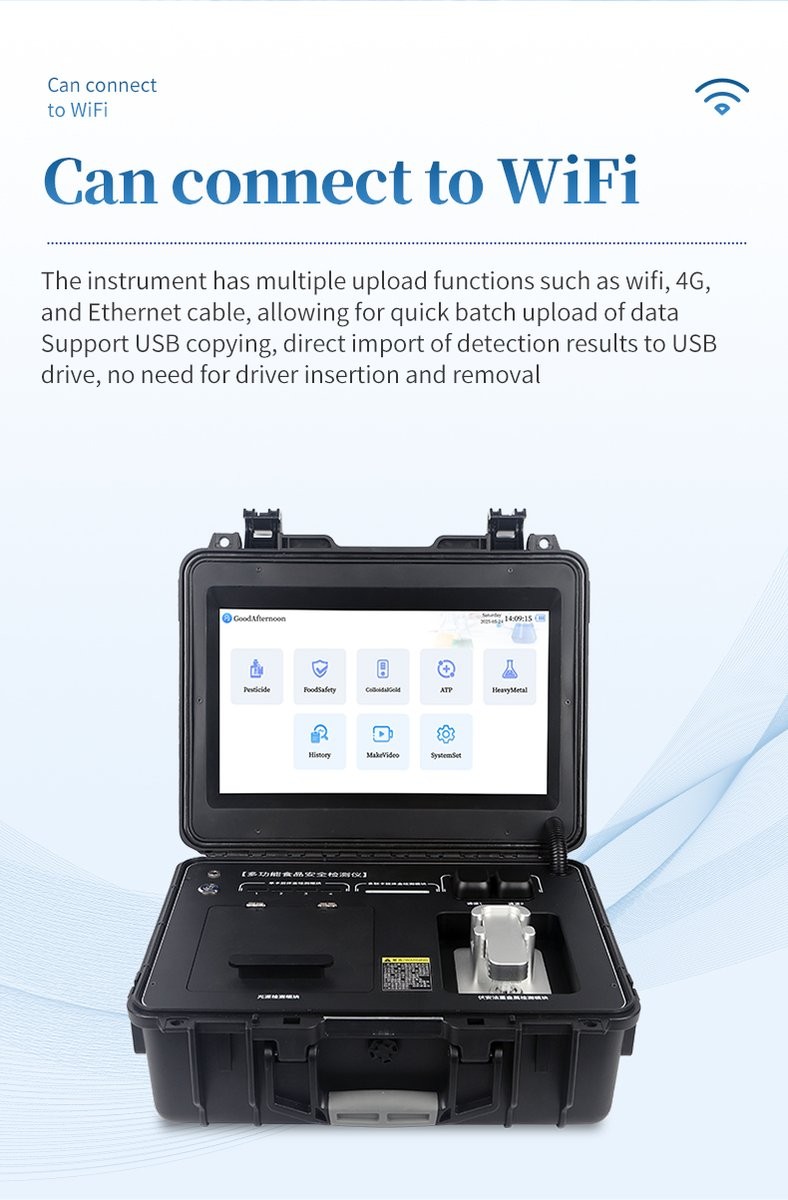

- Wireless Cloud Data Transmission: Built-in 4G LTE, Wi-Fi, Ethernet, and USB connectivity automatically upload test results to supervision platforms for real-time compliance tracking.
- Field Independence and Dual Power Reliability: Features an internal 20Ah lithium battery providing ≥ 5 hours of continuous operation, alongside direct 12V DC vehicle cigarette lighter powering.
- Automated Standard Verification: Automatically checks measured contaminant levels against integrated national food safety limit standards, flagging non-compliant samples immediately.
Applications and Inspection Scenarios
- Market Supervision and Law Enforcement: On-site surprise inspections, wholesale produce verification, and mobile testing vehicle deployments at supermarkets and wet markets.
- Agricultural Hubs and Grain Depots: Rapid pre-harvest and post-harvest testing for pesticide residues in produce and mycotoxins (aflatoxin B1, vomitoxin, zearalenone) in stored grain.
- Livestock Breeding and Slaughterhouses: Screening live animal urine and fresh tissue for beta-agonists (clenbuterol, ractopamine) and antibiotic residues in meat products.
- Aquaculture and Cold-Chain Logistics: Rapid trace detection of prohibited chemicals such as malachite green, chloramphenicol, and nitrofuran metabolites in fish and shrimp.
- Food and Meat Processing Facilities: Raw material intake inspection and quality verification for heavy metals, food preservatives, artificial colorings, and illegal adulterants.
- Institutional Canteens and Catering: Daily hygiene monitoring in central kitchens, university dining halls, and catering operations via ATP bioluminescent utensil testing.
- Judicial and Public Health Investigations: Immediate evidentiary testing of suspected counterfeit or adulterated food products in consumer protection investigations.
- Inspection, Quarantine, and Disease Control: Screening for livestock disease markers (PRRSV, swine fever, pseudorabies, avian influenza) in disease prevention programs.

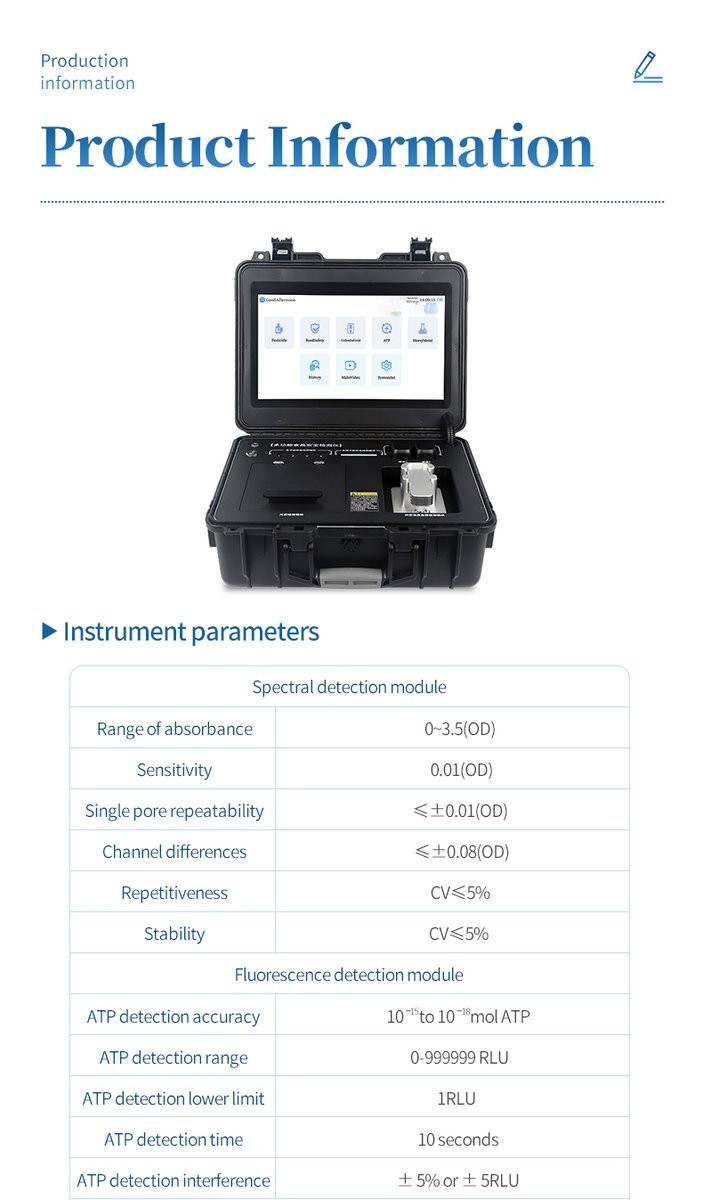

Technical Specifications
| Subsystem / Parameter | Performance Specification and Operational Limits |
|---|---|
| Spectrophotometric Detection Module | |
| Optical Carousel Architecture | Patented 16-channel rotating colorimetric carousel (ZL 2018 2 1777724.7) |
| Light Source Wavelengths | Six cold light sources: 420, 470, 520, 560, 620, 700 nm |
| Absorbance Measurement Range | 0.000 to 3.500 OD; Sensitivity: 0.010 OD |
| Repeatability and Uniformity | Single well ≤ ±0.010 OD; Channel difference ≤ ±0.080 OD; CV ≤ 5% |
| Colloidal Gold Immunoassay Module | |
| Channel Layout | 4 single-card slots + 1 multi-card testing bay (compatible with 2/3/4-in-1 cards) |
| Imaging and Recognition | High-resolution camera, automated C/T line identification, quantitative CT curve plotting |
| Fluorescence ATP Hygiene Detection Module | |
| Channels and Sensitivity | 2 independent channels; Sensitivity: 10-15 to 10-18 mol ATP |
| Dynamic Range and Speed | 0 to 999,999 RLU; Lower limit: 1 RLU; Test time: 10 seconds; Interference: ±5% or ±5 RLU |

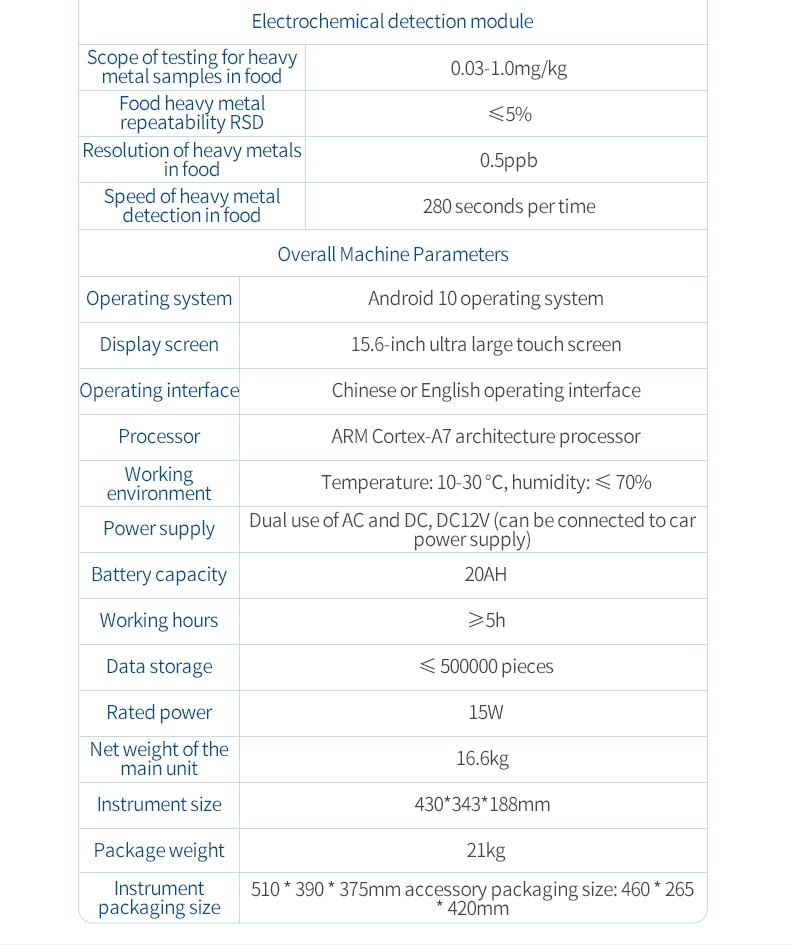

| Electrochemical Trace Heavy Metal Module | |
| Analytical Principle | Anodic stripping voltammetry on disposable three-electrode sensors |
| Heavy Metal Range & Resolution | 0.03 to 1.00 mg/kg; Resolution: 0.5 ppb; RSD ≤ 5%; Test time: ~280 s/test |
| System Hardware, Power, and Housing Parameters | |
| Processor and OS | ARM Cortex-A7 architecture processor; Android 10 OS (English/Chinese) |
| Display and Storage | 15.6-inch capacitive multi-touchscreen; Storage: ≤ 500,000 inspection records |
| Networking and Printer | 4G LTE, Wi-Fi, RJ45 Ethernet, USB 2.0; Built-in high-speed thermal printer |
| Power Operation | AC 100-240V adapter; DC 12V vehicle input; Built-in 20Ah lithium battery (≥ 5h runtime); Power: 15W |
| Operating Environment | Temperature: 10 °C to 30 °C; Humidity: ≤ 70% RH |
| Dimensions and Weight | Main unit: 430 × 343 × 188 mm; Net weight: 16.6 kg; Packaging gross weight: 21 kg |
Standard Configuration and Field Equipment
- HM-GS800 Integrated Workstation: Ruggedized field instrument case housing the 15.6-inch display, quad-module analysis platform, and integrated printer.
- Optical & Electrochemical Labware: Precision colorimetric cuvettes, reaction tube holder, micropipette, and electrochemical sensor socket.
- Power Supplies: Mains AC charging adapter and heavy-duty 12V DC automotive vehicle connection cable.
- Rechargeable Battery: Built-in 20Ah lithium-ion battery system engineered for field mobility.
- Printing & Storage Media: High-speed thermal paper rolls and USB flash storage drive.
- Compliance Documentation: Quality certificate, comprehensive bilingual operation manual, and warranty card.
- Reagent Consumables: Application-specific rapid test reagent kits and colloidal gold cassettes (customized per surveillance mandate).
Field Operation and Regulatory Connectivity
- Rapid Field Deployment: Opening the case lid powers on the unit, completing automated hardware self-checks and optical baseline zeroing in seconds.
- Multimedia Standard Operating Procedures: Built-in instructional videos guide the operator through matrix extraction and reagent addition for each analyte.
- Automated Multi-Analyte Evaluation: The system measures samples, calculates concentrations, and compares results against national regulatory standards, generating clear pass or fail alerts.
- Real-Time Cloud Synchronization: Inspection data and test curves are uploaded automatically via 4G or Wi-Fi to municipal food safety cloud platforms for city-wide surveillance.
