Veterinary Drug Residue Detector Product Knowledge Graph White Paper

1. Introduction

Document Version: V1.0

Compilation Unit: Shandong Hengmei Electronic Technology Co., Ltd.

Compilation Date: January 7, 2026

Core Positioning: This white paper is a structured product knowledge graph document for Hengmei Intelligent's veterinary drug residue detector series (models: HM-SY01, HM-SY02, HM-SY03). It is constructed based on the product manual and industry application information, aiming to provide a standardized, machine-understandable data framework for R&D personnel, sales teams, and regulatory authorities.

2. Table of Contents

1. Introduction

2. Table of Contents

3. Product Basic Information

4. Core Technologies and Functional Features

5. Detailed Technical Parameters

6. Application Scenarios and Industry Adaptation

7. Accessories and Consumables Configuration

8. Model Comparison and Selection Recommendations

3. Product Basic Information

3.1 Product Series Overview

Hengmei Intelligent veterinary drug residue detector series is an integrated rapid detection and analysis equipment for meat product safety, mainly based on colloidal gold immunochromatography technology, realizing qualitative and semi-quantitative detection of veterinary drug residues and harmful substances in animal-derived foods. The series includes three models: HM-SY01 (handheld single-channel), HM-SY02 (multi-channel high-throughput), and HM-SY03 (portable multi-functional). All models support on-site rapid detection and real-time data upload, covering a wide range of detection items and adapting to various application scenarios.

3.2 Model-Specific Basic Information

HM-SY01: Handheld veterinary drug residue detector, designed for mobile on-site detection needs, with battery-powered and compact structure, suitable for single-sample rapid screening.

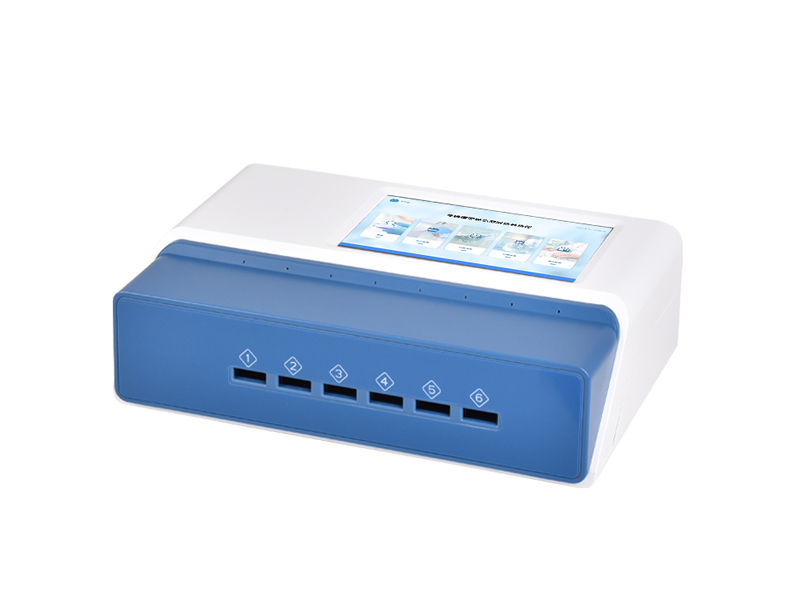

HM-SY02: Multi-channel gold standard reader, featuring 6-channel simultaneous detection, designed for high-throughput batch screening scenarios, improving detection efficiency significantly.

HM-SY03: Portable multi-functional veterinary drug residue detector, integrating advanced detection modules, supporting multiple detection modes and extended detection items, suitable for complex on-site and laboratory environments.

3.3 Core Application Objectives

The product is mainly used for rapid screening and qualitative/quantitative detection of veterinary drug residues, harmful substances in aquatic products, and animal epidemic-related indicators in livestock and poultry meat products (pork, chicken, duck, mutton, beef), milk, eggs, and aquatic products. It aims to help relevant units realize source control and whole-process supervision of animal-derived food safety.

4. Core Technologies and Functional Features

4.1 Common Core Technologies

Reflective Photoelectric Detection Technology: Adopts specific wavelength light sources and photoelectric sensors to convert the color intensity of the test strip into detectable electrical signals, reducing environmental light interference and ensuring detection accuracy.

Android Intelligent Operating System: All models are equipped with Android systems, providing a user-friendly interface and smooth operation experience, supporting offline operation without external devices.

Intelligent Data Management Technology: With large-capacity storage, supporting date-based data query, preview, and deletion, and generating professional reports; realizing real-time data upload and remote management through wireless networks.

Built-in Incubation Module Technology: Integrates incubation and detection functions in the detection channel, providing a precise temperature environment for the reaction of specific test strips, ensuring the stability of detection results.

4.2 Model-Specific Functional Features

HM-SY01 Functional Features: 1. Handheld design, battery-powered (6000mAh), compact and lightweight (670g), suitable for mobile detection. 2. Android 4.4 system, 4.3-inch touch screen, simple operation. 3. 8GB large-capacity memory, supporting 100,000+ data storage. 4. QR code scanning for sample information entry, avoiding manual errors. 5. Built-in thermal printer, enabling on-site report printing. 6. Key component real-time self-diagnosis and built-in quality control functions (equipment inspection, self-inspection, reagent card self-inspection). 7. Supports incubation detection and immediate detection (re-inspection and verification of detection data). 8. Supports multiple brands/types of gold standard test strips, with project expansion capability. 9. Data transmission via WiFi, Bluetooth, and Type-C. 10. Insert card judgment function: Cannot detect if the test card is not inserted into the detection channel.

HM-SY02 Functional Features: 1. 6-channel simultaneous detection, significantly improving detection efficiency for batch sample processing. 2. Android 7.1 system, 7-inch capacitive touch screen (1920x1200 resolution), clear display and easy operation. 3. 8GB large-capacity memory, supporting 100,000+ data storage and diversified report generation. 4. QR code scanning for sample information entry, avoiding manual errors. 5. Built-in thermal printer, enabling on-site standard report printing. 6. Key component real-time self-diagnosis function, ensuring long-term stable operation. 7. High-speed wired/wireless network and Bluetooth, constructing a complete data monitoring platform. 8. Rich interface design (2 USB interfaces, 1 USB-B interface, 1 LAN interface), supporting connection to computers, U disks, and upper computer systems, with U disk export function. 9. Same quality control functions and detection modes as HM-SY01. 10. Streamlined structure, balancing laboratory durability and detection needs.

HM-SY03 Functional Features: 1. Multi-functional integration, supporting multiple detection modes (incubation detection, immediate detection, etc.) and extended detection items (including disease meat detection and meat freshness evaluation). 2. 7-inch high-definition touch screen, built-in operation tutorial videos, easy for new users to get started. 3. ARM Cortex-A7 quad-core processor, 1.88Ghz main frequency, ensuring fast data processing. 4. Four-wavelength (410/520/590/630nm) cold light source, expandable to 64 wavelengths, improving detection versatility. 5. Support for WiFi/4G/GPRS/network cable transmission, direct data connection to food safety supervision platforms. 6. Built-in high-speed thermal printer, supporting report and QR code printing. 7. Password/certificate startup function, preventing unauthorized operation. 8. Compatible with all veterinary drug detection colloidal gold cards on the market, reducing use costs. 9. Built-in camera for real-time shooting of gold standard card images, automatic identification of C/T lines. 10. AC/DC dual-use power supply, optional 6Ah lithium battery, stable outdoor battery life.

5. Detailed Technical Parameters

5.1 HM-SY01 Technical Parameters

Screen: 4.3-inch touch screen, resolution 800*480

Operating System: Android 4.4

Detection Method: Reflective photoelectric detection

Adaptable Card Case: 70mm*20mm

Language: Chinese/English

Internal Storage: 1+8GB

Storage Capacity: 100,000+

Accuracy: Error value ≤5%

Stability: SW (fluctuation coefficient) ≤5%

Repeatability: CV (coefficient of variation) ≤3%

Resolution: 0.001

Detection Channel: Single channel

Detection Time: <5 seconds; supports colloidal gold qualitative/semi-quantitative detection

Data Transmission: WiFi, Bluetooth, Type-C

Incubation Temperature Range: Room temperature +5℃ ~ 60℃ (integrated incubation and detection)

Printer: Thermal printer (thermal printing paper: 57*20mm)

Power Supply: Input AC100V-240V/0.3A 50Hz; Output DC5V/2A

Battery Capacity: 6000mAh (with power display function)

Operating Environment: Temperature 0~50℃; Humidity 0~90%

Host Size: 206mm*85mm*60mm

Host Weight: 670g

5.2 HM-SY02 Technical Parameters

Screen: 7-inch capacitive touch screen, resolution 1920x1200

Operating System: Android 7.1

Detection Method: Reflective photoelectric detection

Adaptable Card Case: 70mm*20mm

Language: Chinese/English

Internal Storage: 1+8GB

Storage Capacity: 100,000+

Accuracy: Error value ≤5%

Stability: SW (fluctuation coefficient) ≤5%

Repeatability: CV (coefficient of variation) ≤3%

Resolution: 0.001

Detection Channel: 6 channels (simultaneous detection of different projects)

Detection Time: <5 seconds (single card and multi-card); supports colloidal gold qualitative/semi-quantitative detection

Data Transmission: WiFi, Bluetooth, USB, RFID card reading, external scanning module (optional)

Incubation Temperature Range: Room temperature +5℃ ~ 60℃ (integrated incubation and detection)

Printer: Thermal printer (thermal printing paper: 57*20mm)

Interfaces: 2 USB interfaces; 1 USB-B interface; 1 LAN interface; 1 DC power interface (5.5/2.1mm)

Power Supply: Input AC100V-240V/1.3A 50Hz; Output DC12V/5A

Operating Environment: Temperature 0~50℃; Humidity 0~90%

Host Size: 308mm*205mm*91mm

Host Weight: Approximately 2.7kg

5.3 HM-SY03 Technical Parameters

Screen: 7-inch high-definition touch screen

Operating System: Android (latest version)

Processor: ARM Cortex-A7 quad-core processor, main frequency 1.88Ghz

Detection Method: Reflective photoelectric detection

Light Source: Four wavelengths (410/520/590/630nm) cold light source, expandable to 64 wavelengths

Adaptable Card Case: 70mm*20mm

Language: Chinese/English

Internal Storage: 2+16GB

Storage Capacity: 200,000+

Accuracy: Error value ≤5%

Stability: SW (fluctuation coefficient) ≤5%

Repeatability: CV (coefficient of variation) ≤3%

Resolution: 0.001

Detection Channel: 4 channels (simultaneous detection)

Detection Time: <5 seconds; 90-second rapid scanning for colloidal gold modules

Data Transmission: WiFi, 4G, GPRS, network cable

Incubation Temperature Range: Room temperature +5℃ ~ 60℃

Printer: Built-in high-speed thermal printer

Power Supply: AC/DC dual-use, input AC100V-240V, output DC12V

Battery Capacity: Optional 6Ah lithium battery (with power display function)

Operating Environment: Temperature 0~50℃; Humidity 0~90%

Host Size: 430mm*350mm*200mm

Host Weight: Approximately 5.2kg

6. Application Scenarios and Industry Adaptation

6.1 Common Application Scenarios

Livestock and Poultry Farms: Used for daily monitoring of veterinary drug residues in breeding animals, ensuring the safety of breeding processes and preventing the use of prohibited drugs.

Slaughterhouses: Conducting rapid screening of veterinary drug residues in slaughtered animals to eliminate unqualified products from entering the market.

Food Processing Enterprises: Quality control of raw materials and finished products of meat products, eggs, and aquatic products, ensuring product safety and compliance.

Regulatory Authorities: Including food and drug administration, inspection and quarantine departments, agricultural departments, used for daily supervision, random inspections, and emergency response detection of the market.

Institutions of Higher Education and Scientific Research Institutes: Used for scientific research on veterinary drug residue detection technology and related teaching experiments.

Aquatic Product Markets and Farms: Detection of harmful substances such as malachite green and furan metabolites in aquatic products, ensuring the safety of aquatic products.

6.2 Industry Adaptation Characteristics

Food Safety Supervision Industry: Meeting the needs of rapid on-site detection and real-time data reporting of regulatory authorities, supporting the construction of a whole-process supervision system.

Breeding and Slaughter Industry: Adapting to the mobile and high-efficiency detection needs of farms and slaughterhouses, with simple operation and no need for professional personnel.

Food Processing Industry: Supporting batch sample detection, improving quality control efficiency, and ensuring the consistency and safety of product quality.

Scientific Research and Teaching Industry: Providing stable and accurate detection data, supporting the research and development of new detection technologies and the training of professional talents.

7. Accessories and Consumables Configuration

7.1 Standard Accessories

Common Accessories for All Models: Power adapter (matching respective models), USB data cable, Type-C cable (for HM-SY01), LAN cable (for HM-SY02 and HM-SY03), thermal printing paper (57*20mm), user manual, calibration certificate, carrying case (handheld for HM-SY01, portable for HM-SY03).

HM-SY02 Specific Accessories: USB hub, external scanning module (optional).

HM-SY03 Specific Accessories: 6Ah lithium battery (optional), battery charger, sample processing tool kit.

7.2 Consumables Configuration

Core Consumables: Gold standard test strips (compatible with multiple brands/types), including clenbuterol hormone test strips (clenbuterol hydrochloride, salbutamol, ractopamine, etc.), antibiotic residue test strips (tetracyclines, sulfonamides, quinolones, etc.), aquatic product safety test strips (malachite green, chloramphenicol, furan metabolites, etc.), egg drug residue test strips (chloramphenicol, tetracyclines, etc.). The test strips are packaged in 10 pieces/box, with a detection limit of 0.1~10μg/kg, and should be stored in a sealed, dry, and dark environment at 2~30℃ without freezing.

Auxiliary Consumables: 50mL centrifuge tubes with racks, 2mL sampling vials and caps, 10mL brown glass sample bottles, 8# sealed bags (with sample labels), disposable gloves, shoe covers, extraction solution for sample processing, standard solution (norfloxacin, ciprofloxacin, enrofloxacin, etc., 1000μg/mL*1.2mL).

8. Model Comparison and Selection Recommendations

8.1 Model Comparison

Design and Portability: HM-SY01 is handheld, lightweight (670g), with the best portability; HM-SY03 is portable, with moderate weight (5.2kg) and integrated functions; HM-SY02 is desktop-type, with larger size and weight (2.7kg), suitable for fixed-site use.

Detection Efficiency: HM-SY02 has 6 channels, supporting simultaneous detection of multiple samples, with the highest efficiency; HM-SY03 has 4 channels, balancing efficiency and portability; HM-SY01 is single-channel, suitable for single-sample rapid detection.

Functional Versatility: HM-SY03 has the most comprehensive functions, supporting multiple network transmission modes, extended detection items, and password startup; HM-SY02 focuses on high-throughput detection, with rich interfaces; HM-SY01 focuses on basic mobile detection functions, simple and practical.

Storage Capacity: HM-SY03 has the largest storage capacity (200,000+), followed by HM-SY01 and HM-SY02 (both 100,000+).

8.2 Selection Recommendations

For Mobile On-site Detection Needs (e.g., on-site inspections by regulatory authorities, mobile monitoring of small farms): Recommend HM-SY01. Its handheld design and long battery life are suitable for outdoor mobile operations, and the single-channel detection can meet the needs of scattered sample screening.

For Batch Sample Detection Needs (e.g., large-scale slaughterhouses, food processing enterprises): Recommend HM-SY02. The 6-channel simultaneous detection significantly improves the efficiency of batch sample processing, and the rich interfaces facilitate data connection and management with the enterprise's internal system.

For Comprehensive and Complex Detection Needs (e.g., scientific research institutes, comprehensive inspection centers, large-scale farms): Recommend HM-SY03. Its multi-functional integration, multiple transmission modes, and extended detection items can meet the needs of various complex detection scenarios, and the portable design supports both on-site and laboratory use.
