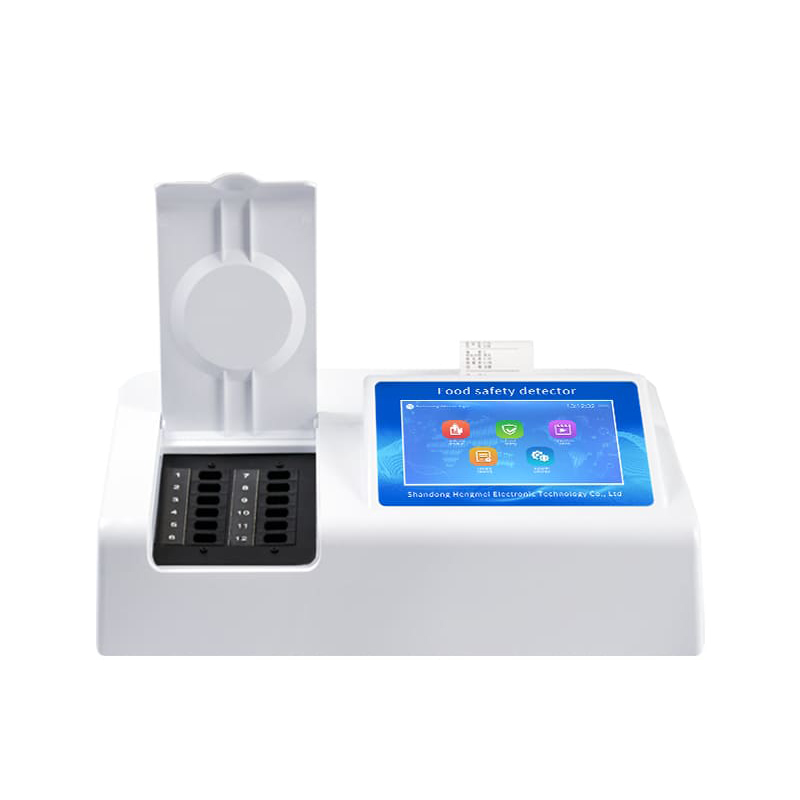

Acesulfame Tester

Product Introduction:

The Acesulfame tester can quickly detect the content of Ansemei in candied fruits, jam, candies, bread, pastries, beverages, etc. Widely used in various testing units and other applications.

2、 Function Introduction:

1. The Android intelligent operating system adopts more efficient and user-friendly operation. The instrument has Ethernet connection, WiFi network upload, GPRS wireless remote transmission function, and can quickly upload data.

2. High degree of intelligence, the instrument has self checking function: it has power on self checking and zero adjustment functions, and automatic detection of repeatability function.

3. Detection channels: ≥ 12 detection channels, capable of testing multiple samples simultaneously. Each sample is controlled by a program to work independently without interfering with each other.

4. Display mode: ≥ 8-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

5. Equipped with a new generation embedded thermal printer, it can choose between manual printing or automatic printing. After the inspection is completed, the inspection report and QR code can be automatically printed.

6. The light source adopts imported ultra high brightness light-emitting diodes, which have high precision, strong stability, controllable light source, can turn off unused light sources, and lower power consumption.

7. Designed with USB 2.0 interface, it is convenient for data storage and movement, and can be directly connected to a computer at any time. The instrument can also be controlled by a computer. Implement data query, browsing, analysis, statistics, printing, etc.

8. Sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

9. The instrument has its own protection function, which can set a username and password to prevent non staff operations.

10. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

11. The instrument has the functions of recalibration, locking, and factory reset.

12. The result judgment line can be modified, the reference value calibration value can be saved, and data will not be lost when power is turned off.

Main Parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4-core processor, with a main frequency of 1.88GHz, faster operation speed and stronger stability.

2. DC 12V power supply, can be connected to car power supply, can be equipped with 6ah large capacity rechargeable lithium battery, convenient for outdoor mobile testing.

3. Four wavelength cold light source, each channel is equipped with 410, 520, 590, 630nm wavelength light sources, and comes standard with advanced optical path switching devices. The patented optical path switching function can achieve up to 64 wavelengths, and all detection items can be detected simultaneously in all channels.

4. Automatic adjustment and calibration of light source brightness

5. Intelligent constant current and voltage regulation, automatic calibration of light intensity, no temperature drift phenomenon in the light source during long-term continuous operation..

6. Built in new national limited edition standards, on-site comparison with measured results, and continuous updating of standards.

7. Continuous injection and testing

8. Sample numbers are automatically accumulated.

9. The testing items can be expanded.

10. The test results can be printed and uploaded in batches.

11. The data can be uploaded wirelessly to the platform and exported as an Excel spreadsheet.

12. Storage capacity for 200000 test results

13. Simultaneously supports USB copying, standard USB interface, and driver free plugging and unplugging.

14. Configurable large capacity lithium battery, firmware upgradable

15. Instrument size; 42×31×20cm;

16. Net weight of the instrument: 3.6kg;

Technical Parameters:

1. Accuracy error: ± 3%

2. Linear error: ± 5 ‰

3. Stability: ± 0.001A/hr

4. Wavelength accuracy:<2.0nm

5. Absorption range: 0.000~4.00 ABS

6. Data storage of 10000 records

7. Sample testing time: ≤ 3 minutes
