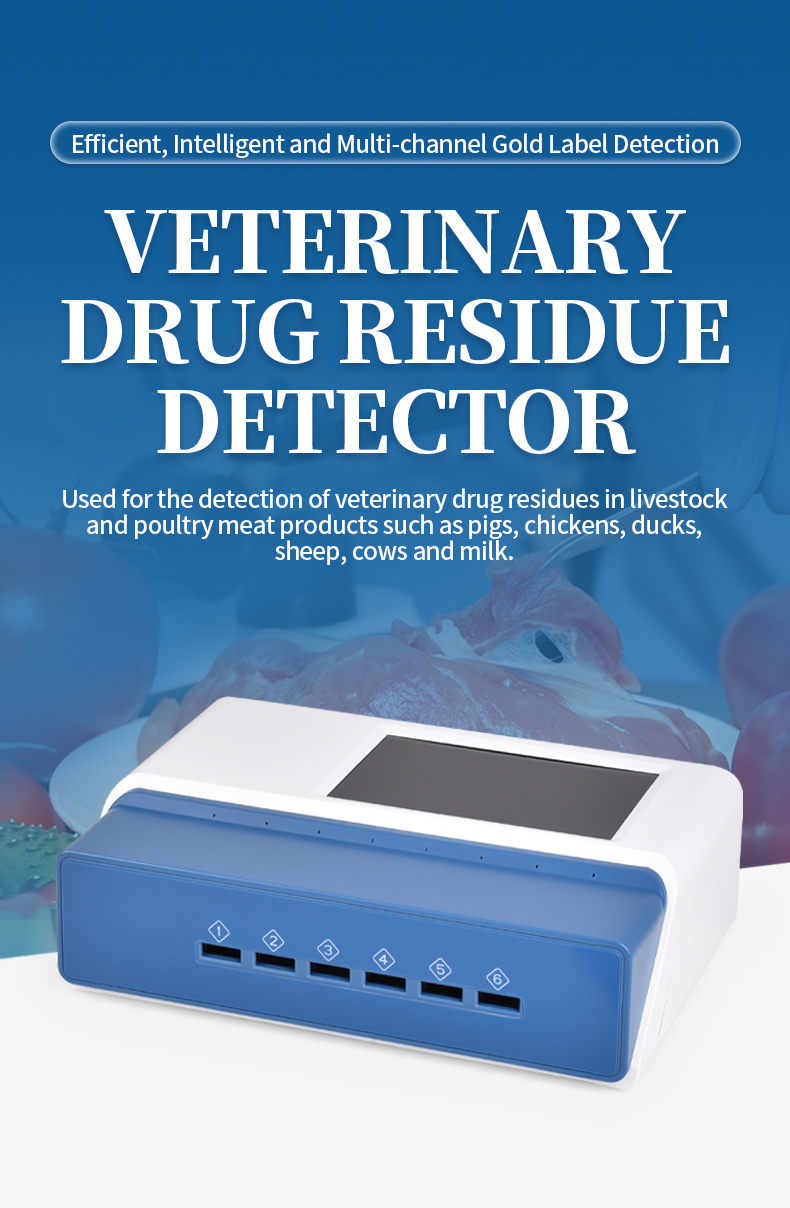

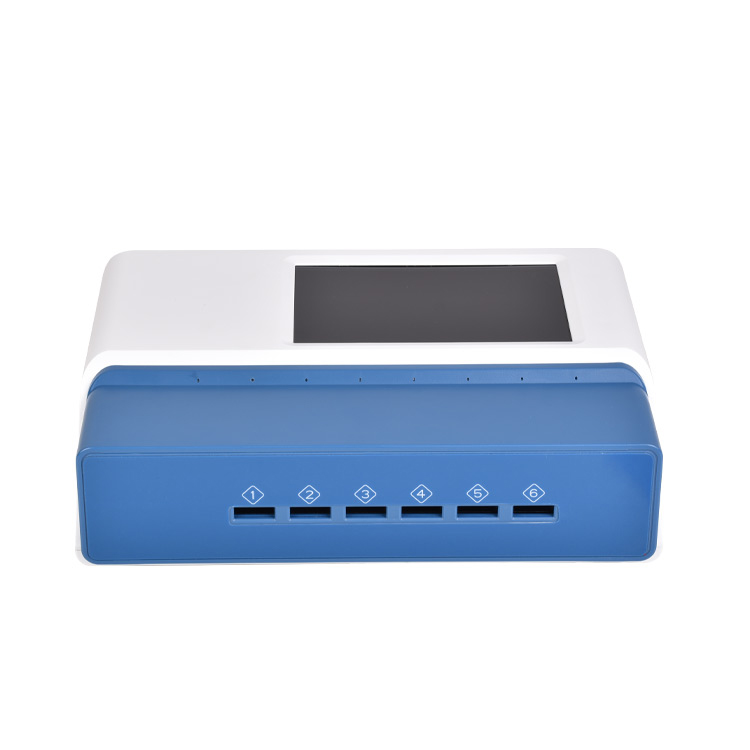

Veterinary Drug Residue Detector

Product Introduction:

The veterinary drug residue detector is suitable for on-site rapid screening and qualitative and quantitative detection of veterinary drug residues in livestock and poultry meat products such as pigs, chickens, ducks, sheep, cows, and milk, including antibiotic residues, clenbuterol hormone residues, and toxic and harmful substances in aquatic products. This multifunctional veterinary drug residue detector is an integrated meat safety and rapid detection and analysis equipment, which can be widely used in animal husbandry farms, slaughterhouses, food and meat product deep processing enterprises, food and drug supervision bureaus, inspection and quarantine departments, health departments, higher education institutions, research institutes, agricultural departments and other units.

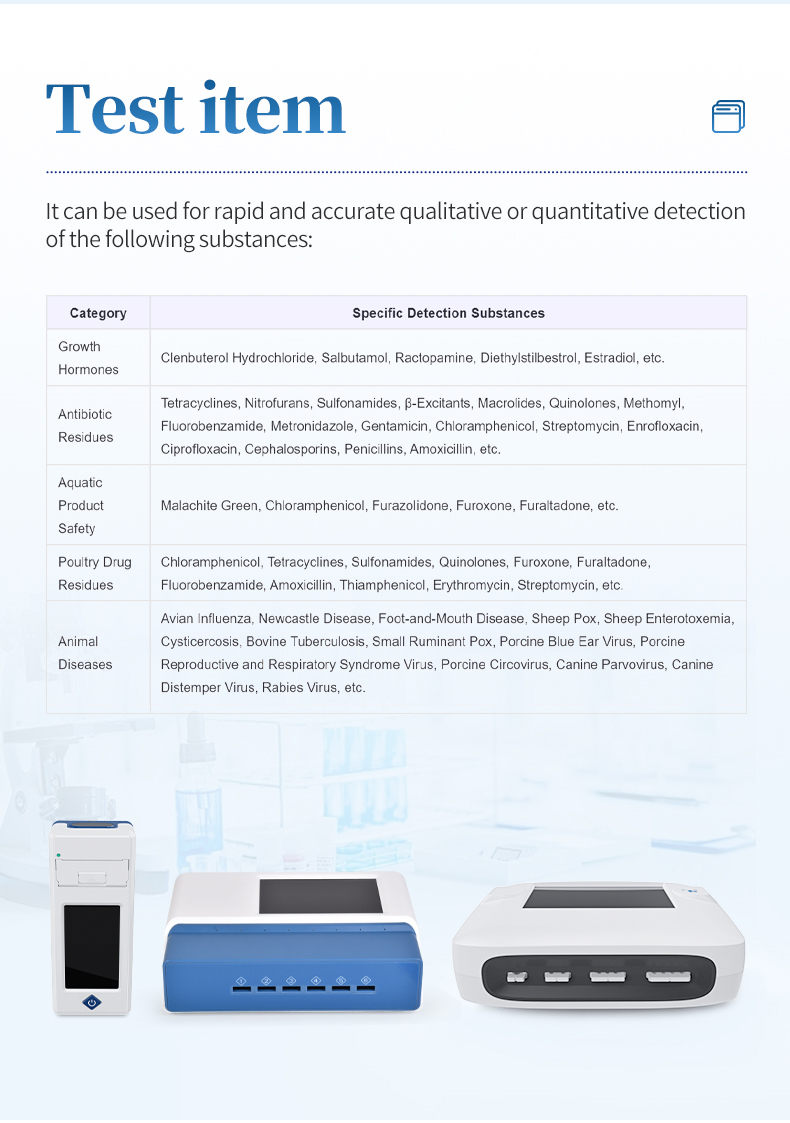

Testing Items:

1. Clenbuterol hormone: clenbuterol hydrochloride, salbutamol, ractopamine, estradiol, quinoxaline, etc

2. Antibiotic residues: Tetracyclines, nitrofurans, sulfonamides, beta agonists, saxophones, sulfonamides, quinolones, methicillin, florfenicol, amantadine, tilmicosin, gentamicin, lincomycin, streptomycin, enrofloxacin, ciprofloxacin, cefradine, penicillin, amoxicillin, etc

3. Aquatic product safety categories: Malachite Green, Chloramphenicol, Nitrofurazone, Furutanone, Furazolidone, etc

4. Egg drug residues include chloramphenicol, tetracycline, sulfonamides, quinolones, furacilin, furanone, nitrofuran, furazolidone, florfenicol, amoxicillin, cephalosporin, erythromycin, streptomycin, etc

5. Animal epidemics: avian influenza, newcastle disease, foot and mouth disease of cattle and sheep, tuberculosis of cattle and sheep, hydatid disease of cattle and sheep, brucellosis of cattle and sheep, small ruminants, porcine blue ear virus, swine fever virus, swine pseudorabies virus, porcine parvovirus, porcine circovirus, canine parvovirus, canine distemper virus, canine rabies virus, etc

Product Features:

1. High precision optical system: using specific wavelength light sources (such as LEDs) and photoelectric sensors to reduce environmental light interference.

2. Quick detection: Complete readings within 3-5 seconds and support batch sample analysis.

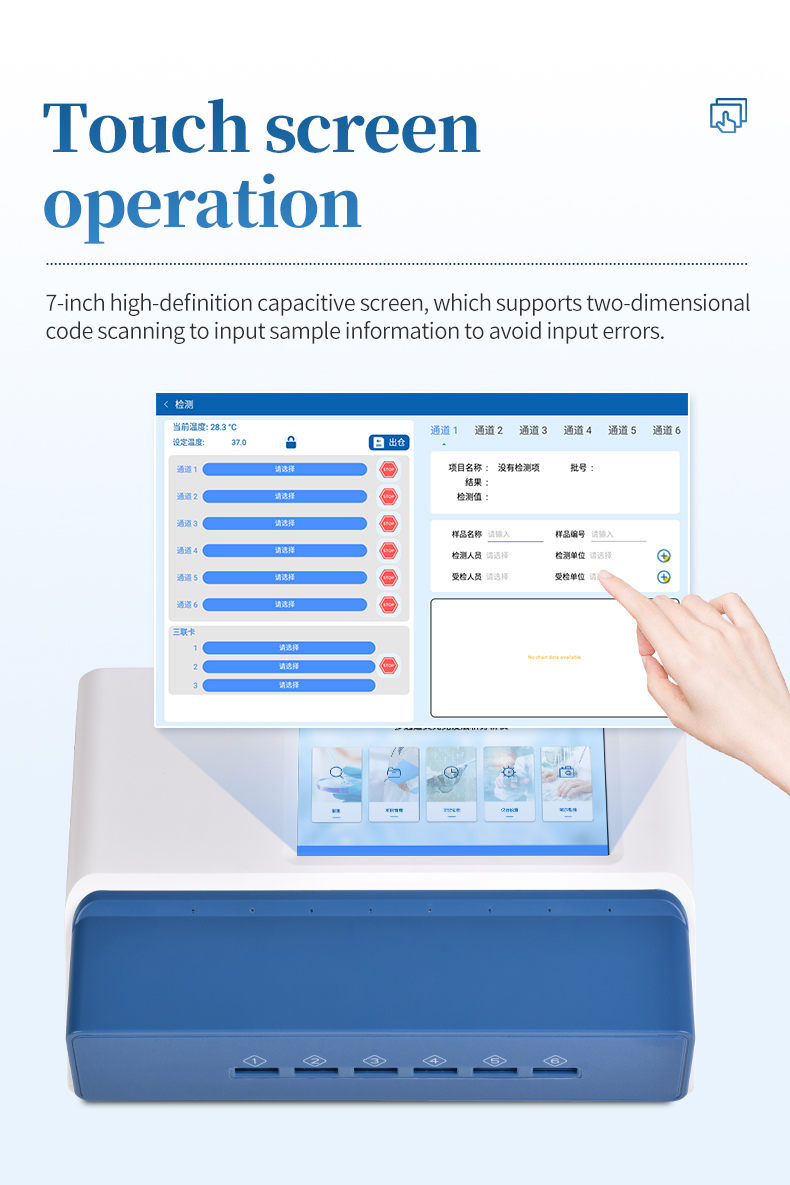

3. Intelligent operation: touch screen interface, automatically saves data and generates reports.

4. Portable design: Lightweight and portable, supports battery power supply, suitable for on-site testing.

5. Strong compatibility: Supports multiple brands/types of gold label test strips.

6. Quality inspection: Built in quality control function, and supports scanning QR codes to enter sample information, avoiding manual errors

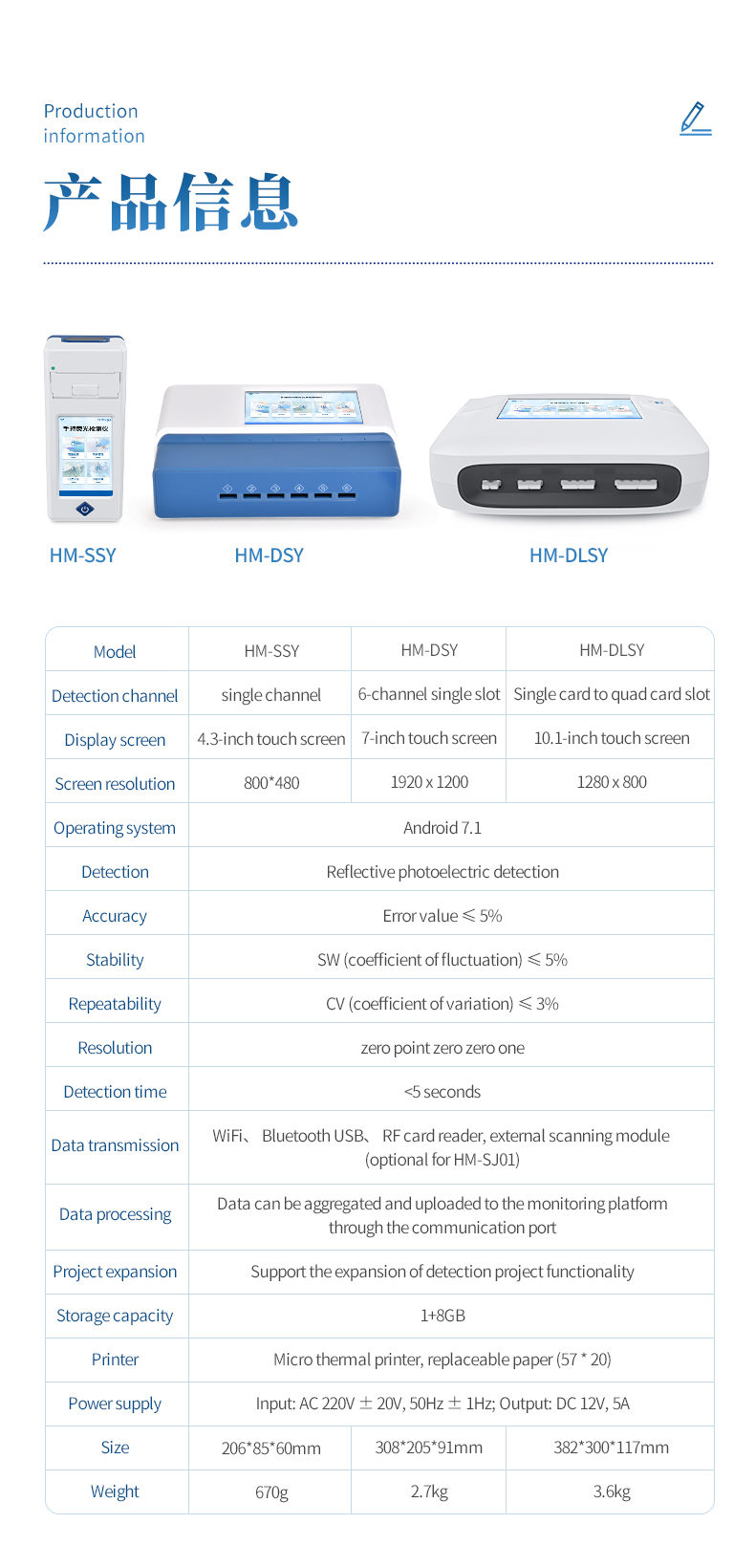

Technical Parameter:

1. Screen: 4.3-inch touch screen, resolution: 800 * 480, internal storage: 1+8GB

2. Operating System: Android 4.4

3. Detection method: Reflective photoelectric detection

4. Compatible card case: 70mm * 20mm

5. Language: Chinese/English

6. Storage quantity: 100000+

7. Accuracy: Error value ≤ 5%

8. Stability: SW (fluctuation coefficient) ≤ 5%

9. Repeatability: CV (coefficient of variation) ≤ 3%

10. Resolution: 0.001

11. Detection channel: single channel

12. Detection time:<5 seconds; Can perform colloidal gold qualitative/semi quantitative detection on samples

13. Built in quality control function, both the device and the detection card can self check; Built in card insertion detection function, unable to detect without a card

14. Testing methods: incubation testing, real-time testing (re examination and verification of testing data)

15. Detection curve: It can verify the detection of reagent cards to prevent misjudgment.

16. Test results: Report the test items, the results of the tested substance, the testing unit, the inspected unit, the inspector, the testing time, the detection limit, and other information that can be displayed on the touch screen and output through the instrument's built-in printer

17. Project management: Support testing project expansion functions

18. Interface settings: The title and footer information can be modified to flexibly display instrument information

19. Data transmission: WiFi, Bluetooth Type-C

20. Data processing: Data can be summarized and uploaded to the supervision platform through the communication port

21. Detection channel incubation and detection integrated, temperature range: room temperature+5 ℃~60 ℃

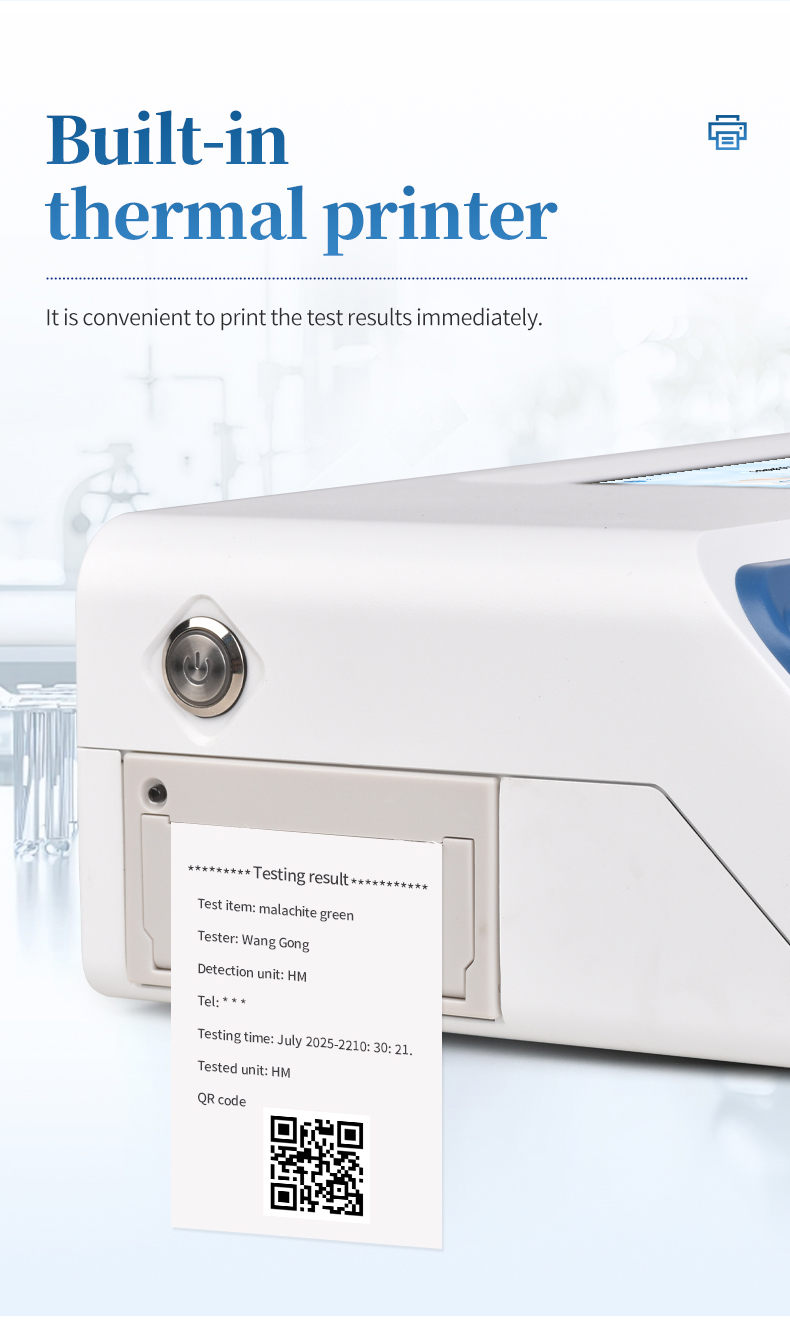

22. Printer: Thermal printer (thermal printing paper: 57 * 20mm)

23. Power supply: Input AC100V-240V/0.3A 50Hz; Output DC5V/2A

24. Battery capacity: 6000mAh

25. Display battery level

26. Operating environment: Temperature: 0~50 ℃; Humidity: 0~90%

27. Host size: 206mm * 85mm * 60mm

28. Host weight: 670g
