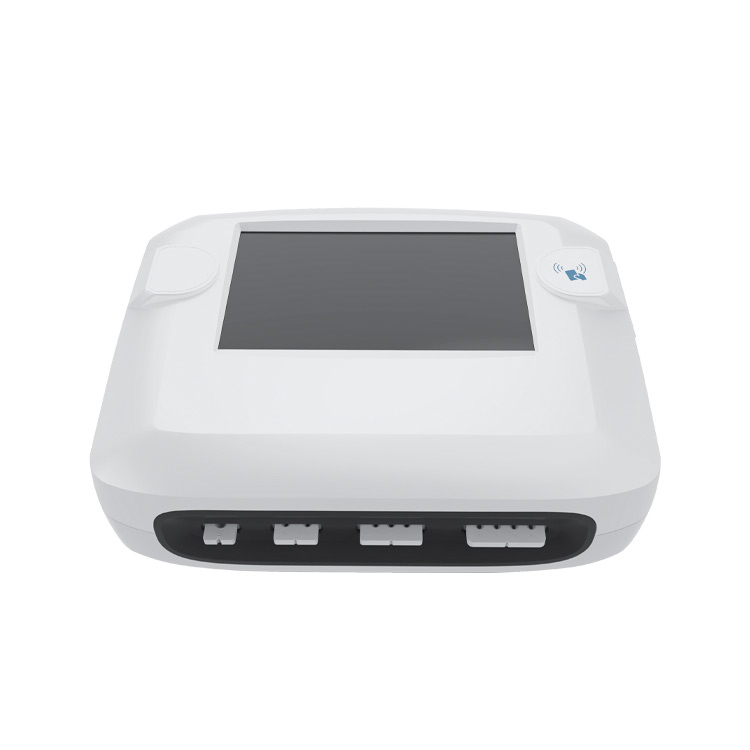

Meat Drug Residue Detector

Product Introduction

The meat drug residue detector is an efficient and high-throughput optical detection device designed specifically for multi-channel gold labeled test strips (such as colloidal gold immunochromatographic test strips). This instrument adopts multi-channel synchronous detection technology, which can simultaneously read multiple samples, greatly improving detection efficiency and suitable for batch screening and high-throughput detection needs. Widely used in fields such as medical diagnosis, food safety, scientific research experiments, etc.

Application Scope

1. Clenbuterol hormone: clenbuterol hydrochloride, salbutamol, ractopamine, estradiol, quinoxaline, etc

2. Antibiotic residues: Tetracyclines, nitrofurans, sulfonamides, beta agonists, saxophones, sulfonamides, quinolones, methicillin, florfenicol, amantadine, tilmicosin, gentamicin, lincomycin, streptomycin, enrofloxacin, ciprofloxacin, cefradine, penicillin, amoxicillin, etc

3. Aquatic product safety categories: Malachite Green, Chloramphenicol, Nitrofurazone, Furutanone, Furazolidone, etc

4. Egg drug residues include chloramphenicol, tetracycline, sulfonamides, quinolones, furacilin, furanone, nitrofuran, furazolidone, florfenicol, amoxicillin, cephalosporin, erythromycin, streptomycin, etc

5. Animal epidemics: avian influenza, newcastle disease, foot and mouth disease of cattle and sheep, tuberculosis of cattle and sheep, hydatid disease of cattle and sheep, brucellosis of cattle and sheep, small ruminants, porcine blue ear virus, swine fever virus, swine pseudorabies virus, porcine parvovirus, porcine circovirus, canine parvovirus, canine distemper virus, canine rabies virus, etc

Product Features

1. Multi channel synchronous detection: Supports 6 channels and can simultaneously detect multiple samples, improving efficiency.

2. High precision optical system: using multi wavelength LED light source (650nm) and high-sensitivity photoelectric sensor to reduce errors.

3. Intelligent operation: touch screen control, built-in quality control function; Support QR code scanning to input sample information, avoiding manual errors.

4. Data management: Large capacity storage (≥ 10000 sets of data), supporting USB/Wi Fi export; Can connect to cloud databases.

5. Quick detection: Complete multi sample reading in ≤ 5 seconds, suitable for high-throughput applications.

6. Portable and Durable: Available in desktop or portable design, some models support battery power supply; Dustproof and splash proof design, suitable for laboratory or on-site environments.

Technical Parameter

1. 7-inch capacitive touch screen, resolution: 1920 x 1200, internal storage: 1+8GB

2. Operating System: Android 7.1

3. Detection method: Reflective photoelectric detection

4. Accuracy: Error value ≤ 5%

5. Stability: SW (fluctuation coefficient) ≤ 5%

6. Repeatability: CV (coefficient of variation) ≤ 3%

7. Resolution: 0.001

8. Detection channel: 6-channel detection

9. Detection time:<5 seconds (single card and multi card); Colloidal gold qualitative/semi quantitative detection can be performed on the sample.

10. Test results: Report the test items, concentration of the tested substance, testing unit, inspected unit, inspector, testing time, detection limit, and other information that can be displayed on the touch screen and output through the instrument's built-in printer

11. Data transmission: WiFi, Bluetooth USB、 RF card reader, external scanning module

12. Data processing: Data can be summarized and uploaded to the supervision platform through the communication port

13. Project Expansion: Support detection project expansion function

14. Detection channel incubation and detection integrated, temperature range: room temperature+5 ℃~60 ℃

15. Printer: Thermal printer (thermal printing paper: 57 * 20mm)

16. Interface: USB interface: 2; USB-B interface: 1; LAN interface: 1; DC power interface: 5.5/2.1mm

17. Power supply: Input: AC100V-240V/1.3A 50Hz; Output: DC12V/5A

18. Host size: 308mm * 205mm * 91mm

19. Host weight: approximately 2.7kg
